| Nominal current, A | 6 |

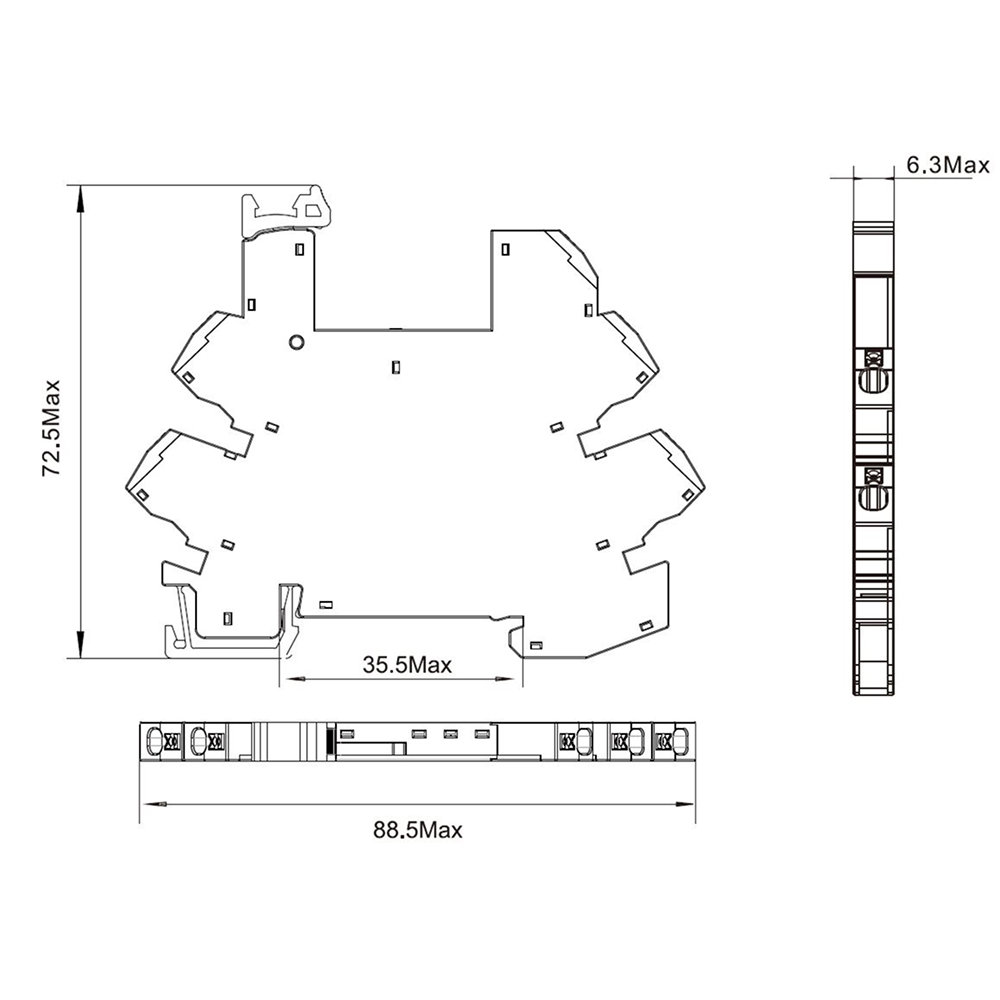

| Width, mm | 6.3 |
| Height, mm | 88.5 |
| Depth, mm | 72.5 |
| With detachable clamps | No |
| Drive, polarization | Polarized |
| Complete with socket | Yes |
| Type of electric connection | Spring clamp connection |
| Rated control supply voltage Us at AC 50HZ, V | 12...12 |
| Rated control supply voltage Us at DC, V | 12...12 |
| Degree of protection (IP) | IP50 |
| With LED indication | Yes |
| Voltage type for actuating | AC/DC |
| Number of contacts as change-over contact | 1 |
| Drive, switching attitude | Mono stable |
| With forced-guided contacts | No |
| Type of switch contact | Single contact |
| Rated control supply voltage Us at AC 60HZ, V | 12...12 |
