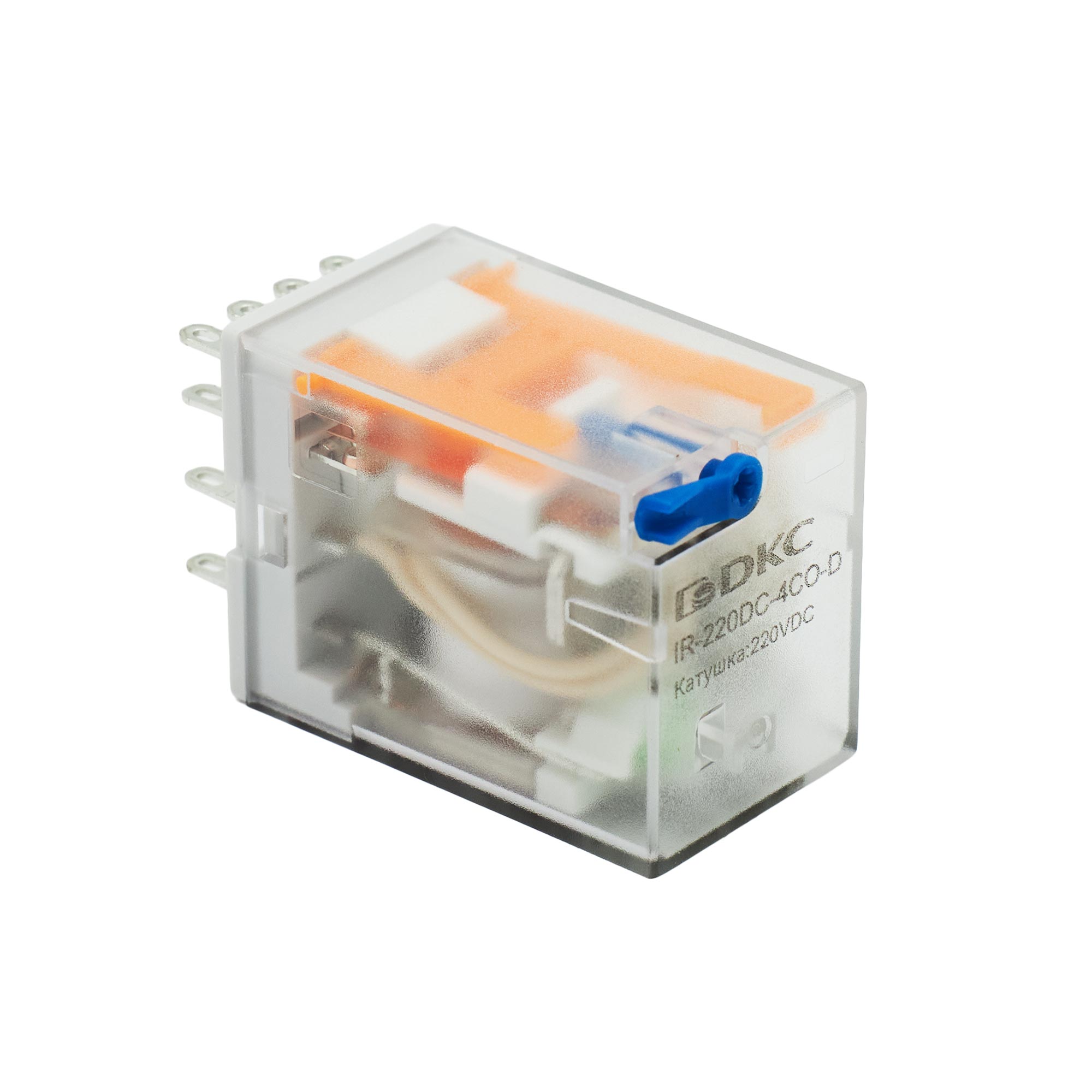

General purpose relay with normalized response factor 0,6UN, 4CO, 6Arated current, AgSnO₂, 220V DC voltage, option: LED+Diode+Test button

Code: IR-220DC-4CO-D

General purpose relay with normalized response factor 0,6UN, 4CO, 6Arated current, AgSnO₂, 220V DC voltage, option: LED+Diode+Test button

Code: IR-220DC-4CO-D
Nominal current, A 6

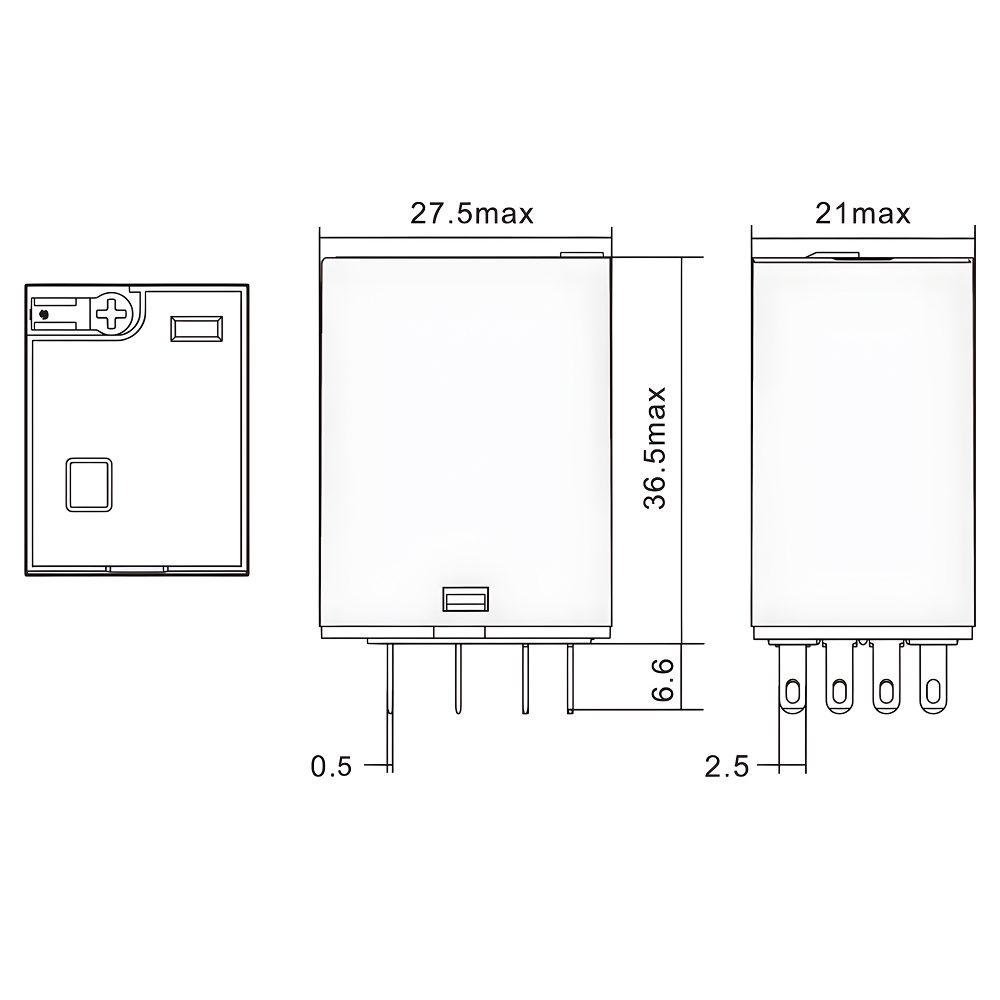

Width, mm 21
Height, mm 36.5
Depth, mm 27.5
With detachable clamps No
Drive, polarization Polarized
Drive, switching attitude Mono stable
With forced-guided contacts No
Type of switch contact Single contact
Complete with socket No
Type of electric connection Plug-in connection
Rated control supply voltage Us at DC, V 220...220
Degree of protection (IP) IP50
With LED indication Yes
Voltage type for actuating DC
Number of contacts as change-over contact 4
