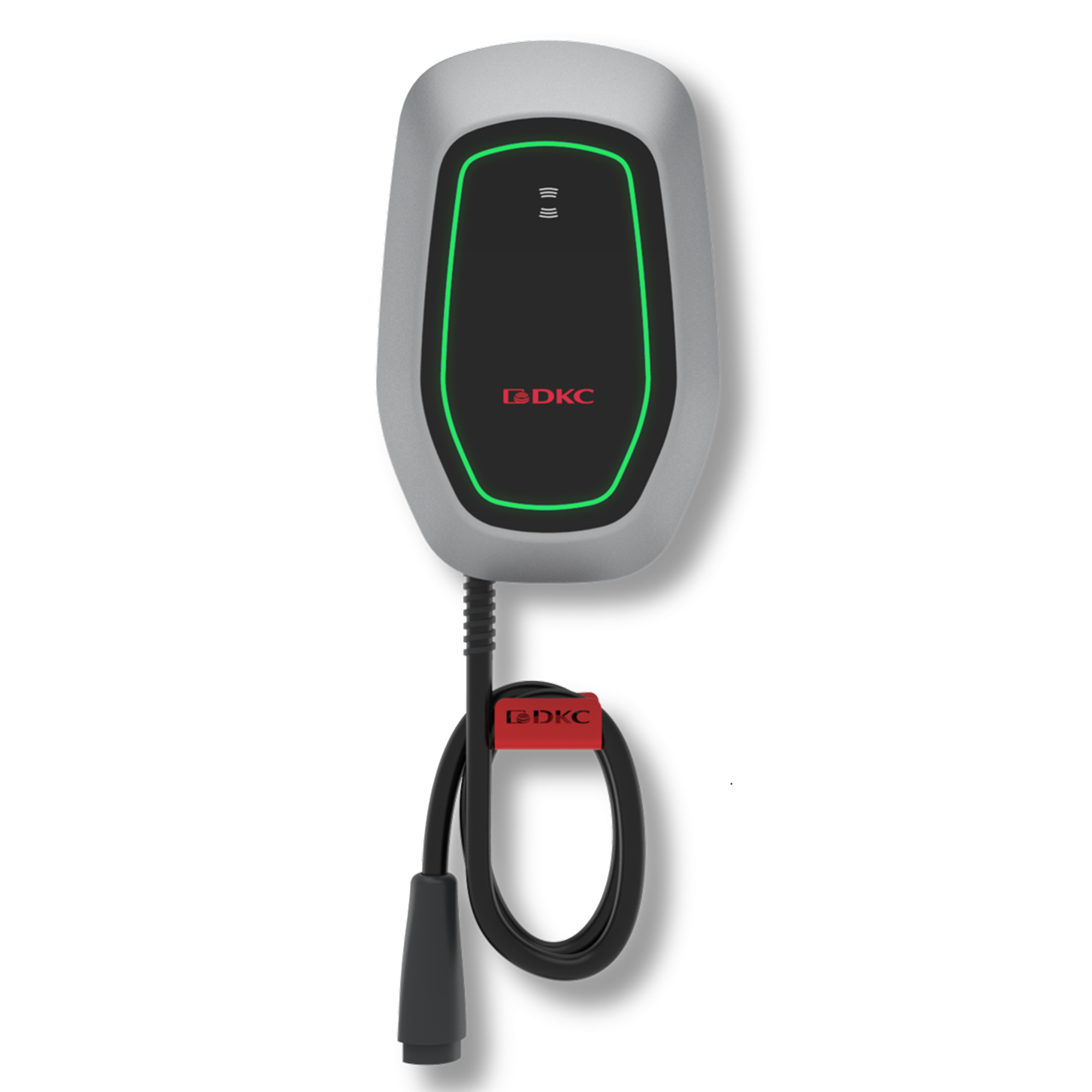

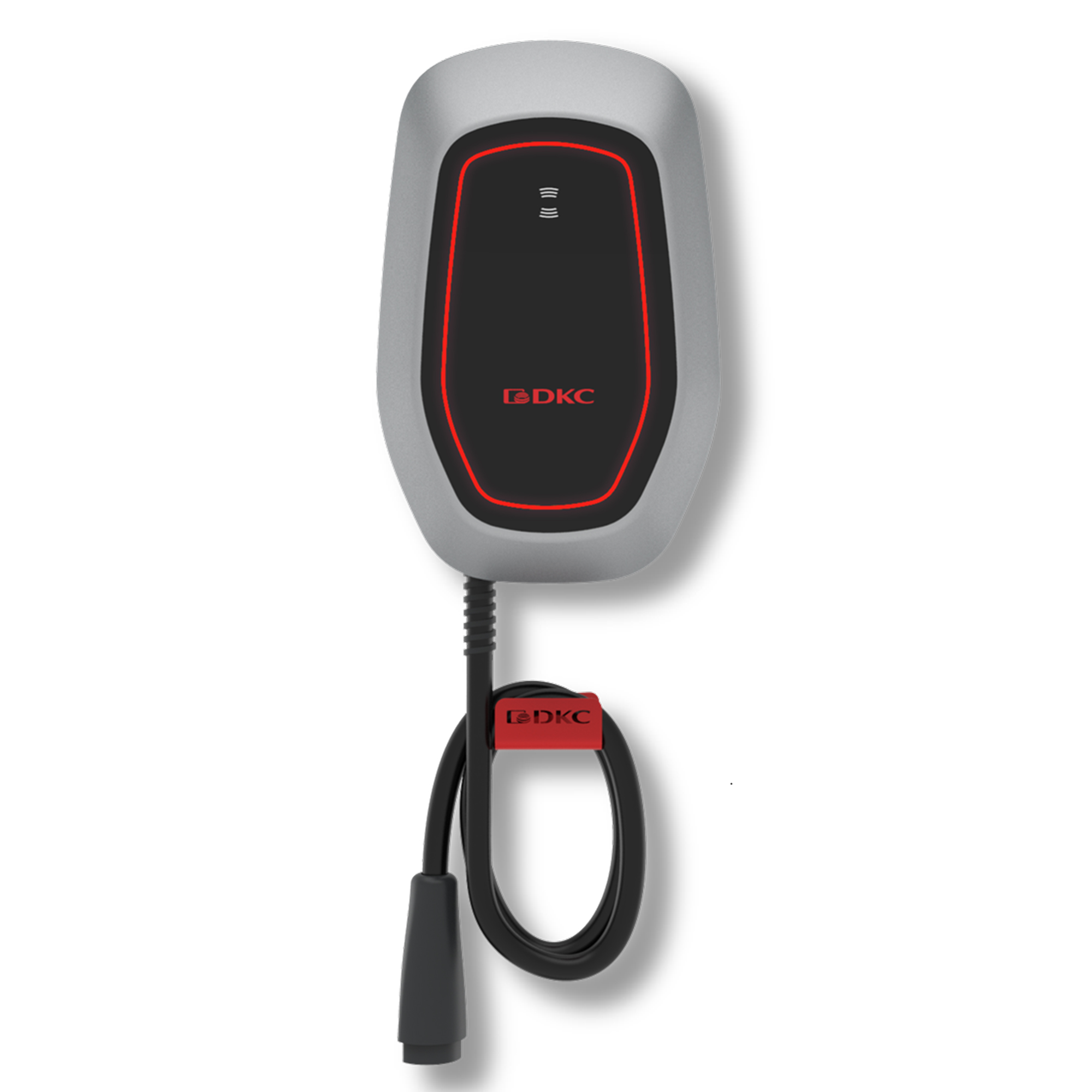

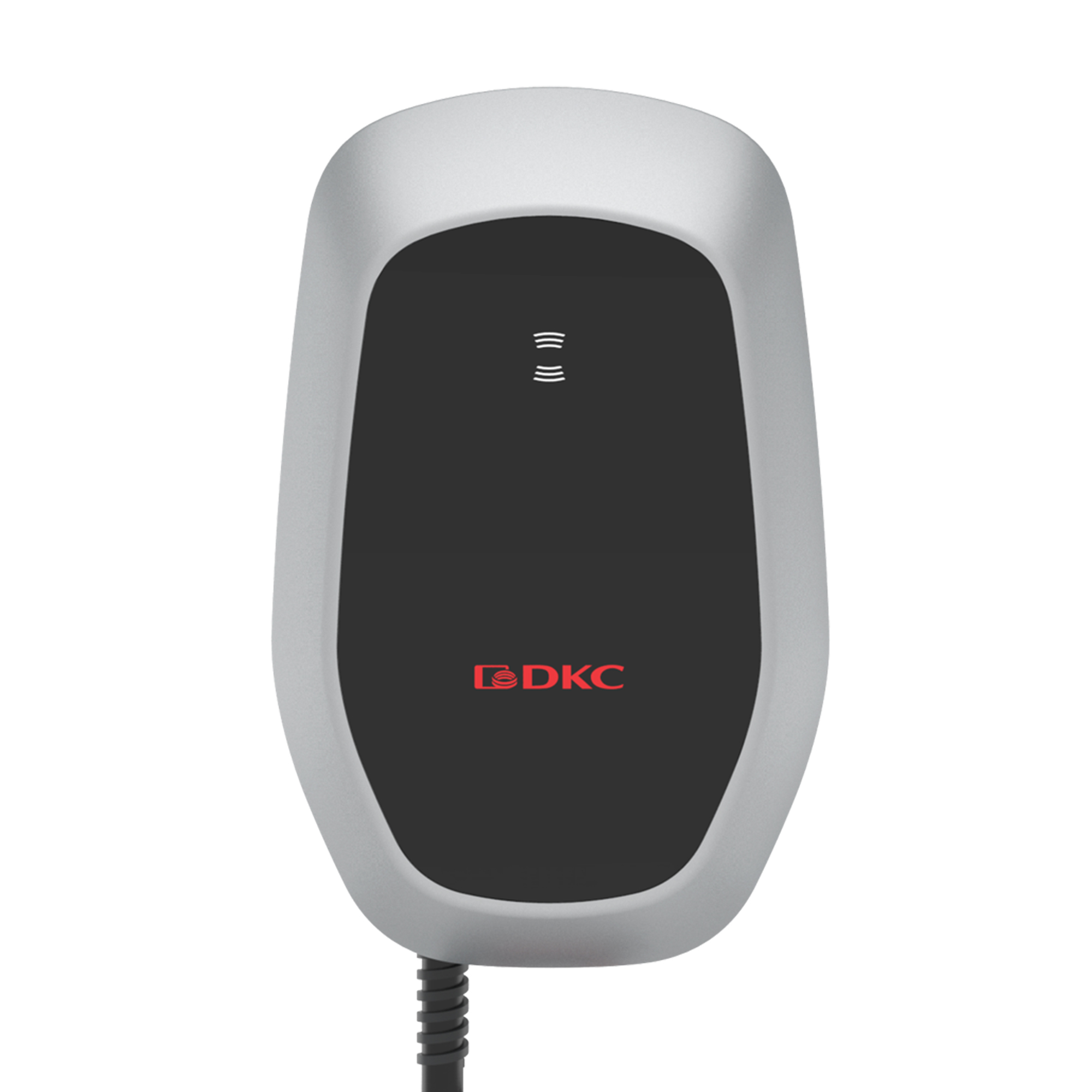

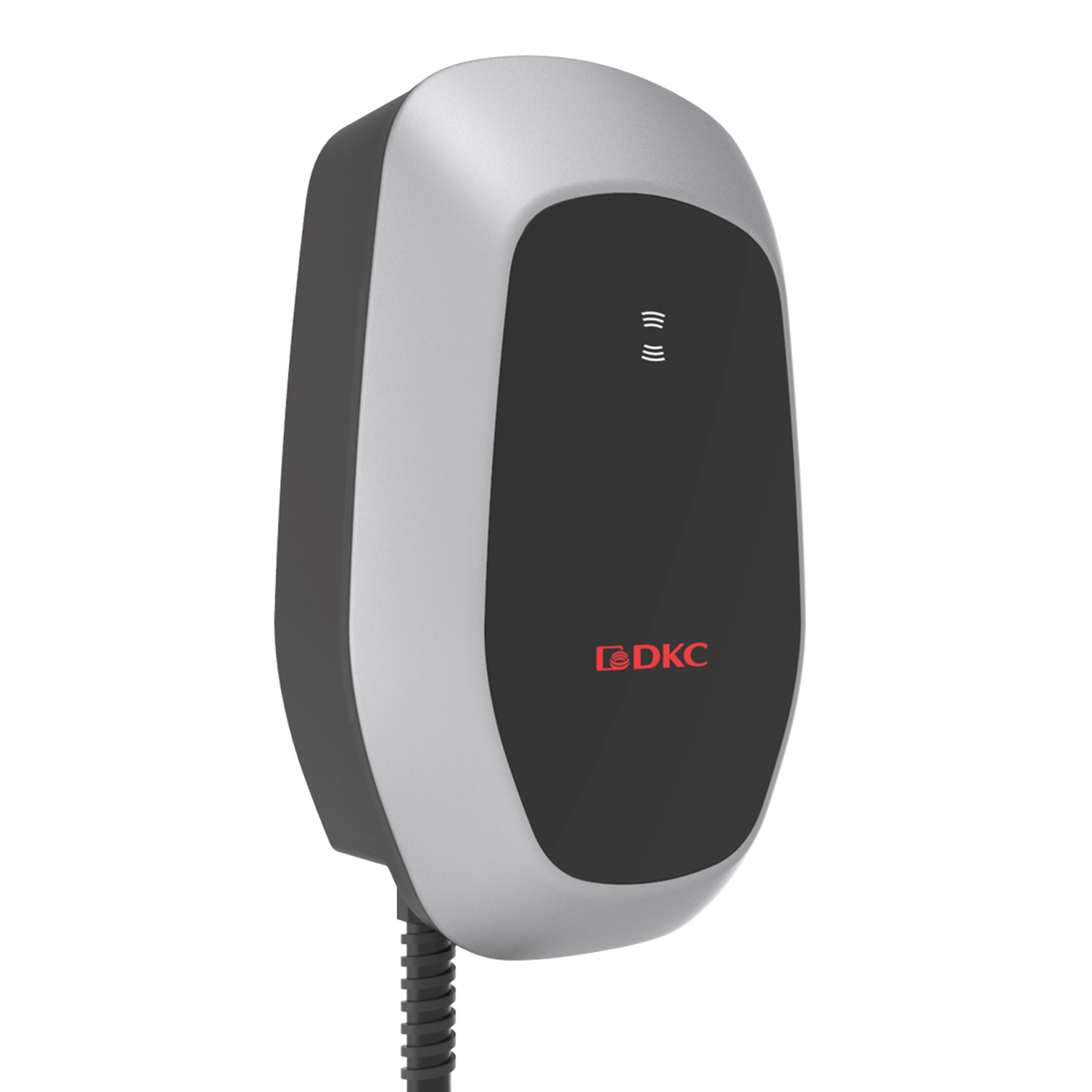

AC Charging Station - EOS Charge 7,4kW T2C - RFID - WiFi - LAN
Code:
EC7CCOMS
Code:
EC7CCOMS
Removed from the product range

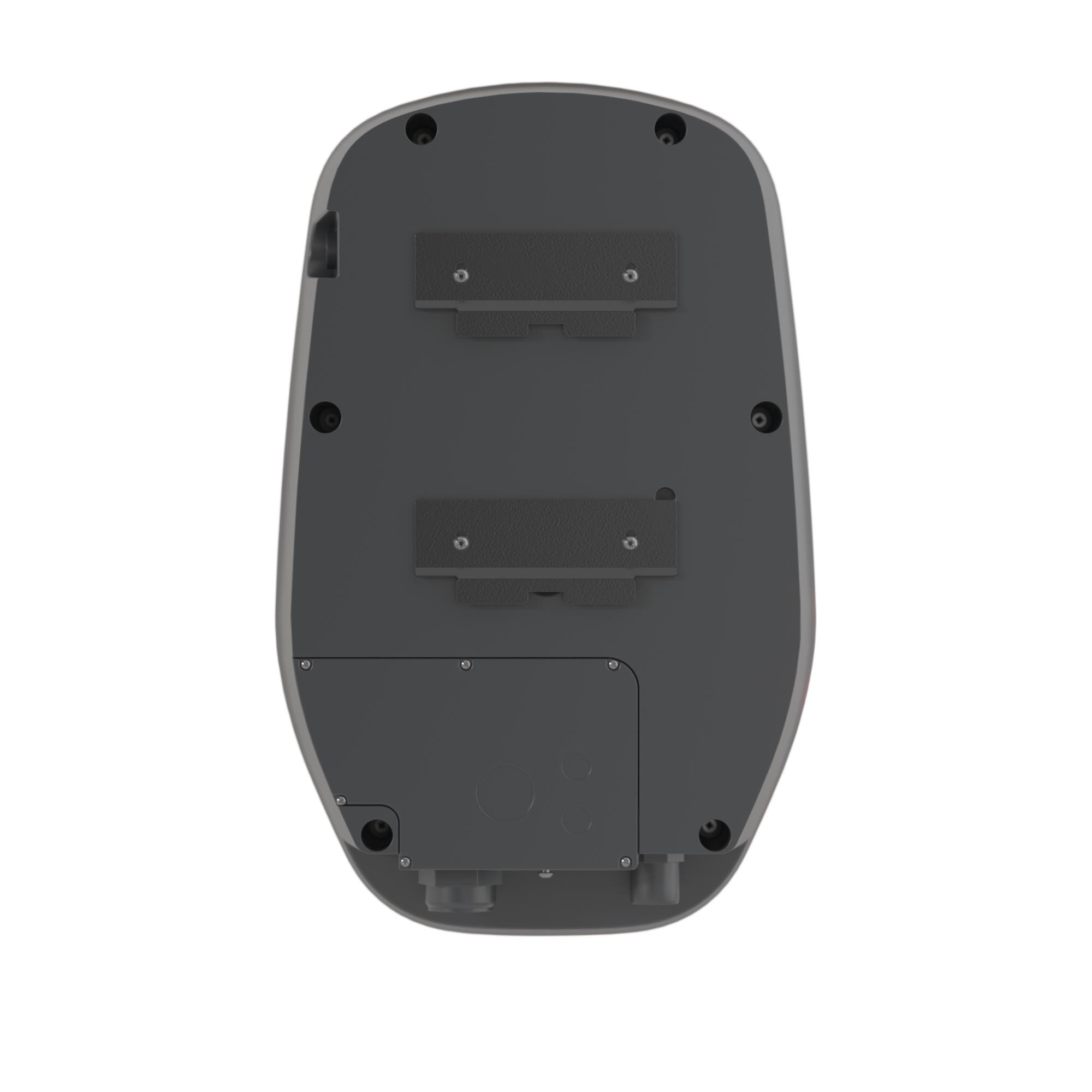

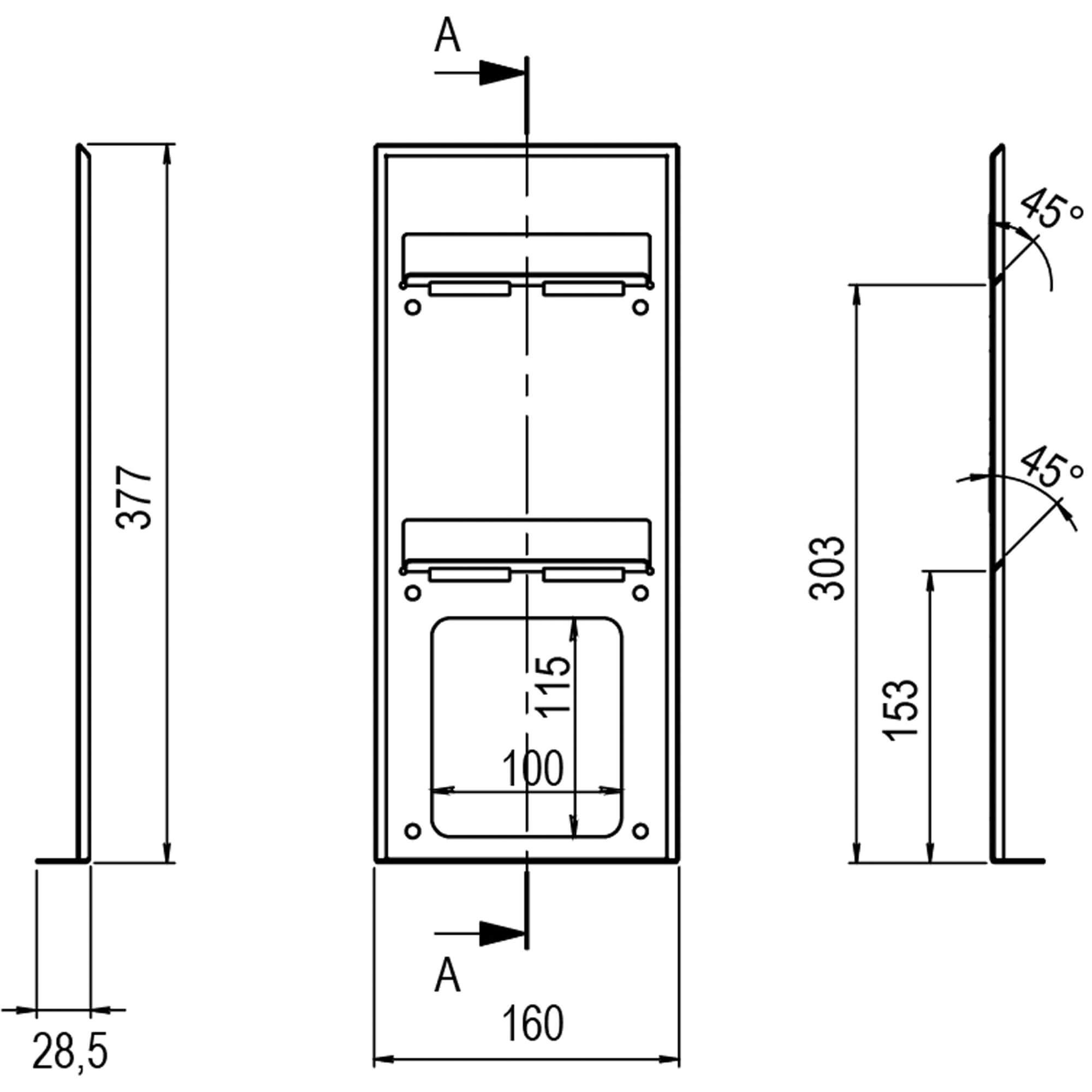

| Mounting method | Wall mounting |

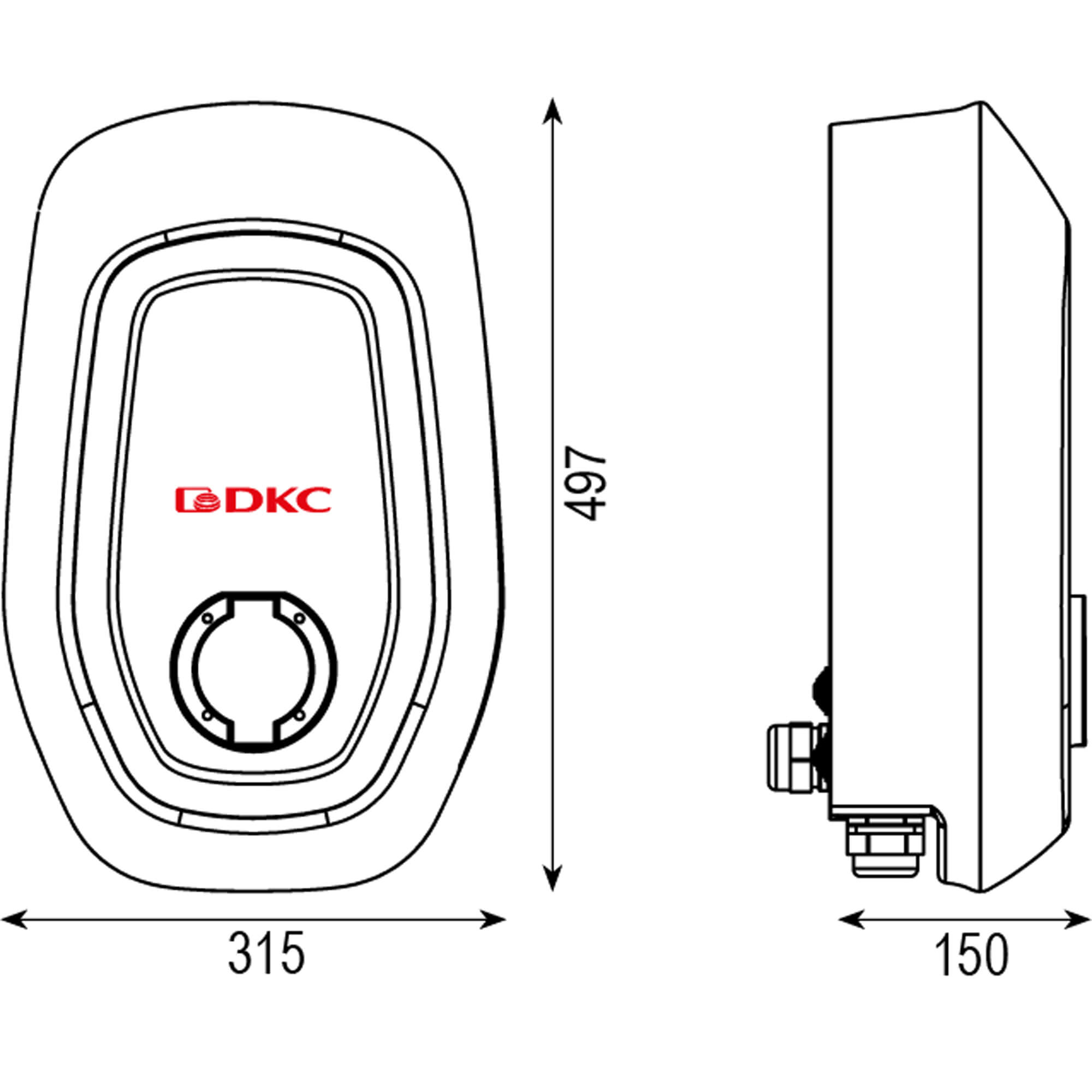

| Width, mm | 315 |
| Height, mm | 497 |
| Depth, mm | 150 |
| Material housing | Plastic |
| Nominal connection power, kW | 7.4 |
| Impact strength | IK10 |
| Degree of protection (IP) | IP54 |
| With communication interface | Yes |
| Function access control | Yes |
| Number of charging units | 1 |
| With house connection box | No |
| Number of earth leakage circuit breakers type A | 1 |
| Max. power per charging point, kW | 7.4 |
| With load management | Yes |
| With energy meter | No |
| Installation side connection model | Single phase |
| Power | 7.4 kW |
| Length of cable | 5 m |
| Access protection | RFID |
| Number of connectors | 1 |
| Display status | LED |
| Connector type | Cable Type 2 |
| Power Meter | No |

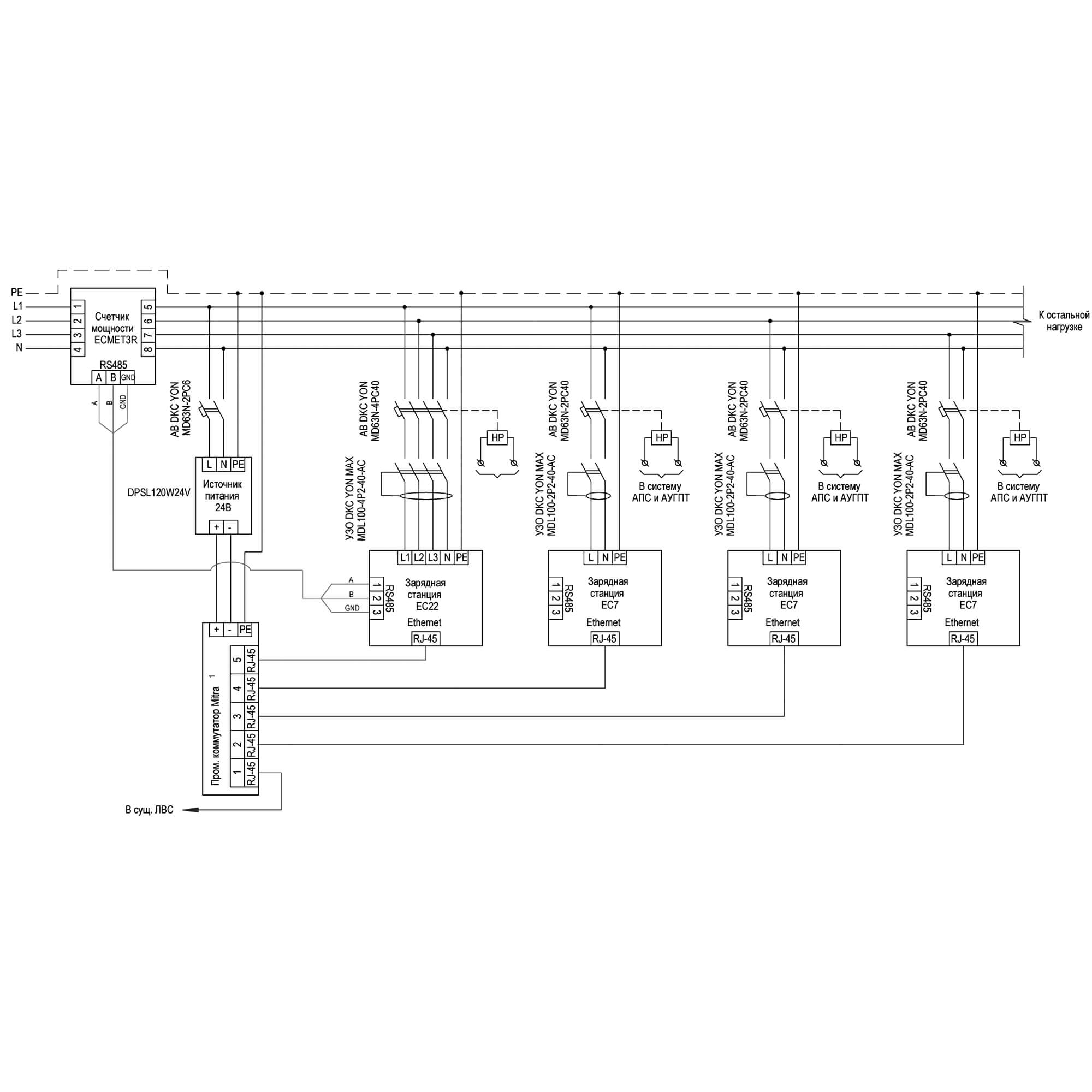

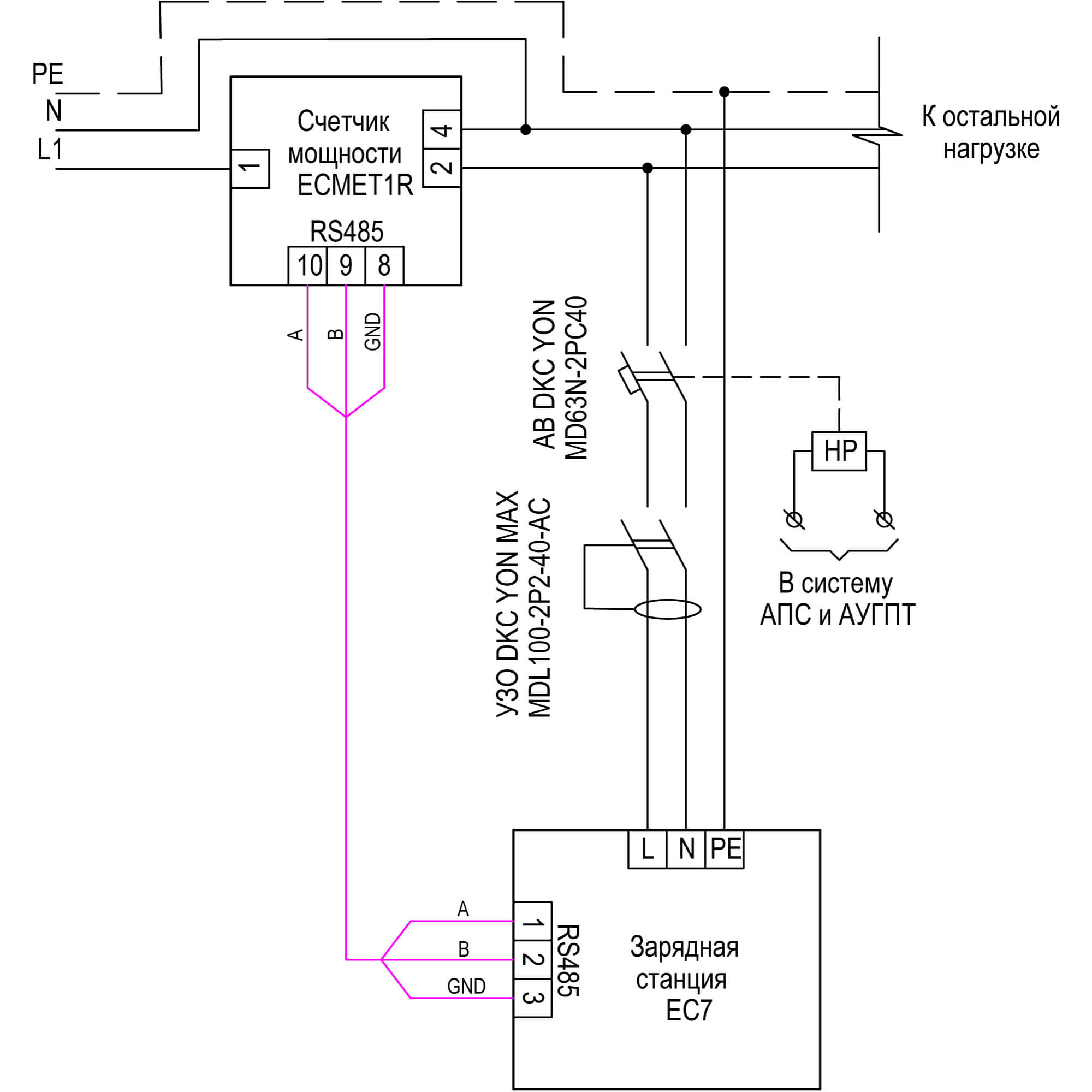

| Dynamic Load Balancing | With compatible external power meter |
