| Mounting method | Surface mounted (plaster) |
| Built-in depth, mm | 150 |
| Extension possible | No |
| Material housing | Steel |
| Cover model | None |
| Width, mm | 300 |
| Height, mm | 200 |
| Depth, mm | 150 |
| RAL-number | 7035 |
| With mounting plate | Yes |
| Degree of protection (IP) | IP66 |

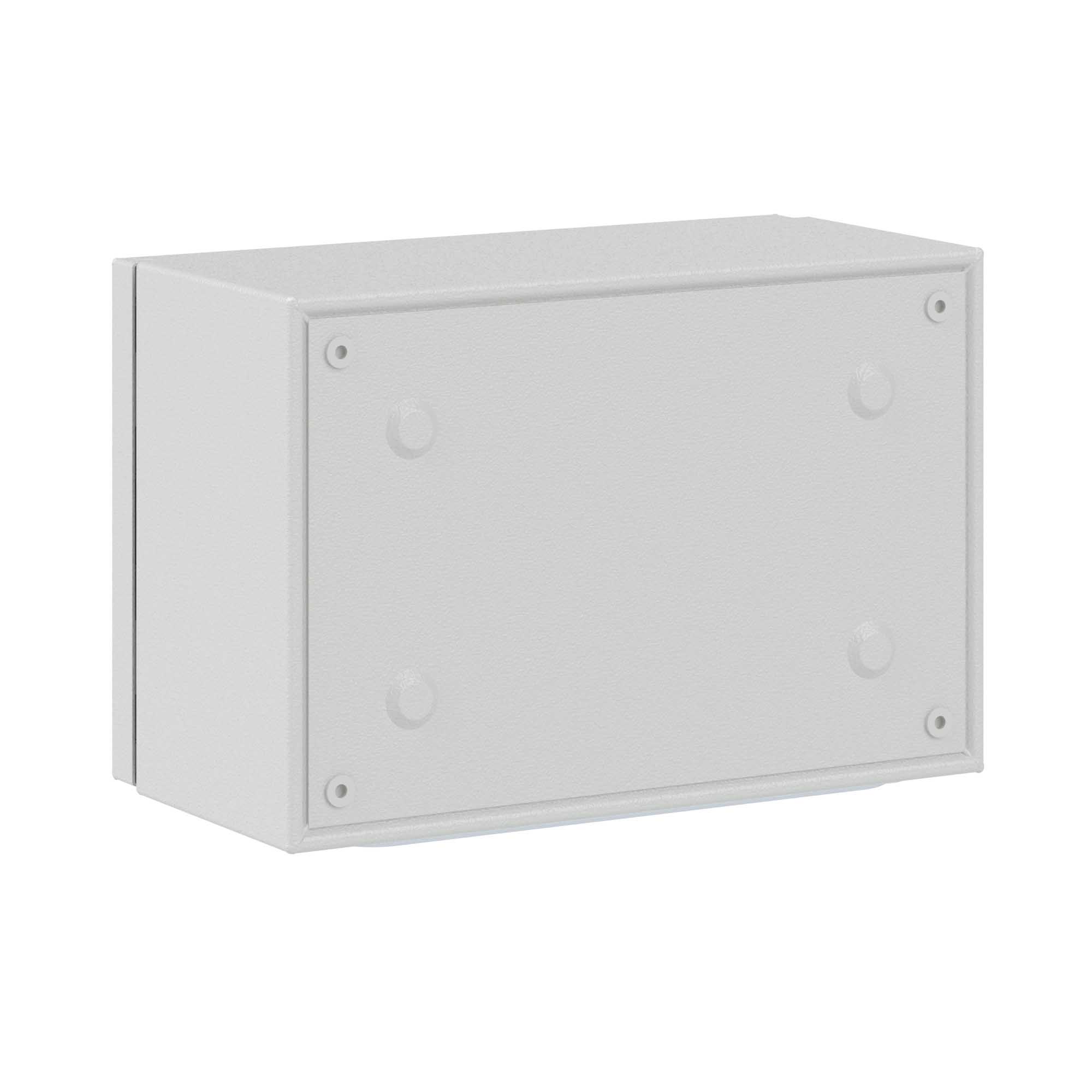

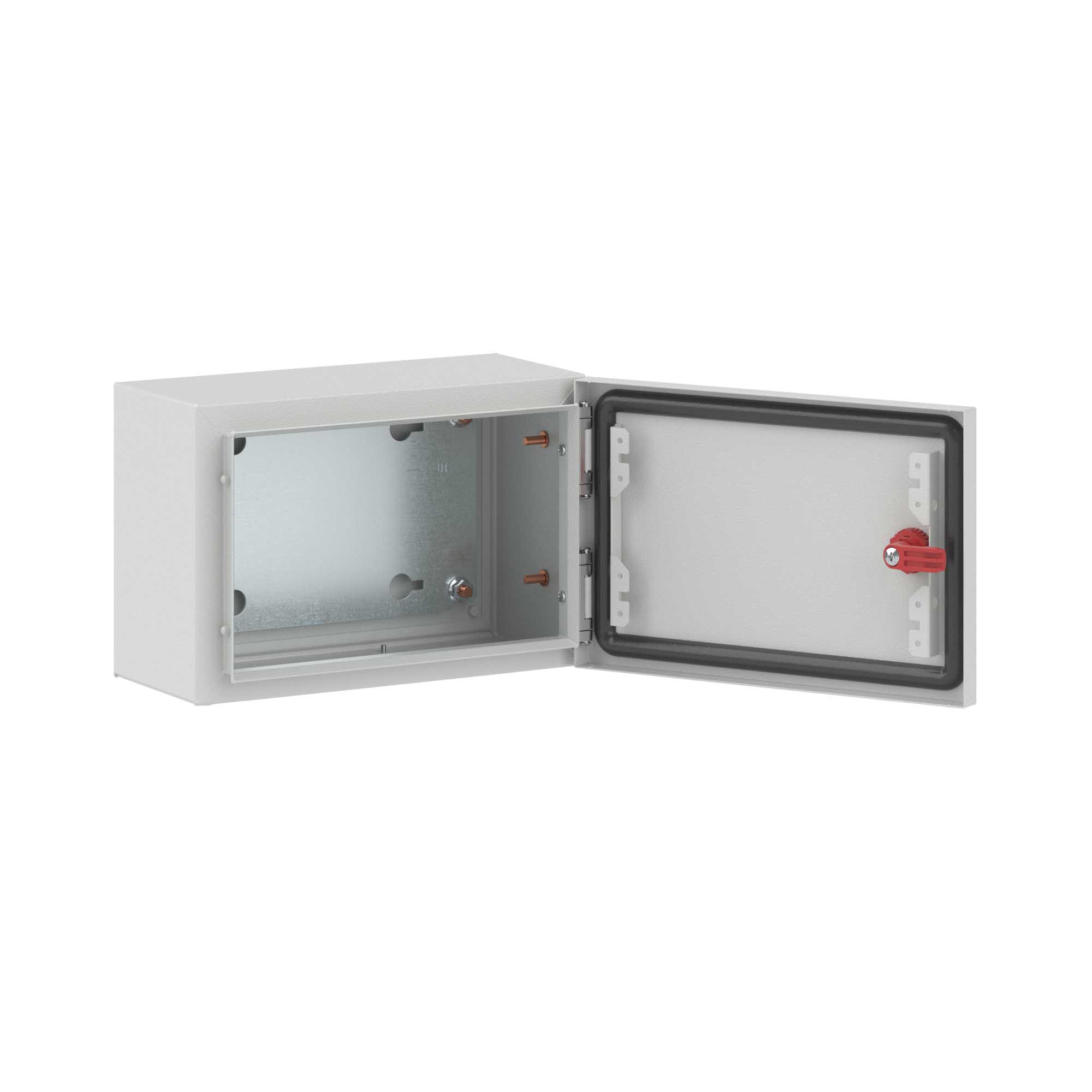

| Product type | Wall mounted enclosure |
| Series | ST |
| Material | Steel, light grey, RAL7035 |
| Height | 200 mm |
| Width | 300 mm |
| Depth | 150 mm |
| Enclosure design | Reversible plain door |
| Mounting plate | Included |
| Door slats | Not included |
| Cable flanges | Included |
| Number of cable flanges | 1 pc. |
| Enclosure thickness | 1,2 mm |
| Door/lid thickness | 1,2 mm |
| Mounting plate thickness | 1,8 mm |
| Cablr flange thickness | 1,5 mm |
| Gasket | Polyurethane |
| Degree of protection | IP66 |
| IK | IK10 |
| Seismic resistance | Degree 9 of MSK-64 |
| Mechanical strength | M39 |
| Temperature range | -60...+90 °С |
| Climate version | UHL1, OM2, OM3, U3 |
| Flammability | G1 |
| Russian Maritime Register of Shipping | Yes |
| Russian Classification Society | Yes |
