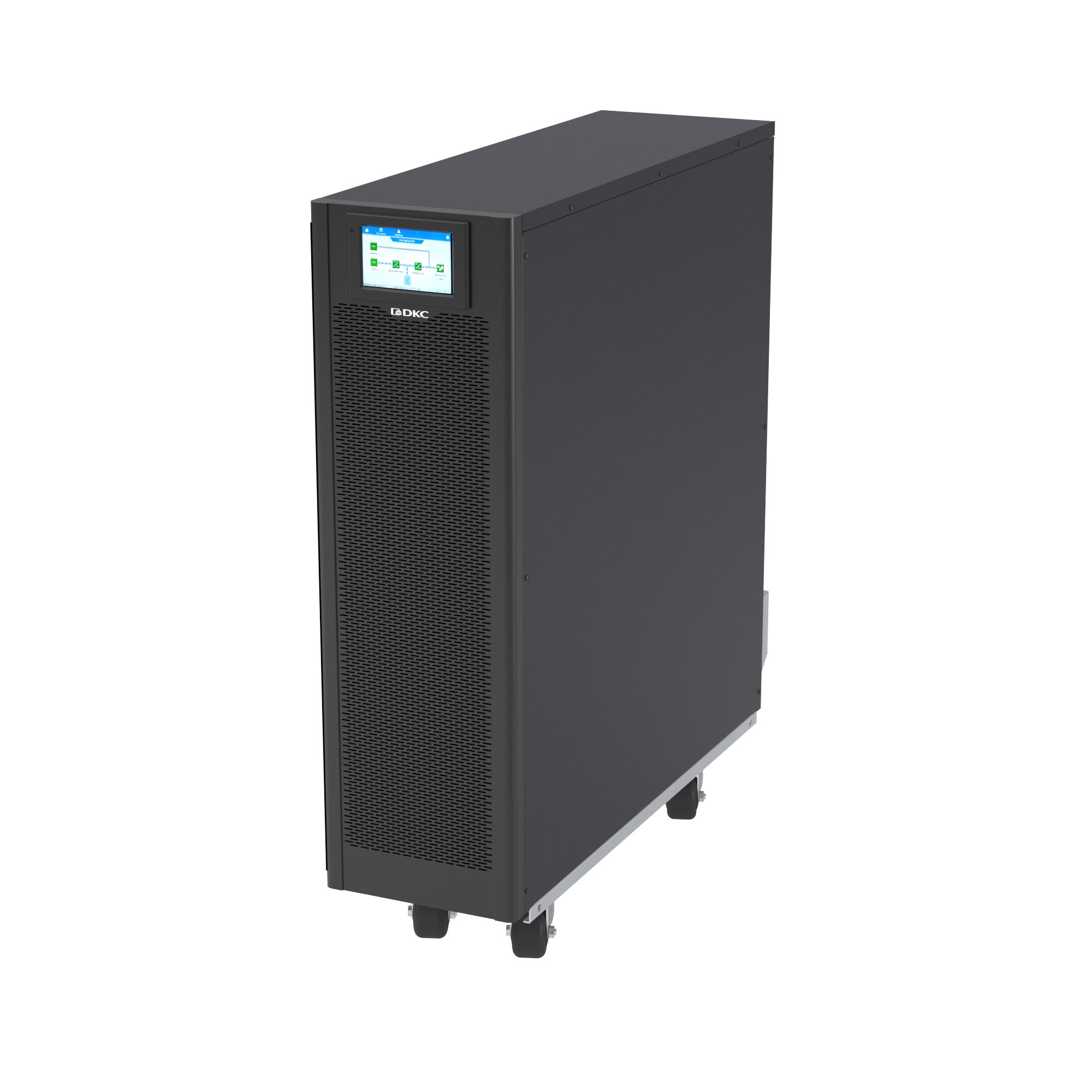

Three-phase DKS UPS of the TRIOMT series, 15 kVA / 15 kW, floor-standing design, internal batteries 120x9 Ah
Code:
TRIOMT15A120
Code:
TRIOMT15A120
| Weight, kg | 389 |
| Voltage type | AC |
| Output power, VA | 150000 |
| Construction type | Free standing model |
| Input voltage, V | 320...460 |
| PC interface | Yes |
| Width, mm | 450 |
| Height, mm | 1117 |
| Depth, mm | 950 |
| Output voltage, V | 380...415 |
| SNMP | Yes |
| USV- technology | Online |
| Degree of protection (IP) | IP20 |
| Built-in battery | Yes |
| Number of phases secondary | 3 |
| Number of phases primary | 3 |
| Output power factor | 1 |
| Input voltage range | 304~478Vac, full load |
| Frequency range | 40Hz～70Hz |
| Input power factor | >0.99 |
| Input current THDi | <3%( full non-linear load) |
| Rated output voltage | 380/400/415 V |
| Rated frequency | 50/60 Hz |
| Bypass voltage range | Optional, default -20%～+15% Top limitation: +10%, +15%, +20%, +25%, Down limitation: -10%, -15%, -20%, -30%, -40% |
| Bypass frequency range | Selectable, ±1Hz, ±3Hz, ±5Hz |
| Bypass overload | 125% long term operation; 125%~130%, 10min |
| Rated nominal current | 1.7×In (100% non-linear load) |
| Transfer time | 0 msec |
| Rated inverter voltage | 380/400/415 V |
| Power factor | 1 |
| Crest factor | 3:1 |
| Voltage precision | ±1% (linear load) |
| Precise frequency | 0.1 Hz |
| Total harmonic distortion (THDv) | <1% (full linear load) |
| Synchronization range | selectable: ±0,5 Hz ~ ±5 Hz, default ±3 Hz |
| Synchronization speed | selectable: 0,5 Hz/С ~ 3 Hz/С, default 0,5 Hz/С |
| Step response | <5% for step load (20% - 80% -20%) |
| Inventer overload | 110%~125%,10 min; |
| Installed internal batteries | Yes |
| Battery quantity | 120 |
| Battery type | lead-acid battery |
| Capacity | 9 Ah |
| Long run model battery voltage | ±240 V default, ±120V～±240V |
| Max charge current | 10A |
| Floating charge voltage | 2,25 V per element (selectable from 2,2 V per element～2,35 V per element) DC and floating voltage charge mode |
| Equalizing charge voltage | 2.37 V per element (selectable from 2.30 V per element ~2.45 V per element) DC and floating voltage charge mode |
| Temperature compensation of the charging current | 3.0 mV/0C*element (selsctable: 0~5.0) |
| Charger voltage accuracy | ≤1% |
| Ripple current | ≤5％ |
| Display | Default: 5 inch touch screen |
| Efficiency network | >96% |
| Efficiency ECO mode | 98.5% |
| Efficiency battery mode | >94.5% |
| Maximum number of UPS in parallel mode | 4 |
| Interface | Standard: RS232, RS485, USB, Battery cold start Option: programmable dry contact, SNMP, parallel kit |
| Color | Black, RAL 7021 |
| IP protection | IP20 |
| Temperature range | 0℃~40℃ |
| Storage temperature | -40℃~70℃ |
| Relative humidity | 0 ～ 95% (non-condensing) |
| Noise level at 1m | 58dB max. |
| Altitude | <1000m, load derated 1% per 100m from 1000 ～ 2000m |
