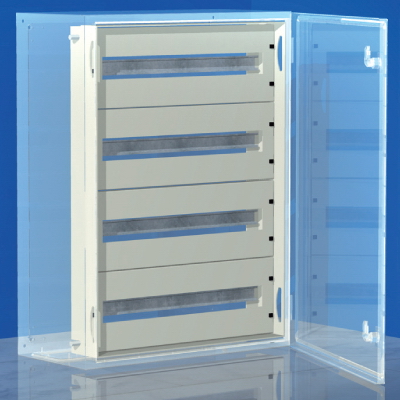

Panel for modules, 84 (4 x 21) modules for CE, 700 x 500mm

Code: R5TM75
Panel for modules, 84 (4 x 21) modules for CE, 700 x 500mm
Panel for modules, 84 (4 x 21) modules for CE, 700 x 500mm

Panel for modules, 84 (4 x 21) modules for CE, 700 x 500mm

Code: R5TM75
Width, mm 500
Height, mm 700
Number of DIN rails 4
Number of modular spacings per DIN-rail 21
With N-PE clamp No
With mounting plate No
Type of cover With notch
Material Painted steel
Enclosure type Wall-mounted
Product type Modular frame
