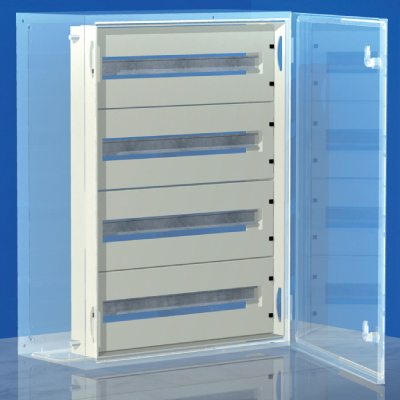

Panel for modules, 48 (3 x 16) modules for CE, 500 x 400mm

Code: R5TM54
Panel for modules, 48 (3 x 16) modules for CE, 500 x 400mm
Panel for modules, 48 (3 x 16) modules for CE, 500 x 400mm

Panel for modules, 48 (3 x 16) modules for CE, 500 x 400mm

Code: R5TM54
Width, mm 400
Height, mm 500
Number of DIN rails 3
Number of modular spacings per DIN-rail 16
With N-PE clamp No
With mounting plate No
Type of cover With notch
Material Painted steel
Enclosure type Wall-mounted
Product type Modular frame
Drawings
Seria Name Insulation cut out DWG (dynamic.) DWG STEP
Metal enclosures - "RAMblock"
Welded wall cabinets CE
ZIP
151.54 Kb
Metal enclosures - "RAMblock"
Welded hinged housing of the ST series
ZIP
151.54 Kb
Metal enclosures - "RAMblock"
Wall welded cabinets series CE (dynamic blocks)
RAR
10.17 Mb
Metal enclosures - "RAMblock"
Panel for modules, 48 (3 x 16) modules for cabinets CE, 500 x 400mm
RAR
218.12 Kb
RAR
1.34 Mb
