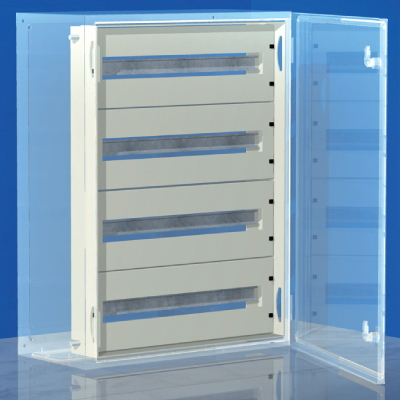

Panel for modules, 20 (2 x 10) modules for CE, 400 x 300mm

Code: R5TM43
Panel for modules, 20 (2 x 10) modules for CE, 400 x 300mm
Panel for modules, 20 (2 x 10) modules for CE, 400 x 300mm
Width, mm 300
Height, mm 400
Number of DIN rails 2
Number of modular spacings per DIN-rail 10
Mounting plate No
With N-PE clamp No
With mounting plate No
Type of cover With notch
Color gray
Material Metal
Height, mm 400
Width, mm 300
Thickness, mm 1,5
