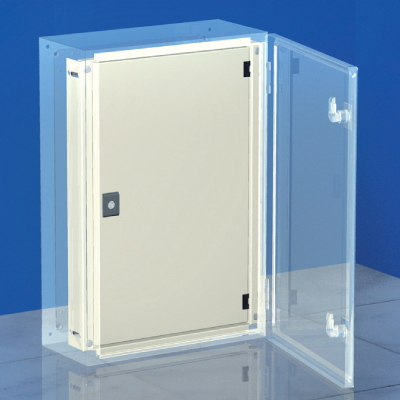

The door inner for cabinet of CE 500 x 400 mm

The door inner for cabinet of CE 500 x 400 mm

Code: R5IE54

To ask a question

Material	Steel
Type of surface	With powder coating
Colour	Grey
Width, mm	400
Height, mm	500
Depth, mm	1.5

Model	Inner door
EMC-version	No
Degree of protection (IP)	Other
Version as glazed door	No
Version as door for disconnecting switch interlocking	No
Perforated	No

Color	gray
Material	Metal
Height, mm	500

Width, mm	400
Thickness, mm	1,5

Drawings

Seria	Name	Templates for insulation cut	DWG	STEP	DWG (dynamic blocks)
RAMblock - metal enclosures	Welded hinged housing of the ST series	ZIP 151.54 kB
RAMblock - metal enclosures	Welded wall cabinets CE	ZIP 151.54 kB
RAMblock - metal enclosures	Inner door, CE for cabinets 500 x 400 mm		RAR 263.42 kB	RAR 1.46 MB
RAMblock - metal enclosures	Wall welded cabinets series CE (dynamic blocks)				RAR 10.17 MB

Certificates

Name	Document
RAM block - Exemption letter for enclosures RAM block_1	PDF 3.69 MB
RAM block - Exemption letter for accessories RAM block_1	PDF 742.54 kB
RAM block - Test report for welded boxes CE/CDE on the seismic stability_1	PDF 128.88 kB
RAM block - Test report for welded boxes CE/CDE on the vibration_1	PDF 125.50 kB
Test report on seismic and vibration metal enclosures ST series_1	PDF 998.40 kB
Test report on hinged welded cabinets ST_UHL1_1	PDF 196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"	PDF 5.99 MB
