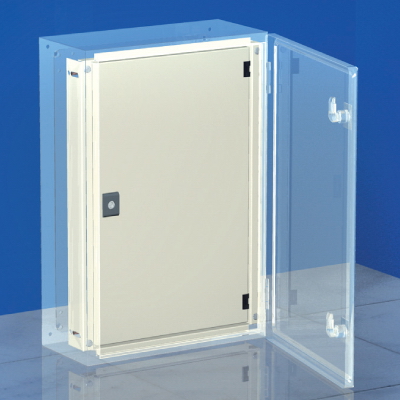

The door inner for cabinet of CE 400 x 300 mm

Code: R5IE43
The door inner for cabinet of CE 400 x 300 mm
The door inner for cabinet of CE 400 x 300 mm
Material Steel
Type of surface With powder coating
Colour Grey
Width, mm 300
Height, mm 400
Depth, mm 1.5
Model Inner door
EMC-version No
Degree of protection (IP) Other
Version as glazed door No
Version as door for disconnecting switch interlocking No
Perforated No
Color gray
Material Metal
Height, mm 400
Width, mm 300
Thickness, mm 1,5
Drawings
Seria Name Templates for insulation cut DWG STEP DWG (dynamic blocks)
RAMblock - metal enclosures
Welded hinged housing of the ST series
ZIP
151.54 kB
RAMblock - metal enclosures
Welded wall cabinets CE
ZIP
151.54 kB
RAMblock - metal enclosures
Inner door, CE for cabinets 400 x 300 mm
RAR
268.95 kB
RAR
1.41 MB
RAMblock - metal enclosures
Wall welded cabinets series CE (dynamic blocks)
RAR
10.17 MB
Certificates
Name Document
RAM block - Exemption letter for enclosures RAM block_1
PDF
3.69 MB
RAM block - Exemption letter for accessories RAM block_1
PDF
742.54 kB
RAM block - Test report for welded boxes CE/CDE on the seismic stability_1
PDF
128.88 kB
RAM block - Test report for welded boxes CE/CDE on the vibration_1
PDF
125.50 kB
Test report on seismic and vibration metal enclosures ST series_1
PDF
998.40 kB
Test report on hinged welded cabinets ST_UHL1_1
PDF
196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"
PDF
5.99 MB
