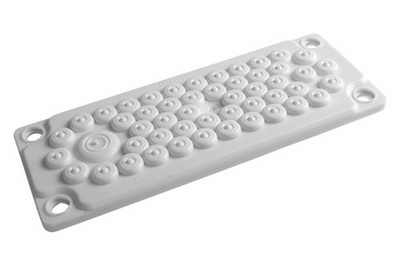

Membrane cable gland V0 UL94, IP65, +130 - 40, 50 holes

Code: R5HTC50
Membrane cable gland V0 UL94, IP65,  +130 - 40, 50 holes
Membrane cable gland V0 UL94, IP65,  +130 - 40, 50 holes
  • To ask a question
  • ?
  • Products card
  • Characteristics
  • Drawings
  • Certificates
  • ETIM
  • Characteristics
Colour Light grey
Model Open
Halogen free Yes
Material Other
Degree of protection (IP) IP65
Color gray
Material PVC
Width, mm 214
Ingress Protection rating, IP 65
Temperature of operation, °C -40 +130
Depth, mm 82
Fire protection V0 UL94
Drawings
Seria Name DWG STEP Templates for insulation cut DWG (dynamic blocks)
RAMblock - metal enclosures
Membrane cable gland V0 UL94, IP65, +130 - 40, 50 holes
ZIP
473.09 kB
ZIP
530.47 kB
RAMblock - metal enclosures
Welded hinged housing of the ST series
ZIP
151.54 kB
RAMblock - metal enclosures
Welded wall cabinets CE
ZIP
151.54 kB
RAMblock - metal enclosures
Wall welded cabinets series CE (dynamic blocks)
RAR
10.17 MB
Certificates
Name Document
RAM block - Exemption letter for accessories RAM block_1
PDF
742.54 kB
RAM block - Exemption letter for membrane cable glands, flanges, multiflanges for metal enclosures
PDF
2.69 MB
Test report on seismic and vibration metal enclosures ST series_1
PDF
998.40 kB
Test report on hinged welded cabinets ST_UHL1_1
PDF
196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"
PDF
5.99 MB
