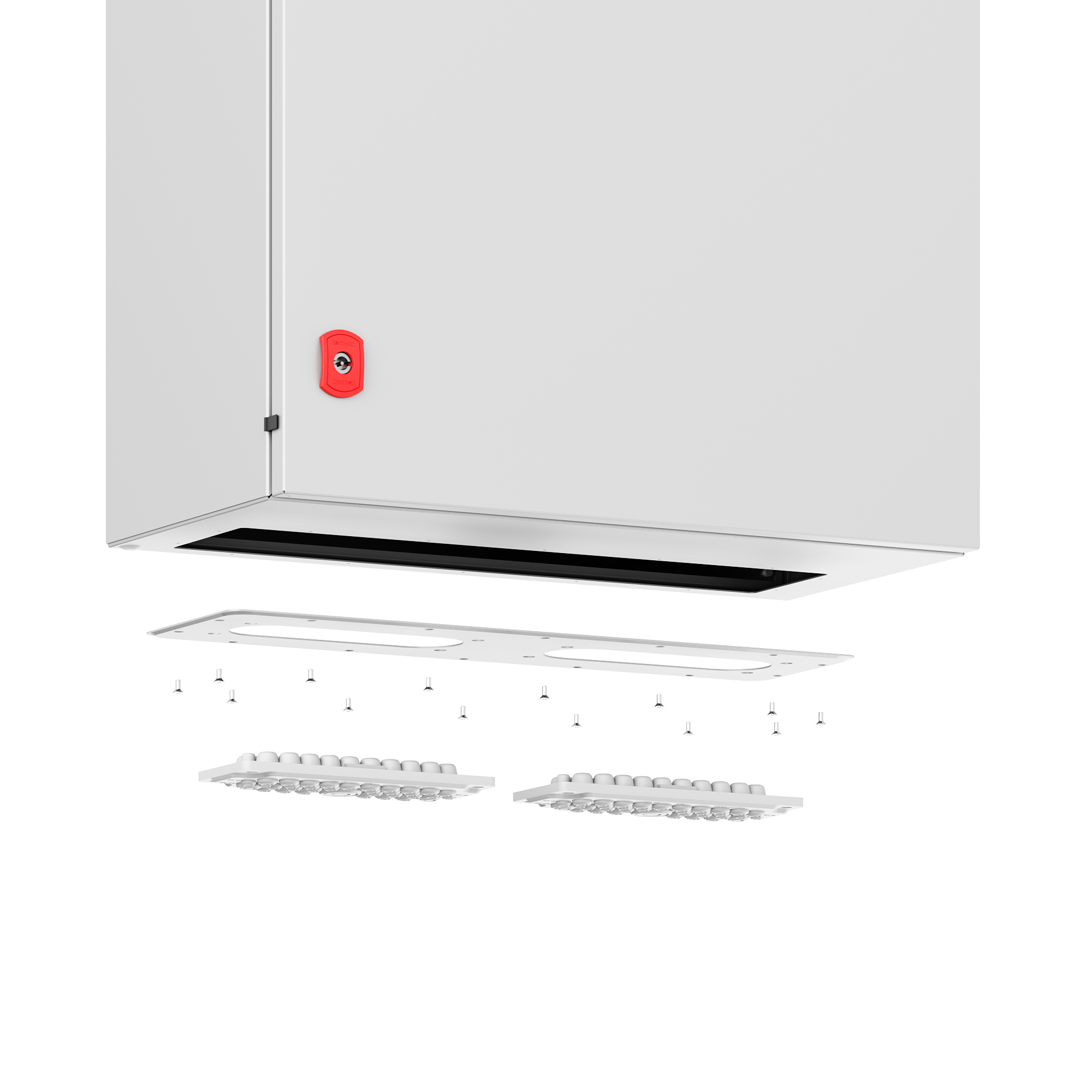

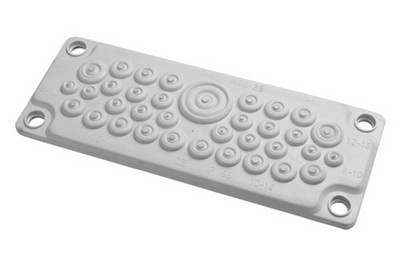

Membrane cable gland V0 UL94, IP65, +130 - 40, 35 holes

Code: R5HTC35

To ask a question
?

Colour	Light grey
Model	Open
Halogen free	Yes

Material	Other
Degree of protection (IP)	IP65

Color	gray
Material	PVC
Width, mm	214
Ingress Protection rating, IP	65

Temperature of operation, °C	-40 +130
Depth, mm	82
Fire protection	V0 UL94

Drawings

Seria	Name	DWG	STEP	Templates for insulation cut	DWG (dynamic blocks)
RAMblock - metal enclosures	Membrane cable gland V0 UL94, IP65, +130 - 40, 35 holes	ZIP 392.98 kB	ZIP 482.47 kB
RAMblock - metal enclosures	Welded hinged housing of the ST series			ZIP 151.54 kB
RAMblock - metal enclosures	Welded wall cabinets CE			ZIP 151.54 kB
RAMblock - metal enclosures	Wall welded cabinets series CE (dynamic blocks)				RAR 10.17 MB

Certificates

Name	Document
RAM block - Exemption letter for accessories RAM block_1	PDF 742.54 kB
Test report on seismic and vibration metal enclosures ST series_1	PDF 998.40 kB
Test report on hinged welded cabinets ST_UHL1_1	PDF 196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"	PDF 5.99 MB
