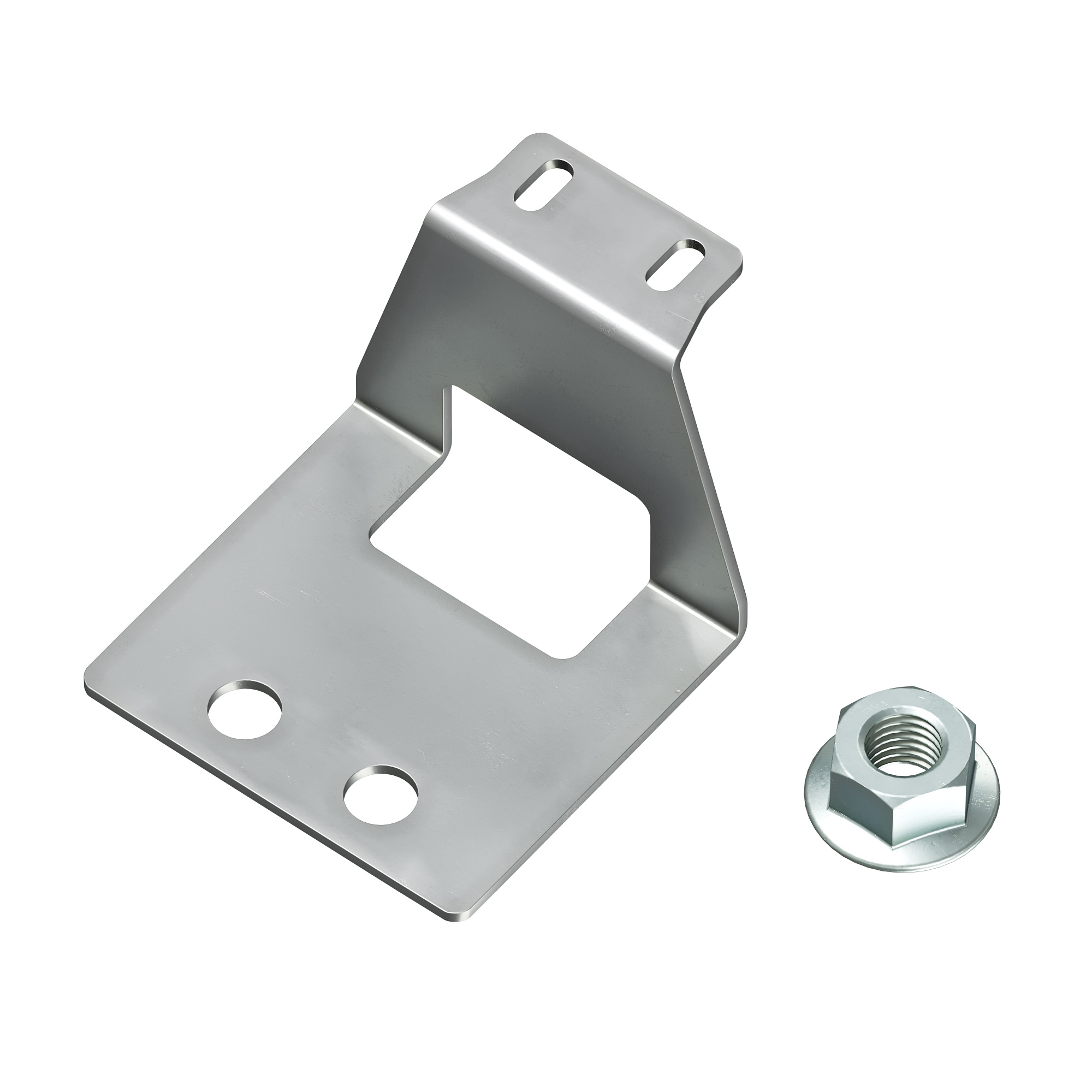

Limit switch holder of R5MC** for CE enclosures

Limit switch holder of R5MC** for CE enclosures

Code: R5FLS01

To ask a question

Width, mm	61
Model	Fastening parts/-set

Height, mm	65
Depth, mm	51

Material

Galvanized steel

Thickness, mm

2

Drawings

Seria	Name	DWG	STEP	Templates for insulation cut	DWG (dynamic blocks)
RAMblock - metal enclosures	Limit switch holder of R5MC** for CE enclosures	ZIP 21.38 kB	ZIP 23.47 kB
RAMblock - metal enclosures	Welded hinged housing of the ST series			ZIP 151.54 kB
RAMblock - metal enclosures	Welded wall cabinets CE			ZIP 151.54 kB
RAMblock - metal enclosures	Wall welded cabinets series CE (dynamic blocks)				RAR 10.17 MB

Certificates

Name	Document
RAM block - Exemption letter for accessories RAM block_1	PDF 742.54 kB
Test report on seismic and vibration metal enclosures ST series_1	PDF 998.40 kB
Test report on hinged welded cabinets ST_UHL1_1	PDF 196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"	PDF 5.99 MB
