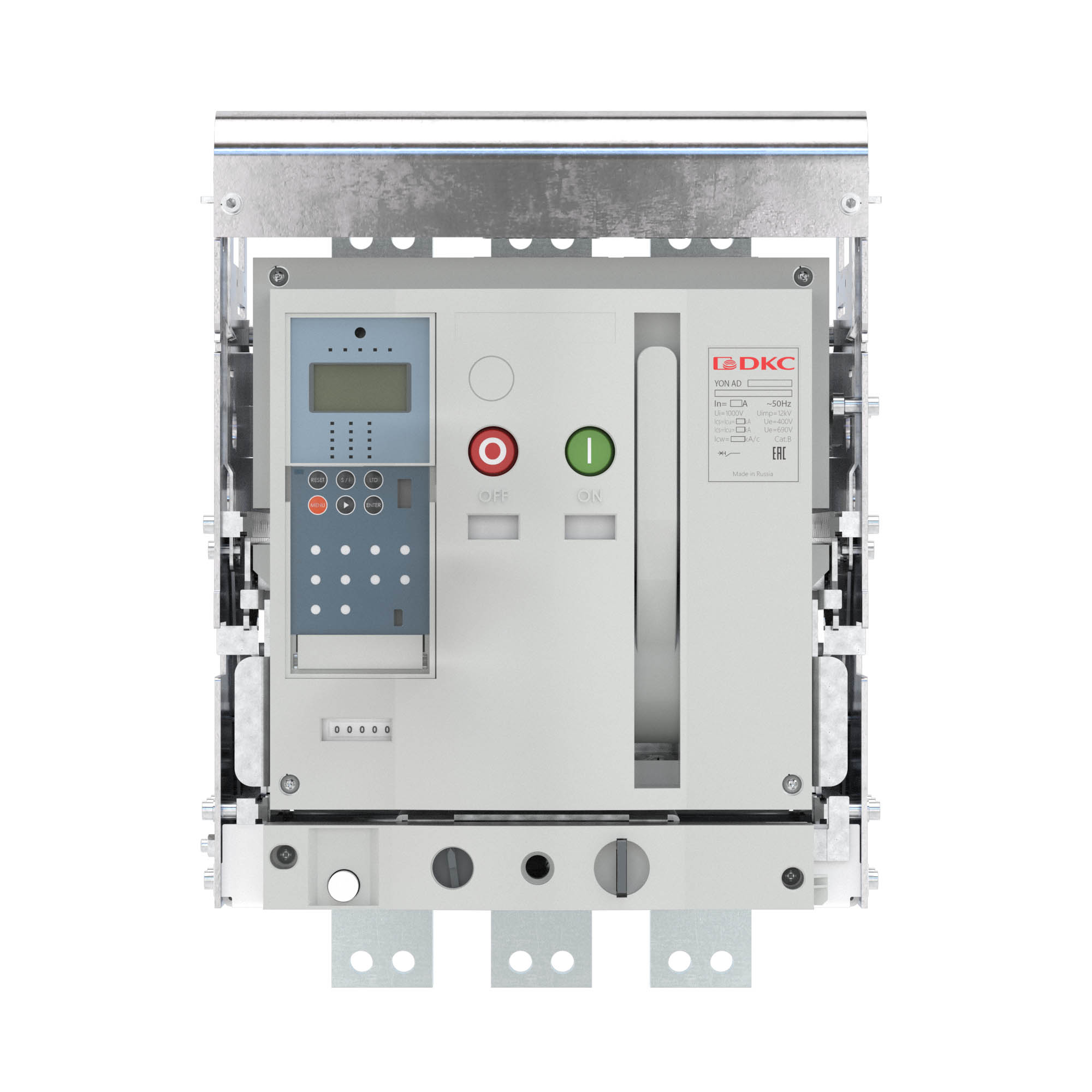

Air circuit breaker OptiMat A-1000-S2-3P-85-F-MR8.0-F-C3300-M2-P00-S1-03
Code:
102385F8F23300013
Code:
102385F8F23300013
| Number of auxiliary contacts as normally open contact | 6 |
| Number of auxiliary contacts as normally closed contact | 6 |
| Rated permanent current Iu, A | 1000 |
| Number of poles | 3 |
| Overload release current setting, A | 0.4…1 |
| Degree of protection (IP) | IP20 |
| Motor drive integrated | Yes |
| Type of electrical connection of main circuit | Rail connection |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz, kA | 85 |
| Suitable for DIN rail (top hat rail) mounting | No |
| Motor drive optional | Yes |
| With under voltage release | No |
| Device construction | Built-in device fixed built-in technique |
| Type of control element | Push button |
