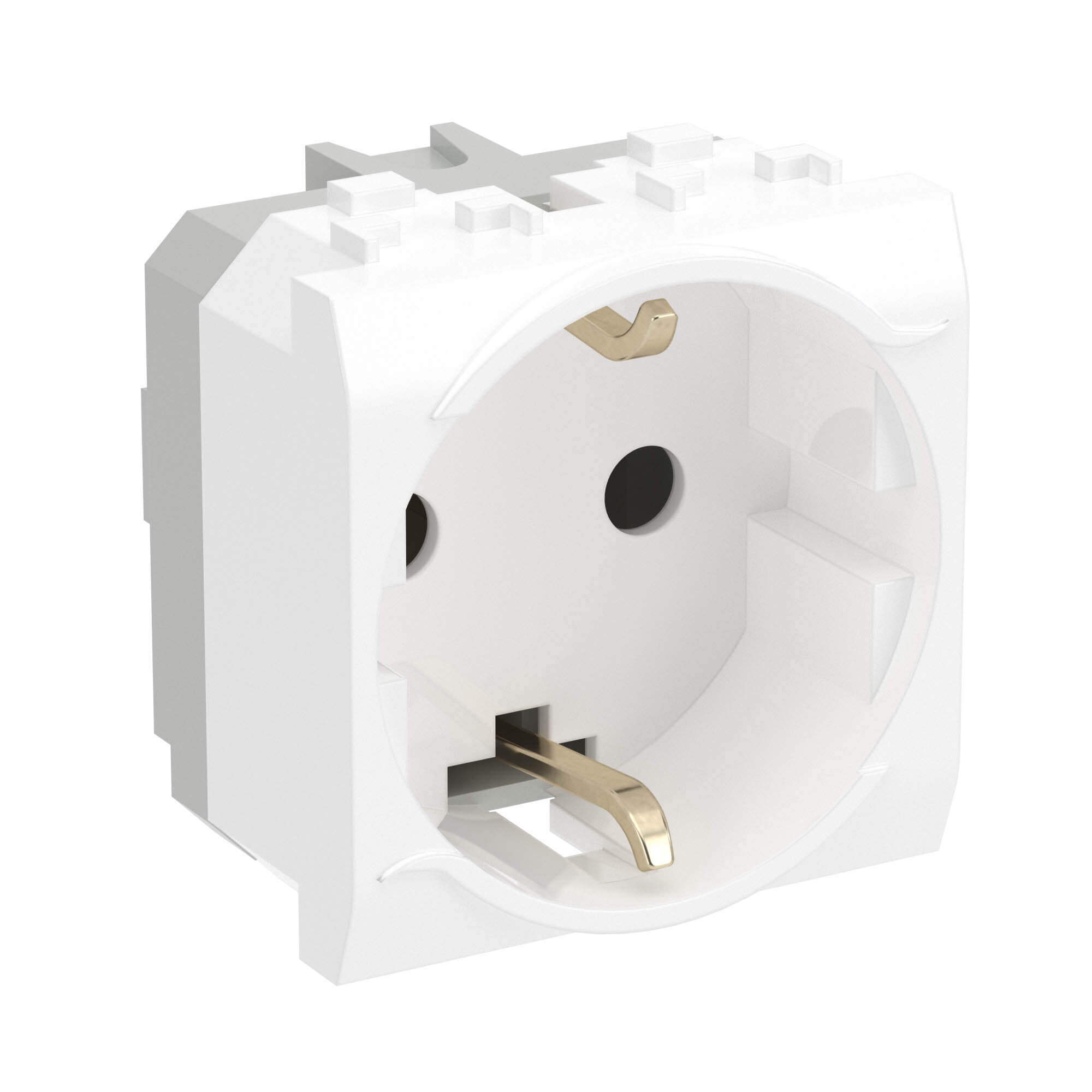

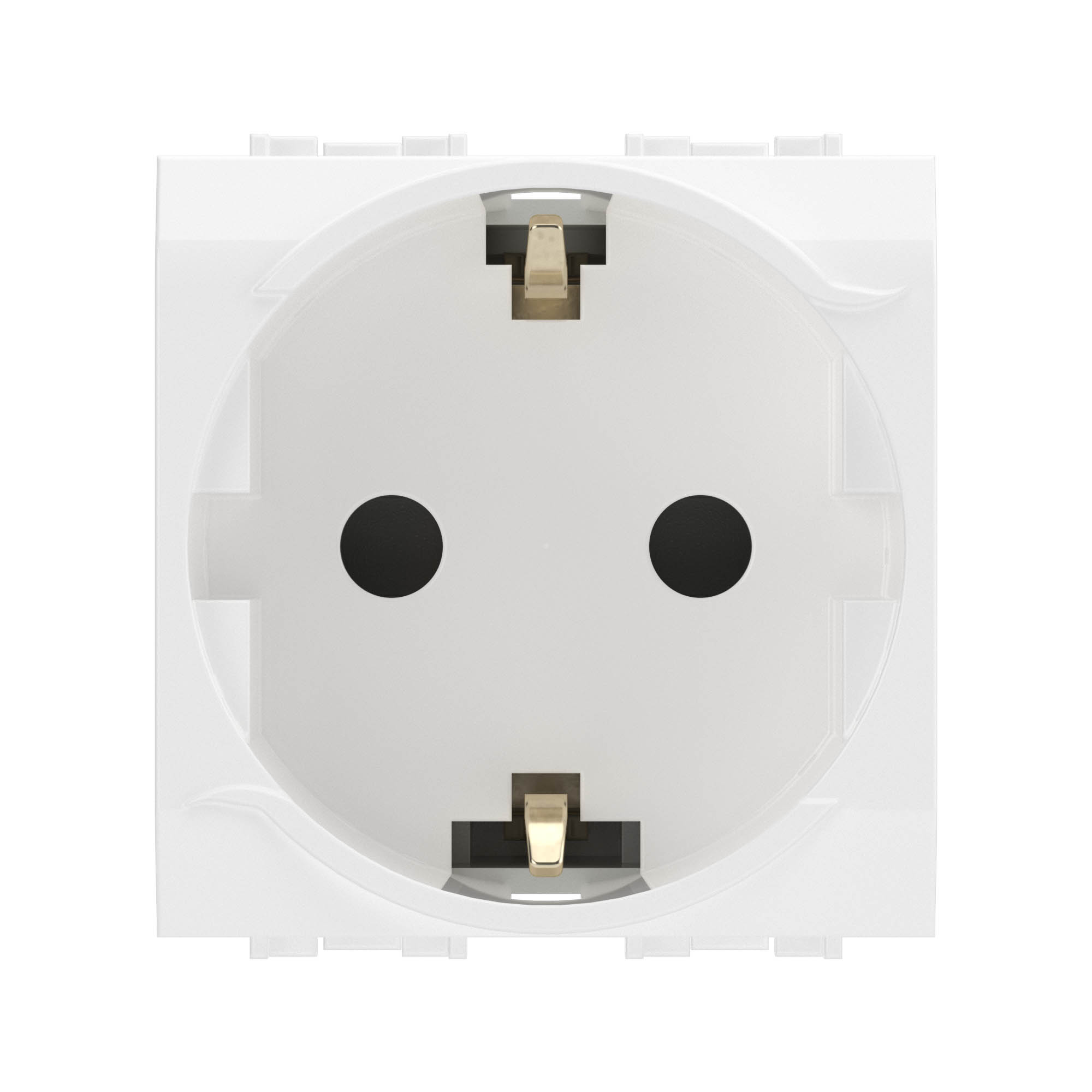

Outlet 2Р+Е, with safety shutters, 2 mod., white
Code:
76482B
Outlet 2Р+Е, with safety shutters, 2 mod., white
Code:
76482B
| Nominal current, A | 16 |
| Nominal voltage, V | 250 |
| Colour | White |
| Model | Protective contact (SCHUKO) |
| Halogen free | Yes |
| Number of units | 1 |
| With hinged lid | Yes |
| Surface protection | Decor |
| With child-protection | Yes |
| Label space/information surface | Yes |
| Material quality | Thermoplastic |
| Over voltage protection | No |
| Fault current protection | No |
| Material | Plastic |
| Type of fastening | Mounting with screw |
| Imprint/indication | Without imprint |
| Surface finishing | Glossy |
| Suitable for degree of protection (IP) | IP20 |

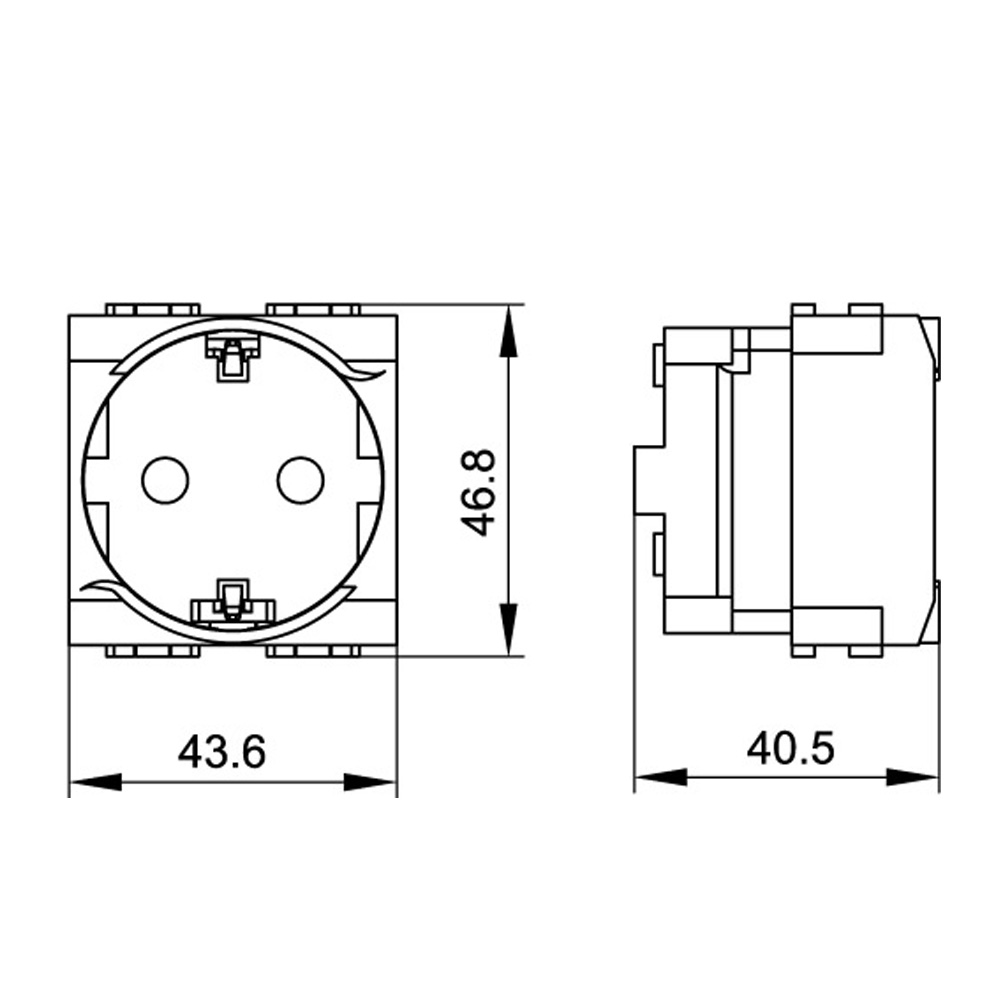

| Width of device, mm | 43.6 |
| Height of device, mm | 46.8 |
| Depth of device, mm | 40.5 |
| With function lighting | No |
| With orientation lighting | No |
| Special power supply | No special power supply |
| Connection type | Screwed terminal |
| Antibacterial treatment | Yes |
| Mounting method | Surface mounted (plaster) |
| With on/off switch | No |
| Modular version | Yes |
| Temperature of mounting, °C | 5°С ... +60°С |
| Width (nominal), mm | 43 |
| Ingress Protection rating, IP | IP20 |
| Temperature of operation, °C | 5°С ... +60°С |
| Temperature of operation, °C | +60°C |
| Climate version | UHL3 |
| Height (nominal), mm | 43 |
| Fire protection | It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012 |
| Color | White |
| Type of installation | Modular product |
| Product type | Socket |
| Number of modules | 2 |
