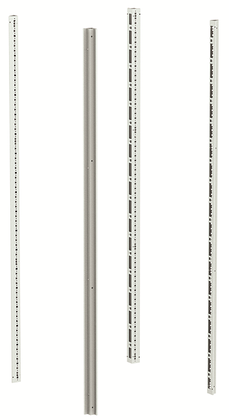

Stands vertical, H = 2200mm, without additional fixtures, 4pcs.

Code: R5KMN22
Stands vertical, H = 2200mm, without additional fixtures, 4pcs.
Stands vertical, H = 2200mm, without additional fixtures, 4pcs.

Stands vertical, H = 2200mm, without additional fixtures, 4pcs.

Code: R5KMN22
Mounting method Screw mounting
Model Systemic
Step less mounting Yes
Length, mm 2200
Material Steel
Number of height units 1
Surface finishing Powder coating
Profile height busbar, mm 2200
Product type Enclosure frame elements
Enclosure type Floor
Material Painted steel
Drawings
Seria Name DWG (dynamic.) Eplan
Metal enclosures - "RAMblock"
Prefabricated outdoor metal cabinets CQE (dynamic blocks)
RAR
8.46 Mb
Metal enclosures - "RAMblock"
Prefabricated outdoor metal cabinets CQE
RAR
169.72 Mb
Metal enclosures - "RAMblock"
Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)
RAR
1.17 Mb
Certificates
Name Document
RAM block - Exemption letter for accessories RAM block_1
PDF
742.54 kB
Test report on hinged welded cabinets ST_UHL1_1
PDF
196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"
PDF
5.99 MB
All types of cable trays, ducts, welded and modular cases -Russian Maritime Register of Shipping_1
PDF
1.42 MB
Fire Safety Compliance Certificate for CQE Floor Enclosures
PDF
281.44 kB
