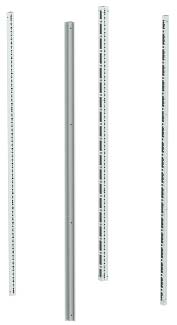

Stands vertical, H = 1600mm, without additional fixtures, 4pcs.

Stands vertical, H = 1600mm, without additional fixtures, 4pcs.

Code: R5KMN16

Stands vertical, H = 1600mm, without additional fixtures, 4pcs.

Stands vertical, H = 1600mm, without additional fixtures, 4pcs.

To ask a question

Color	gray
Height, mm	1600

Thickness, mm

1.5

Mounting method	Screw mounting
Model	Systemic
Step less mounting	Yes
Length, mm	1600

Material	Steel
Number of height units	1
Type of surface	With powder coating
Profile height busbar, mm	1600

Drawings

Seria	Name	Eplan	DWG (dynamic blocks)
RAMblock - metal enclosures	Prefabricated outdoor metal cabinets CQE	RAR 169.72 MB
RAMblock - metal enclosures	Prefabricated outdoor metal cabinets CQE (dynamic blocks)		RAR 8.46 MB
RAMblock - metal enclosures	Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)		RAR 1.17 MB

Certificates

Name	Document
RAM block - Exemption letter for accessories RAM block_1	PDF 742.54 kB
Test report on hinged welded cabinets ST_UHL1_1	PDF 196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"	PDF 5.99 MB
All types of cable trays, ducts, welded and modular cases -Russian Maritime Register of Shipping_1	PDF 1.42 MB
Fire Safety Compliance Certificate for CQE Floor Enclosures	PDF 281.44 kB
