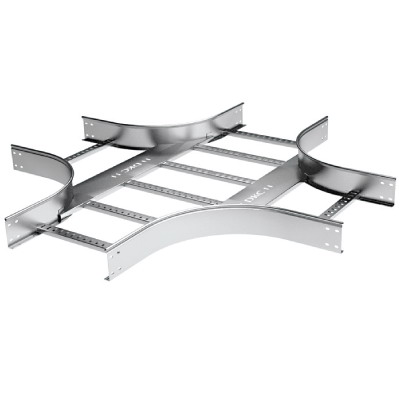

Horizontal cross 50х400 R300
Code: LX5304
Horizontal cross 50х400 R300
Code: LX5304
| Colour | Light grey |
| Surface protection | Sendzimir galvanized |
| Type of rung | Perforated profile |
| Material quality | Steel |
| Material | Steel |
| Inner radius, mm | 300 |
| Cable ladder width, mm | 400 |
| Cable ladder height, mm | 50 |
| Stainless steel, pickled | No |
| Wide span model | No |
| Type of side joist | Profile (open) |
| Suitable for circuit integrity | No |
| Product type | System accessories |
| Type of accessories | Horizontal cross |
| Height | 50 mm |
| Side rail thickness | 1.2 mm |
| Material | Pre-galvanized |
| Width | 400 mm |
| 19 мм | 300 mm |

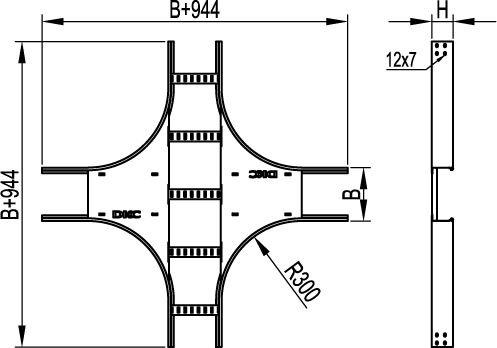

Drawings
| Seria | Name | AVEVA | Intergraph | DWG (dynamic.) | SAT | STEP | Autodesk Revit |
|---|---|---|---|---|---|---|---|
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
Certificates
| Name | Document |
|---|---|
