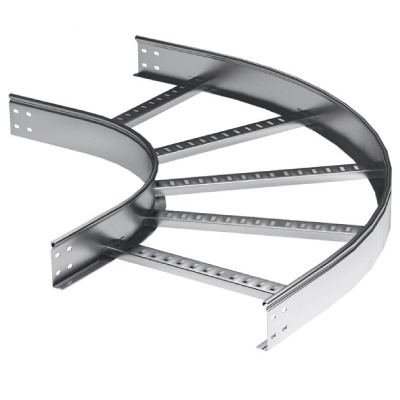

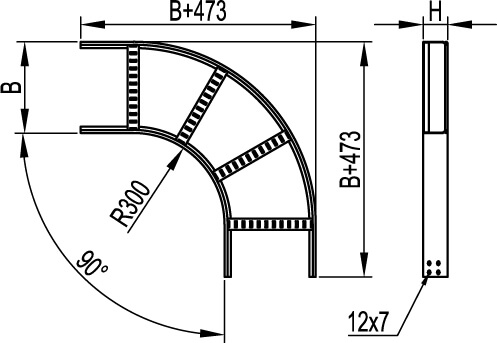

Horizontal bend 90° 50x400 R300
Code: LC5340
Horizontal bend 90° 50x400 R300
Code: LC5340
| Surface protection | Sendzimir galvanized |
| Type of rung | Perforated profile |
| Material | Steel |
| Inner radius, mm | 300 |
| Type of side joist | Profile (open) |
| Deflection (angle) | 90° |
| Cable ladder width, mm | 400 |
| Cable ladder height, mm | 50 |
| Change of direction | Horizontal |
| Side wall perforation | No |
| Material quality | Steel |
| Stainless steel, pickled | No |
| Wide span model | No |
| Suitable for circuit integrity | No |
| Product type | System accessories |
| Type of accessories | 90º Horizontal bend |
| Height | 50 mm |
| Side rail thickness | 1.2 mm |
| Material | Pre-galvanized |
| Width | 400 mm |
| 19 мм | 300 mm |
