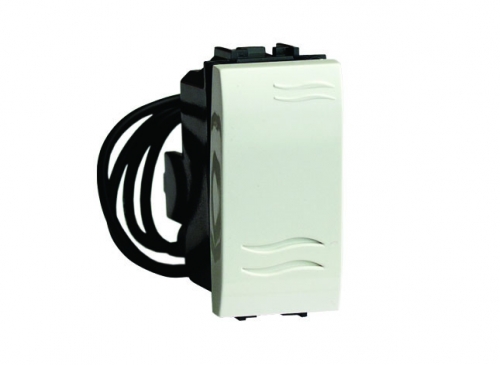

Single pole bellpush, with backlight, 1 mod., beige
Code:
75021SL
Single pole bellpush, with backlight, 1 mod., beige
Code:
75021SL
| Model | Single push button |
| Modular version | Yes |
| With lighting | No |
| Width of device, mm | 21.5 |
| Height of device, mm | 43 |
| Number of modules (module system) | 1 |
| Nominal voltage, V | 230 |
| Assembly arrangement | Basic element with central cover plate |
| Method of operation | Push button |
| Colour | Beige |
| Rated current, A | 10 |
| Material | Plastic |
| Number of rockers | 1 |
| Suitable for degree of protection (IP) | IP20 |
| Mounting method | Surface mounted (plaster) |
| Color | Ivory |
| Temperature of mounting, °C | 5°С ... +60°С |
| Width (nominal), mm | 21.5 |
| Ingress Protection rating, IP | IP20 |
| Temperature of operation, °C | 5°С ... +60°С |
| Temperature of operation, °C | +60°C |
| Climate version | UHL3 |
| Height (nominal), mm | 43 |
| Fire protection | It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012 |
| Type of installation | Modular product |
| Product type | Switch |
| Number of modules | 1 |
