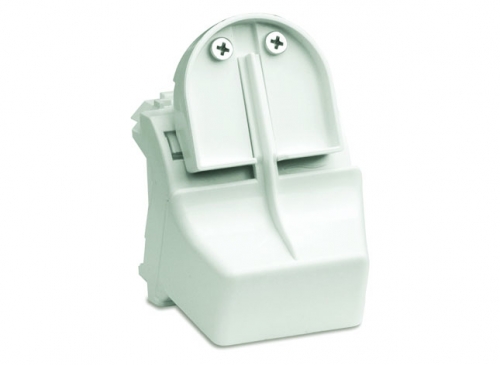

Adapter for 2 fiber jacks ST, with lock-seal, 2 mod., white
Code:
76618B
Adapter for 2 fiber jacks ST, with lock-seal, 2 mod., white
Code:
76618B
| Mounting method | Junction box insert for underfloor installation |
| Assembly arrangement | Central cover plate |
| Colour | White |
| With hinged lid | No |
| Utilization | Bore hole |
| Surface protection | Decor |
| Outlet direction | Straight |
| Imprintable label | Without indication field |
| Suitable for number of connectors | 2 |
| Material | Plastic |
| Type of fastening | Engage (snap) |
| Surface finishing | Glossy |
| Suitable for degree of protection (IP) | IP20 |
| Width of device, mm | 43.8 |
| Height of device, mm | 46.8 |
| Depth of device, mm | 19.5 |
| Number of modules (module system) | 2 |
| Color | White |
| Material of case | ABC-plastic |
| Temperature of mounting, °C | 5°С ... +60°С |
| Width (nominal), mm | 43 |
| Ingress Protection rating, IP | IP20 |
| Temperature of operation, °C | 5°С ... +60°С |
| Temperature of operation, °C | +60°C |
| Climate version | UHL3 |
| Height (nominal), mm | 43 |
| Fire protection | It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012 |
| Type of installation | Modular product |
| Product type | Adapter |
| Number of modules | 1 |
