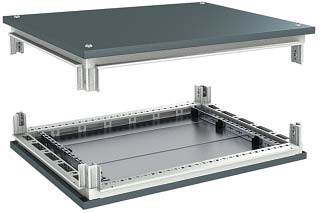

The kit, roof and base for cabinets of CQE, 1000 x 1000 mm

Code: R5KTB1010
The kit, roof and base for cabinets of CQE, 1000 x 1000 mm
The kit, roof and base for cabinets of CQE, 1000 x 1000 mm
Colour Grey
Width, mm 1000
Model Other
Height, mm 1800
Depth, mm 1000
Suitable for aeration/de-aeration No
Suitable for enclosure building width, mm 1000
Suitable for enclosure building depth, mm 1000
Material Steel
Suitable for outdoor set-up No
Suitable for cable patch No
Thickness, mm 1.5
Depth, mm 1000
Drawings
Seria Name Eplan DWG (dynamic blocks)
RAMblock - metal enclosures
Prefabricated outdoor metal cabinets CQE
RAR
169.72 MB
RAMblock - metal enclosures
Prefabricated outdoor metal cabinets CQE (dynamic blocks)
RAR
8.46 MB
RAMblock - metal enclosures
Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)
RAR
1.17 MB
