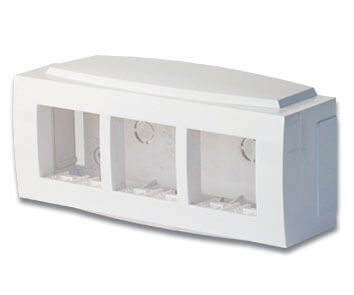

Box for outlet Brava, 6 mod.
Code: 09221
Box for outlet Brava, 6 mod.
Code: 09221
Model | Open |
Number of units | 3 |
Type of device | Grid size 45 |
Material | Plastic |
Mounting method installation unit | Snap |
Strain relief possibility | No |
With connection space | No |
Mounting method box | Other |
Mounting track | Other |
Number of modules | 6 |
Color | White |
Material | ABC-plastic |
Length, mm | 184 |
Temperature of mounting, °C | 5°С ... +60°С |
Width (nominal), mm | 93 |
Ingress Protection rating, IP | IP40 |
Temperature of operation, °C | 5°С ... +60°С |
Temperature of operation, °C | +60°C |
Climate version | UHL4 |
Q'ty of bays | 1 |
Height (nominal), mm | 61 |
Fire protection | It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012 |
Product type | Mounting box |
Type of installation | overhead installation |
Number of modules | 6 |
