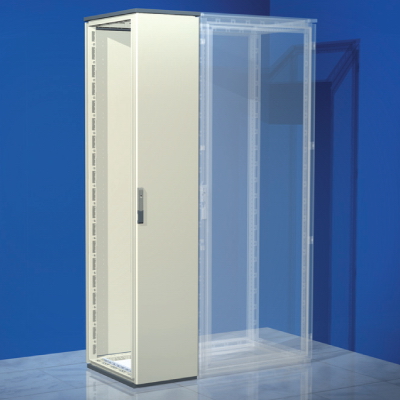

Assembled cabinet CQE, without doors and back panel, 2200 x 300 x 800mm

Code: R5CQE2238S

Height, mm	2200
Width, mm	300

Climate version	UHL1
Depth, mm	800

Degree of protection (IP)	IP55
Suitable for outdoor set-up	Yes
Suitable for metrical mounting	Yes
Mounting plate depth-adjustable	Yes
Tackable	Yes
With ventilation door	No
Type of surface	With powder coating
Surface mounting	Yes
With backside door	No
Flush-mounted installation	No

Busbar isolator 20х19 m6

Code: ISBK2033

Busbar isolator 25х22 m6

Code: ISBK2827

Busbar isolator 30х30 m8

Code: ISBK3056

Busbar isolator 30х30 m6

Code: ISBK3049

Busbar isolator 40х41 m6

Code: ISBK4047

Busbar isolator 50х36 m6

Code: ISBK5044

Busbar isolator 12х10 m3

Code: ISBK1209

Busbar isolator 16х15 m4

Code: ISBK1506

Busbar isolator 16х15 m5

Code: ISBK1563

Busbar isolator 20х19 m4

Code: ISBK2009

Seria	Name	Eplan	DWG	STEP	DWG (dynamic blocks)
RAMblock - metal enclosures	Prefabricated outdoor metal cabinets CQE	RAR 169.72 MB
RAMblock - metal enclosures	Modular Cabinet CQE, without doors and rear panel, 2200 x 300 x 800 mm		RAR 1.35 MB	RAR 2.82 MB
RAMblock - metal enclosures	Prefabricated outdoor metal cabinets CQE (dynamic blocks)				RAR 8.46 MB
RAMblock - metal enclosures	Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)				RAR 1.17 MB

Name	Document
RAM block - Exemption letter for enclosures RAM block_1	PDF 3.69 MB
RAM block - Exemption letter for accessories RAM block_1	PDF 742.54 kB
RAM block - Test report for assembled metal enclosures CQE on the seismic stability_2	PDF 844.06 kB
RAM block - Test report for assembled metal enclosures CQE on the vibration_1	PDF 805.39 kB
RAM block - Certificate of conformity to GOST R for RAM block	PDF 5.54 MB
RAM block - Test report for assembled metal enclosures CQE for accordance with GOST 15150 (UHL1)	PDF 2.11 MB
Test report on hinged welded cabinets ST_UHL1_1	PDF 196.35 kB
protocol_preliminary results of heat stability	PDF 187.18 kB
Test reports on the current 100kA_"RAM block"_11	PDF 280.85 kB
Test reports on the current 6300 Amps_ "RAM block"_1	PDF 294.38 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"	PDF 5.99 MB
All types of cable trays, ducts, welded and modular cases -Russian Maritime Register of Shipping_1	PDF 1.42 MB
Certificate or Ruassian maritime register for floor enclosures CQE	PDF 664.44 kB
Russian Maritime Register of Shipping_1	PDF 8.60 MB
Certificate of conformity to GOST 14254-2015 for the Floor-mounted universal assembled enclosures series CQE (IP55, IP65)	PDF 419.92 kB
Fire Safety Compliance Certificate for CQE Floor Enclosures	PDF 281.44 kB
