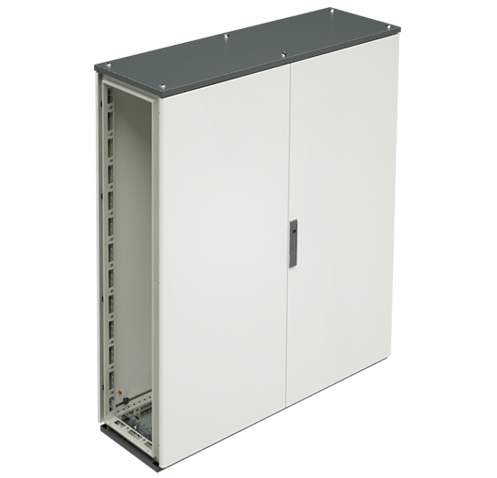

CQE Assembled cabinet with blank door and rear panel 2000x1000x400 mm

Code: R5CQE20104A
CQE Assembled cabinet with blank door and rear panel 2000x1000x400 mm
CQE Assembled cabinet with blank door and rear panel 2000x1000x400 mm
Colour Grey
Width, mm 1000
Height, mm 2000
Depth, mm 400
RAL-number 7035
With mounting plate No
Number of doors 1
Number of locks 1
EMC-version No
With glazed door No
Floor mounting possible Yes
Material Steel
Wall mounting possible No
Degree of protection (IP) IP55
Suitable for outdoor set-up Yes
Suitable for metrical mounting Yes
Mounting plate depth-adjustable Yes
Tackable Yes
With ventilation door No
Type of surface With powder coating
Surface mounting Yes
With backside door No
Flush-mounted installation No
