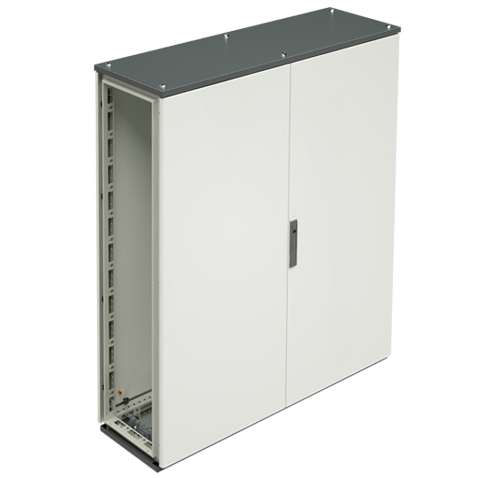

CQE Assembled cabinet with blank door and rear panel 1800x800x400 mm

Code: R5CQE1884A
Colour Grey
Width, mm 800
Height, mm 1800
Depth, mm 400
RAL-number 7035
With mounting plate No
Number of doors 1
Number of locks 1
EMC-version No
With glazed door No
Floor mounting possible Yes
Material Steel
Wall mounting possible No
Degree of protection (IP) IP55
Suitable for outdoor set-up Yes
Suitable for metrical mounting Yes
Mounting plate depth-adjustable Yes
Tackable Yes
With ventilation door No
Type of surface With powder coating
Surface mounting Yes
With backside door No
Flush-mounted installation No
Drawings
Seria Name Eplan DWG DWG (dynamic blocks)
