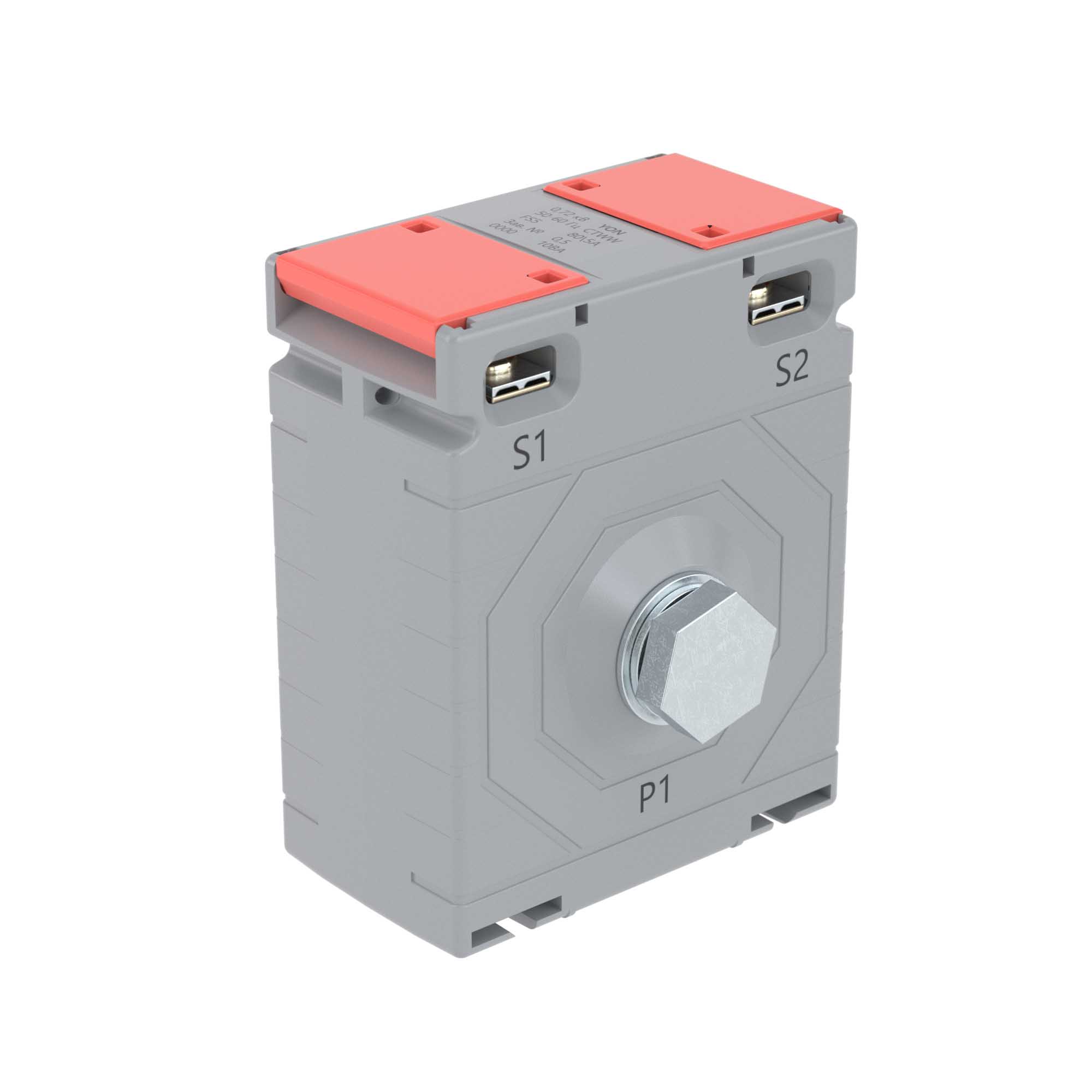

current transformer CTWW 80/5A, accuracy class - 0.80, power - 5VA

Code: CTWW-80-0.5-5
current transformer CTWW 80/5A, accuracy class - 0.80, power - 5VA
current transformer CTWW 80/5A, accuracy class - 0.80, power - 5VA
Code: CTWW-80-0.5-5
  • To ask a question
  • Characteristics
  • Accessories
  • The accompanying goods
  • Promo
  • Viewed items
Model Attachable current transformer
Accuracy class 0.5
Number of primary inputs 1
With copper rail Yes
Primary rated current, A 80
Snap mounting No
Secondary connection Screw connection
Secondary rated current, A 5
Over current limiting factor FS 5
With shock protection Yes
Primary winding current 80 A
Secondary winding current 0.20833333333333
Accuracy class 0.5
