current transformer CT80 600/5A, accuracy class - 0.600, power - 5VA

Code: CT80-600-0.5-5
current transformer CT80 600/5A, accuracy class - 0.600, power - 5VA
current transformer CT80 600/5A, accuracy class - 0.600, power - 5VA
Code: CT80-600-0.5-5
  • To ask a question
  • Characteristics
  • Accessories
  • The accompanying goods
  • Promo
  • Viewed items
Model Single-phase current converter
Accuracy class 0.5

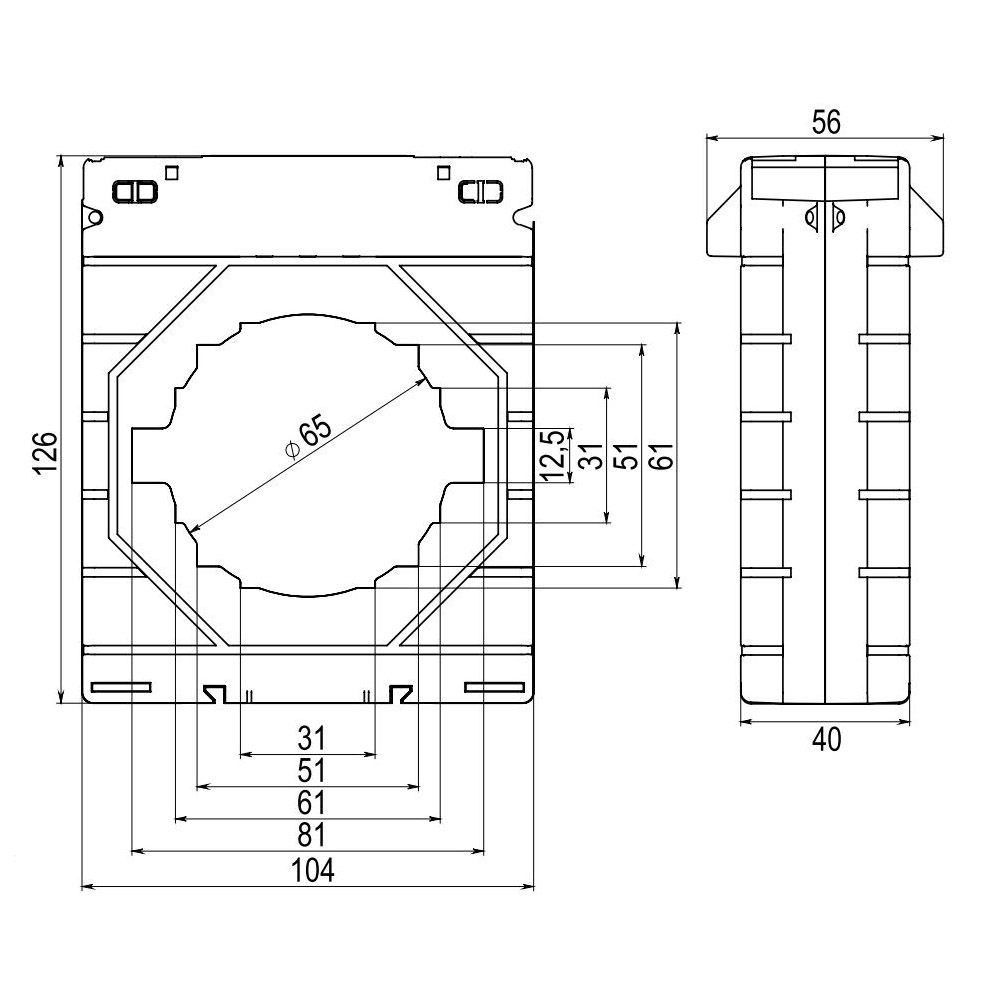

Width opening, mm 80
Height opening, mm 60
Opening diameter, mm 65
Number of primary inputs 1
With copper rail No
Primary rated current, A 600
Snap mounting No
Secondary connection Cable
Secondary rated current, A 5
Over current limiting factor FS 5
With shock protection Yes
Marking CT80-600-0.5-5
Series YON CT
Primary winding current 600 A
Secondary winding current 0.20833333333333
Accuracy class 0.5
Hole width 80 mm
