current transformer CT60 300/5A, accuracy class - 0.2S-2.300, power - 2.5VA

Code: CT60-300-0.2S-2.5
current transformer CT60 300/5A, accuracy class - 0.2S-2.300, power - 2.5VA
current transformer CT60 300/5A, accuracy class - 0.2S-2.300, power - 2.5VA
Code: CT60-300-0.2S-2.5
  • To ask a question
  • Characteristics
  • Accessories
  • The accompanying goods
  • Promo
  • Viewed items
Model Single-phase current converter
Accuracy class 0.25

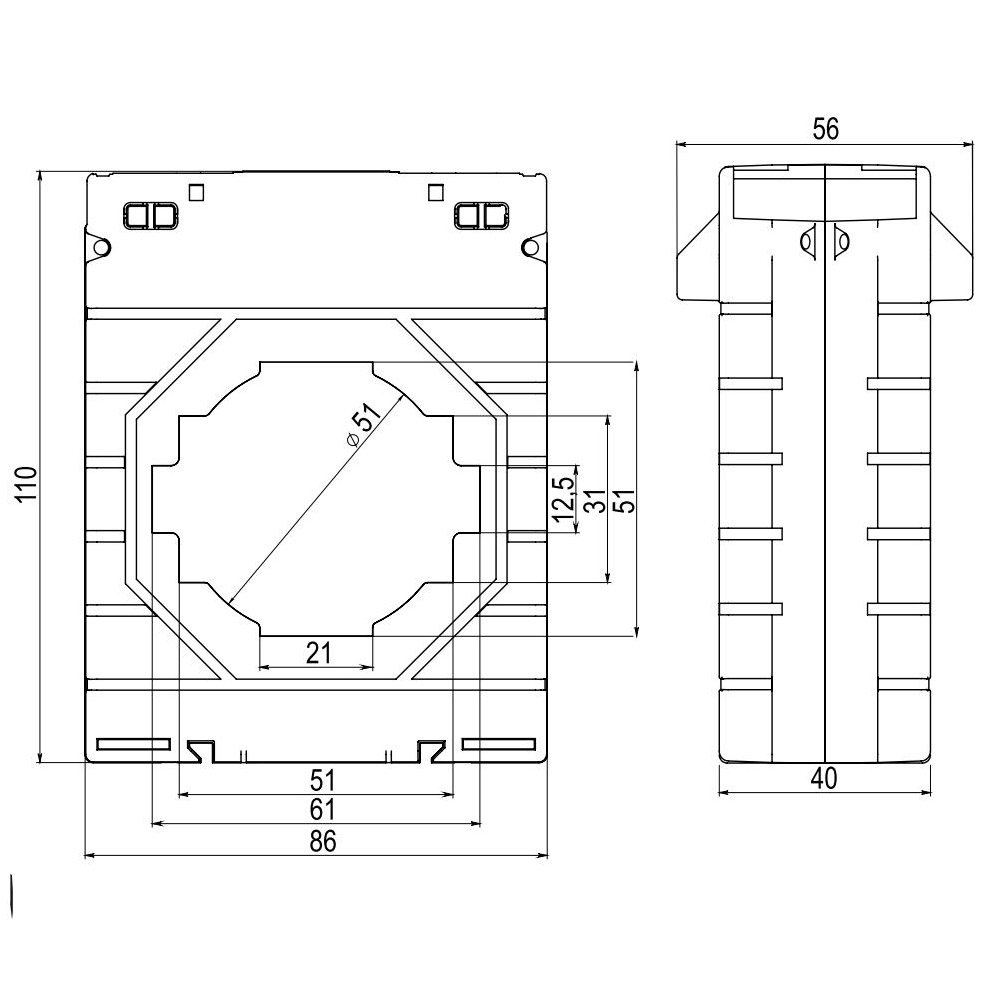

Width opening, mm 61
Height opening, mm 51
Opening diameter, mm 51
With copper rail No
Primary rated current, A 300
Snap mounting No
Secondary connection Screw connection
Secondary rated current, A 5
With shock protection Yes
Accuracy class 0,2S
Primary winding current 300 A
Secondary winding current 0.20833333333333
Accuracy class 0.2S
Hole width 60 mm
