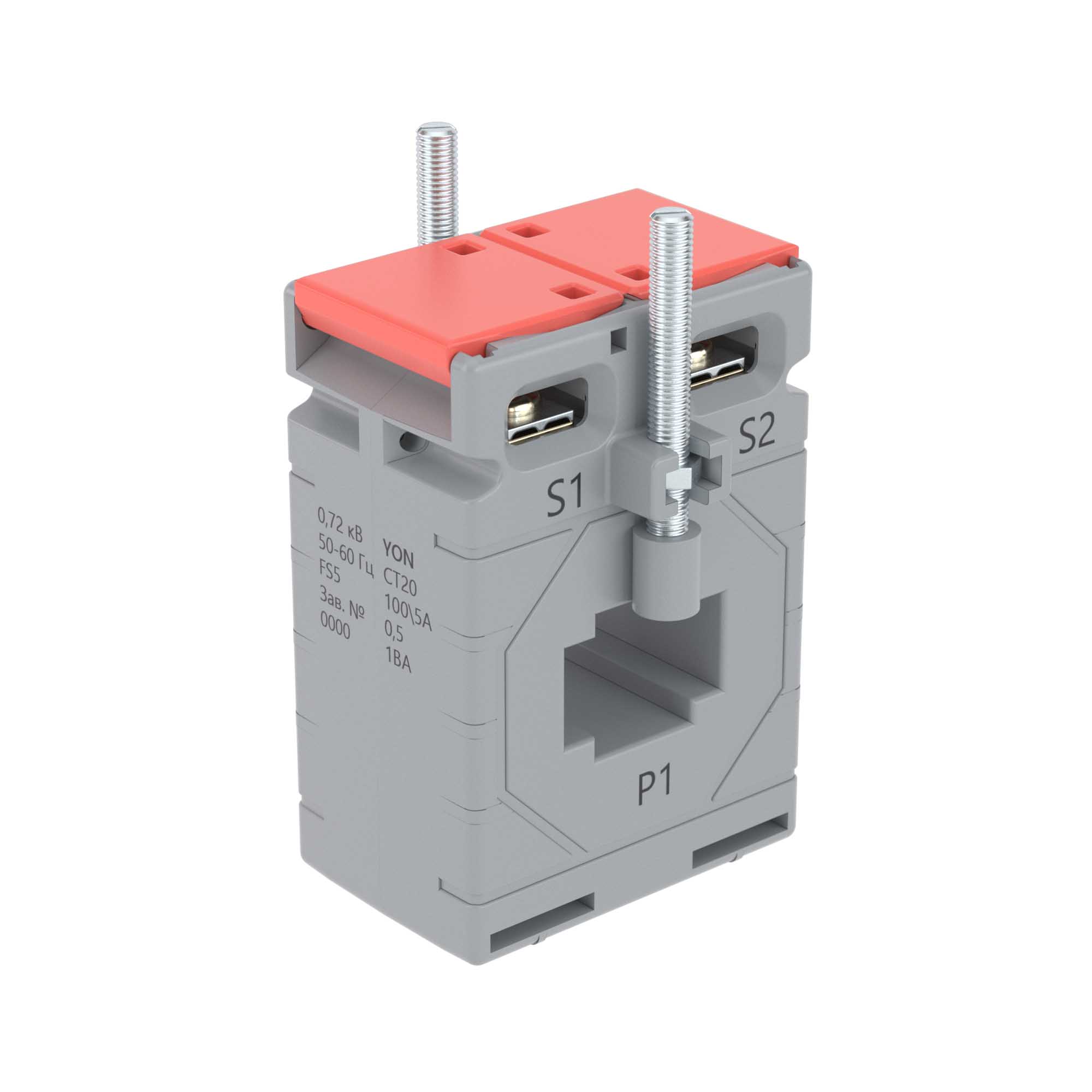

current transformer CT20 200/5A, accuracy class - 0.5-2.200, power - 2.5VA

Code: CT20-200-0.5-2.5
current transformer CT20 200/5A, accuracy class - 0.5-2.200, power - 2.5VA
current transformer CT20 200/5A, accuracy class - 0.5-2.200, power - 2.5VA
Code: CT20-200-0.5-2.5
  • To ask a question
  • Characteristics
  • Accessories
  • The accompanying goods
  • Promo
  • Viewed items
Model Single-phase current converter
Accuracy class 0.5
Width opening, mm 20
Height opening, mm 15
Opening diameter, mm 15
Number of primary inputs 1
With copper rail No
Primary rated current, A 200
Snap mounting No
Secondary connection Cable
Secondary rated current, A 5
Over current limiting factor FS 5
With shock protection Yes
Marking CT20-200-0.5-2.5
Series YON CT
Primary winding current 200 A
Secondary winding current 0.20833333333333
Accuracy class 0.5
Hole width 20 mm
