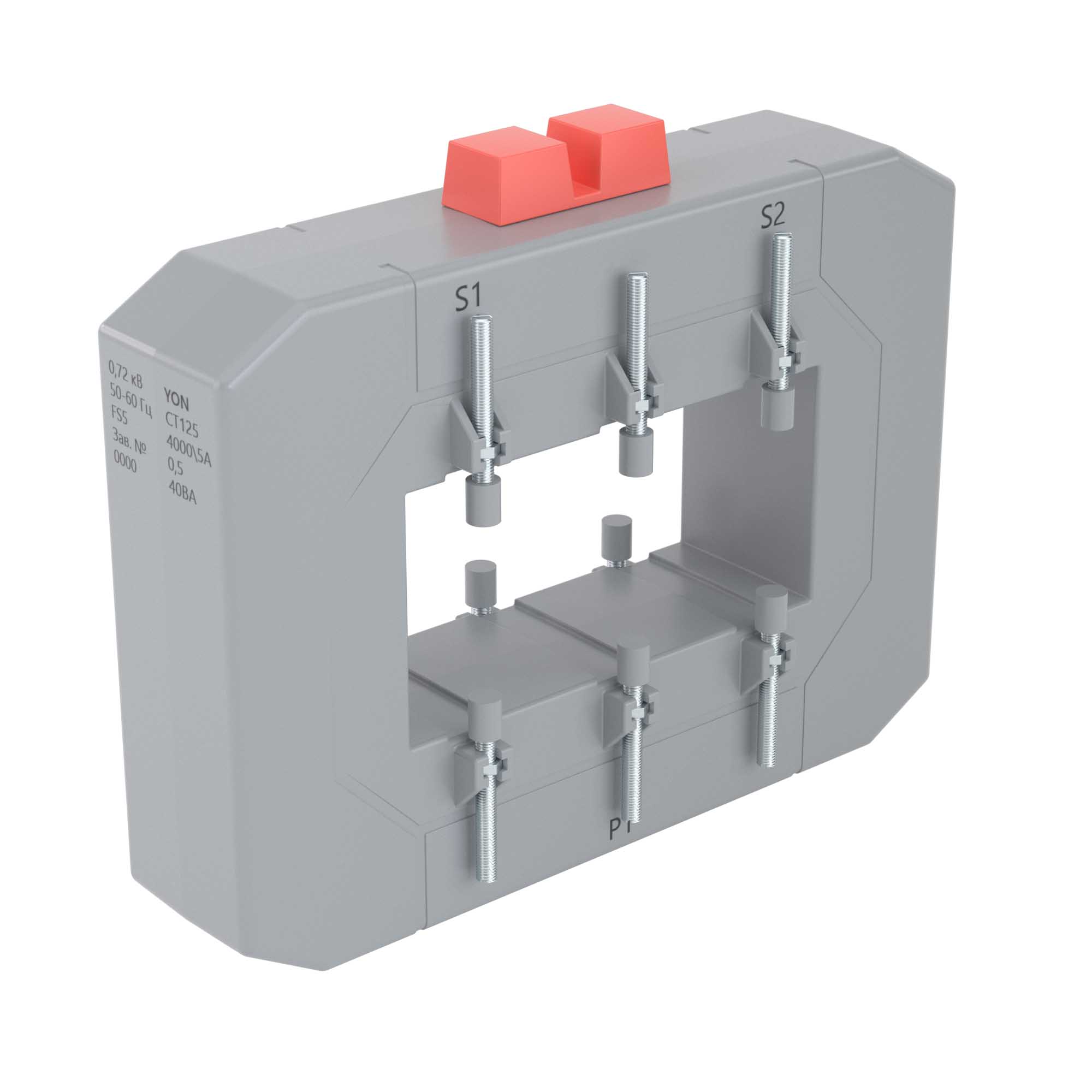

Current transformer CT125 1250/5А, accuracy class -0.5S, power - 15ВА

Code: CT125-1250-0.5S-15
Current transformer CT125 1250/5А, accuracy class -0.5S, power - 15ВА
Current transformer CT125 1250/5А, accuracy class -0.5S, power - 15ВА
Code: CT125-1250-0.5S-15
  • To ask a question
  • Characteristics
  • Accessories
  • The accompanying goods
  • Promo
  • Viewed items
Model Single-phase current converter
Accuracy class 0.5

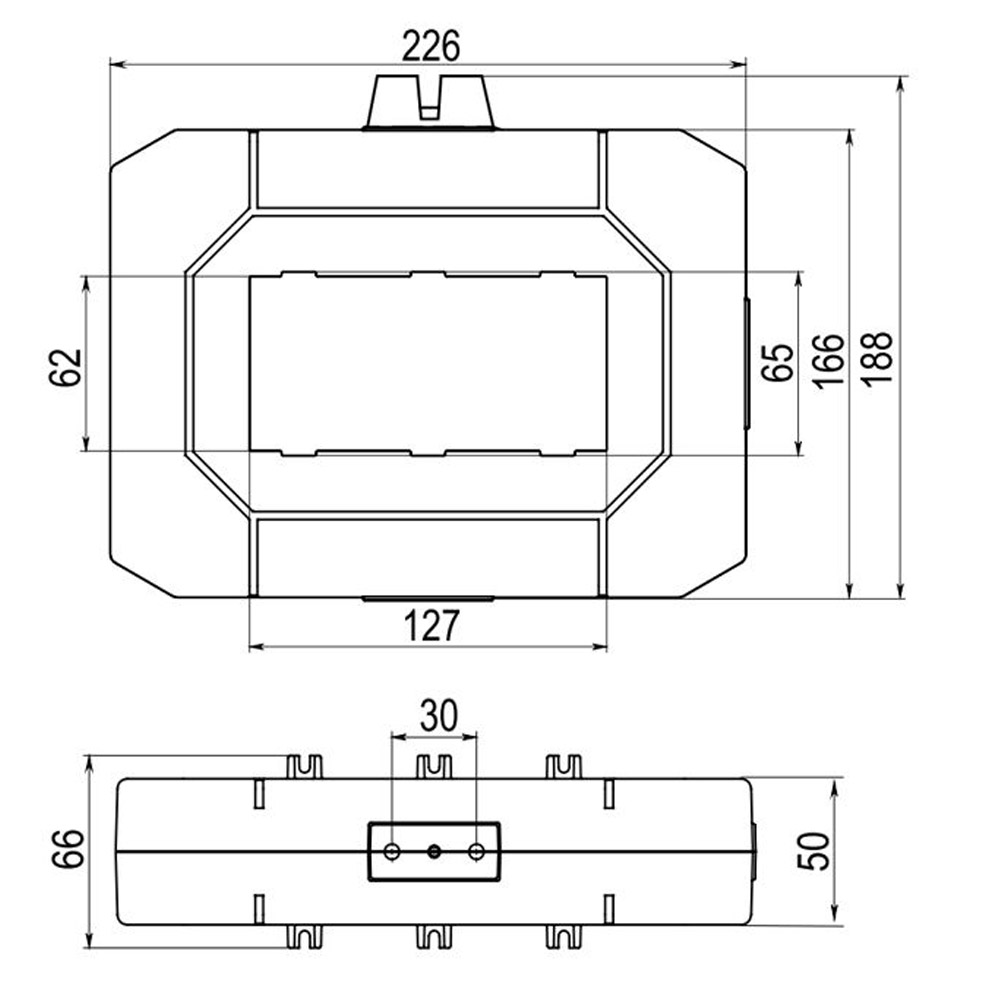

Width opening, mm 127
Height opening, mm 62
Opening diameter, mm 62
Number of primary inputs 1
With copper rail No
Primary rated current, A 1250
Snap mounting No
Secondary connection Cable
Secondary rated current, A 5
Over current limiting factor FS 5
With shock protection Yes
Marking CT125-1250-0.5S-15
Series YON CT
Primary winding current 1250 A
Secondary winding current 0.20833333333333
Accuracy class 0.5S
Hole width 127 mm
