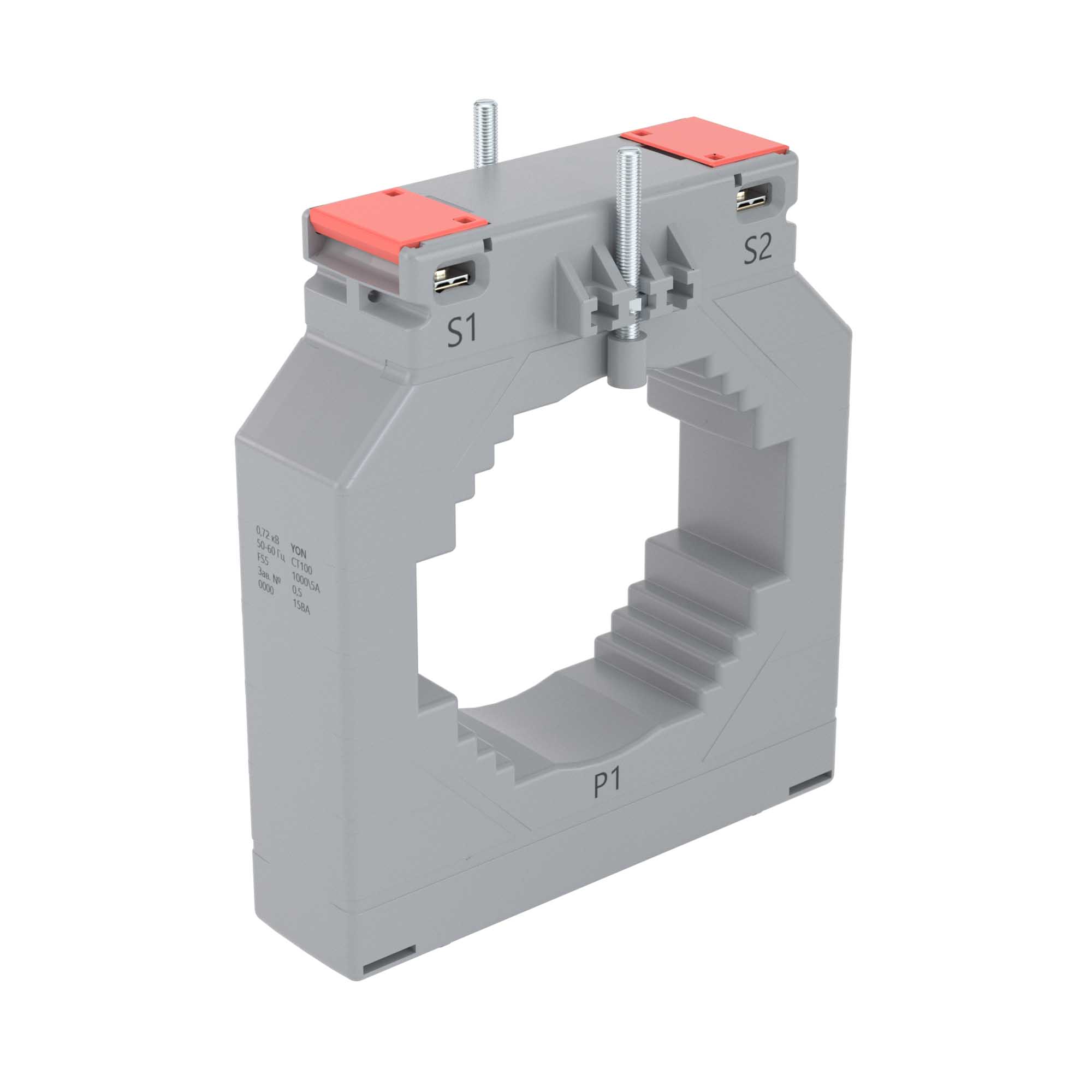

Current transformer CT100 600/5А, accuracy class -0.2S, power - 3.75ВА
Code: CT100-600-0.2S-3.7
Current transformer CT100 600/5А, accuracy class -0.2S, power - 3.75ВА
Code: CT100-600-0.2S-3.7
Model | Single-phase current converter |
Accuracy class | 0.2 |
Calibrated | Yes |
Width opening, mm | 100 |
Height opening, mm | 80 |
Opening diameter, mm | 85 |
Number of primary inputs | 1 |
With copper rail | No |
Primary rated current, A | 600 |
Snap mounting | No |
Secondary connection | Cable |
Secondary rated apparent power, VA | 3.75 |
Secondary rated current, A | 5 |
Over current limiting factor | FS 5 |
With shock protection | Yes |
Primary winding current | 600 A |
Secondary winding current | 0.20833333333333 |
Accuracy class | 0.2S |
Hole width | 100 mm |
