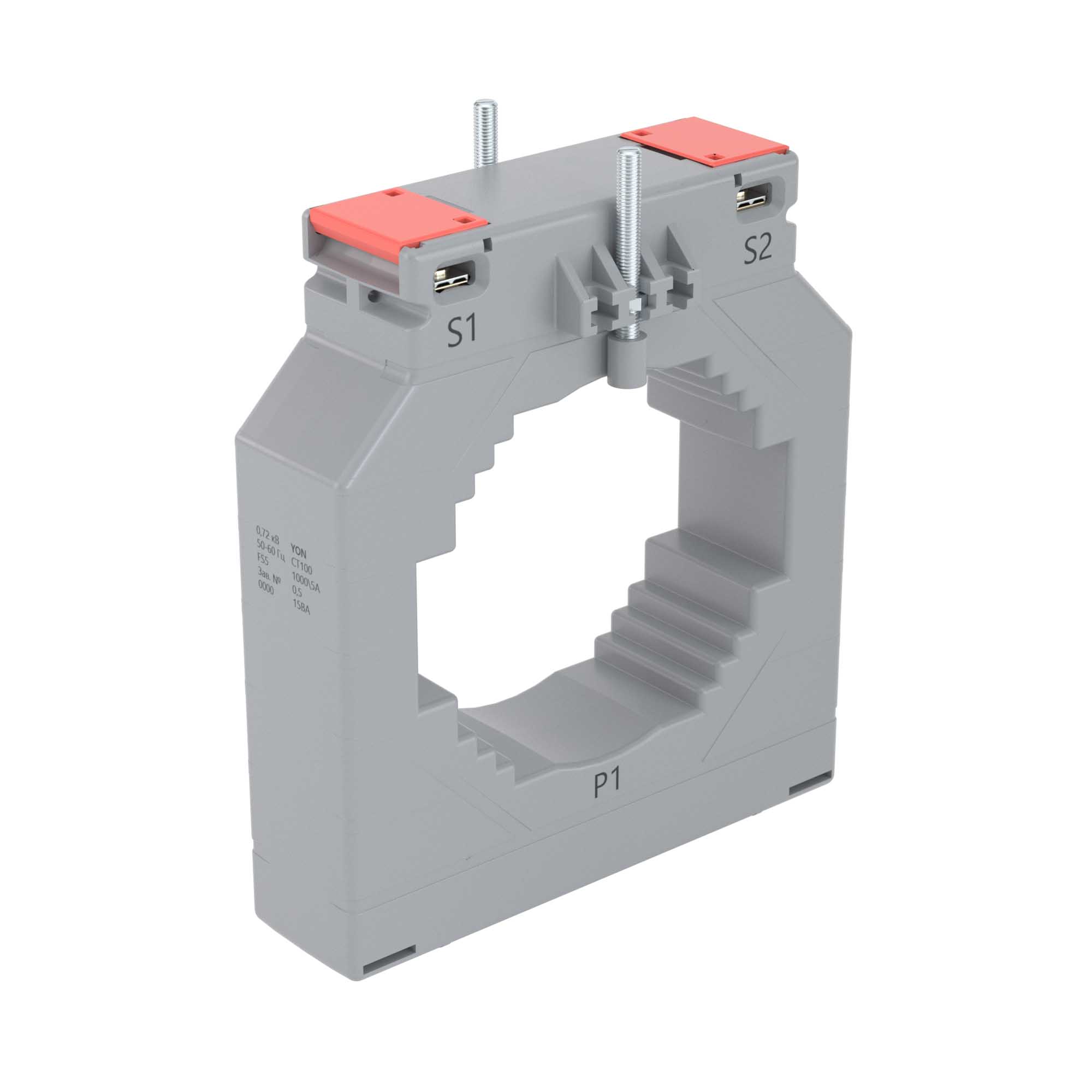

Current transformer CT100 500/5А, accuracy class -0.5S, power - 3.75ВА
Code: CT100-500-0.5S-3.7
Current transformer CT100 500/5А, accuracy class -0.5S, power - 3.75ВА
Code: CT100-500-0.5S-3.7
| Model | Single-phase current converter |
| Accuracy class | 0.5 |
| Calibrated | Yes |
| Width opening, mm | 100 |
| Height opening, mm | 80 |
| Opening diameter, mm | 85 |
| Number of primary inputs | 1 |
| With copper rail | No |
| Primary rated current, A | 500 |
| Snap mounting | No |
| Secondary connection | Cable |
| Secondary rated apparent power, VA | 3.75 |
| Secondary rated current, A | 5 |
| Over current limiting factor | FS 5 |
| With shock protection | Yes |
| Primary winding current | 500 A |
| Secondary winding current | 0.20833333333333 |
| Accuracy class | 0.5S |
| Hole width | 100 mm |
