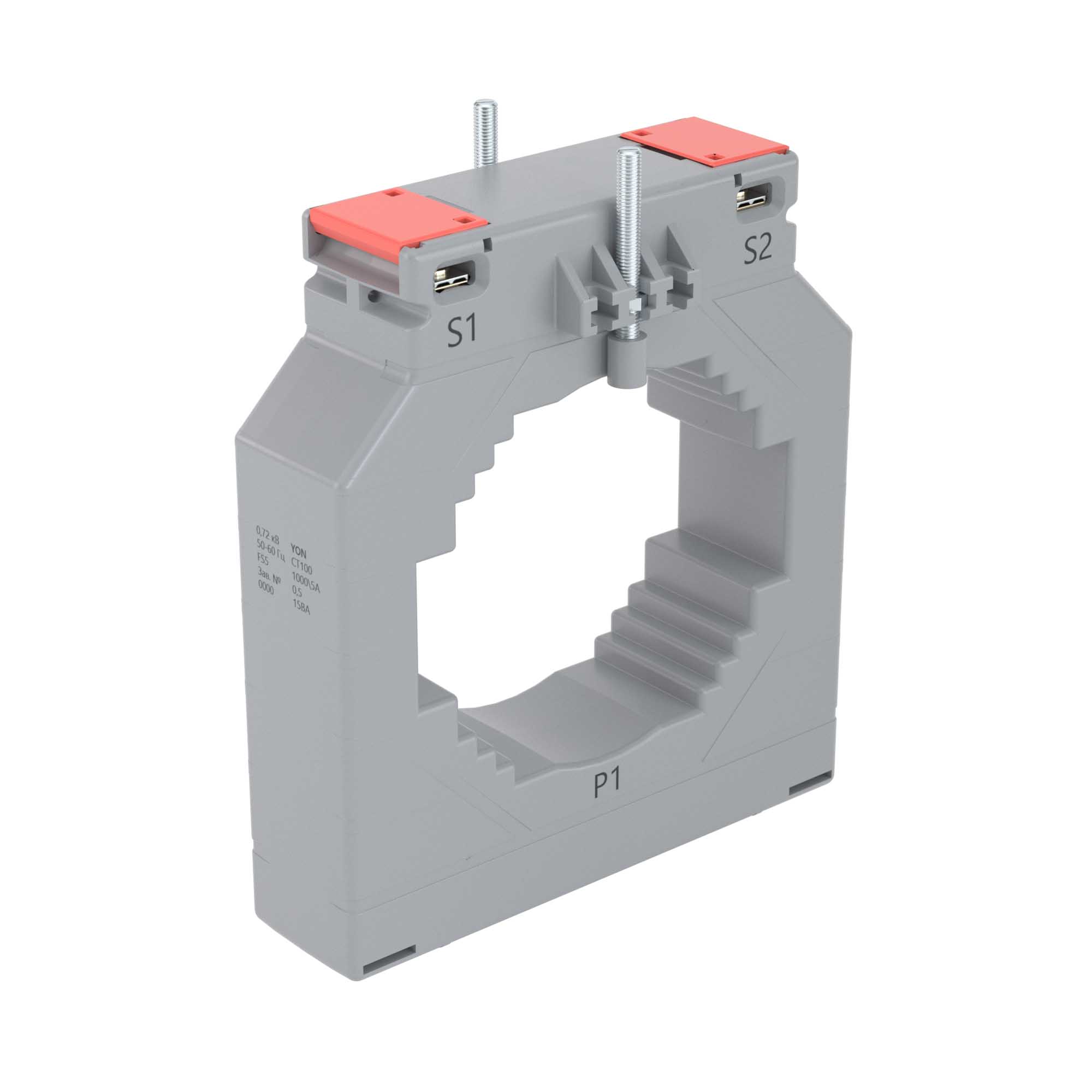

Current transforme CT100 4000/5А, accuracy class-0.5, power -20ВА

Code: CT100-4000-0.5-20
Current transforme CT100 4000/5А, accuracy class-0.5, power -20ВА
Current transforme CT100 4000/5А, accuracy class-0.5, power -20ВА
Code: CT100-4000-0.5-20
  • To ask a question
  • Characteristics
  • Accessories
  • The accompanying goods
  • Promo
  • Viewed items
Model Single-phase current converter
Accuracy class 0.5

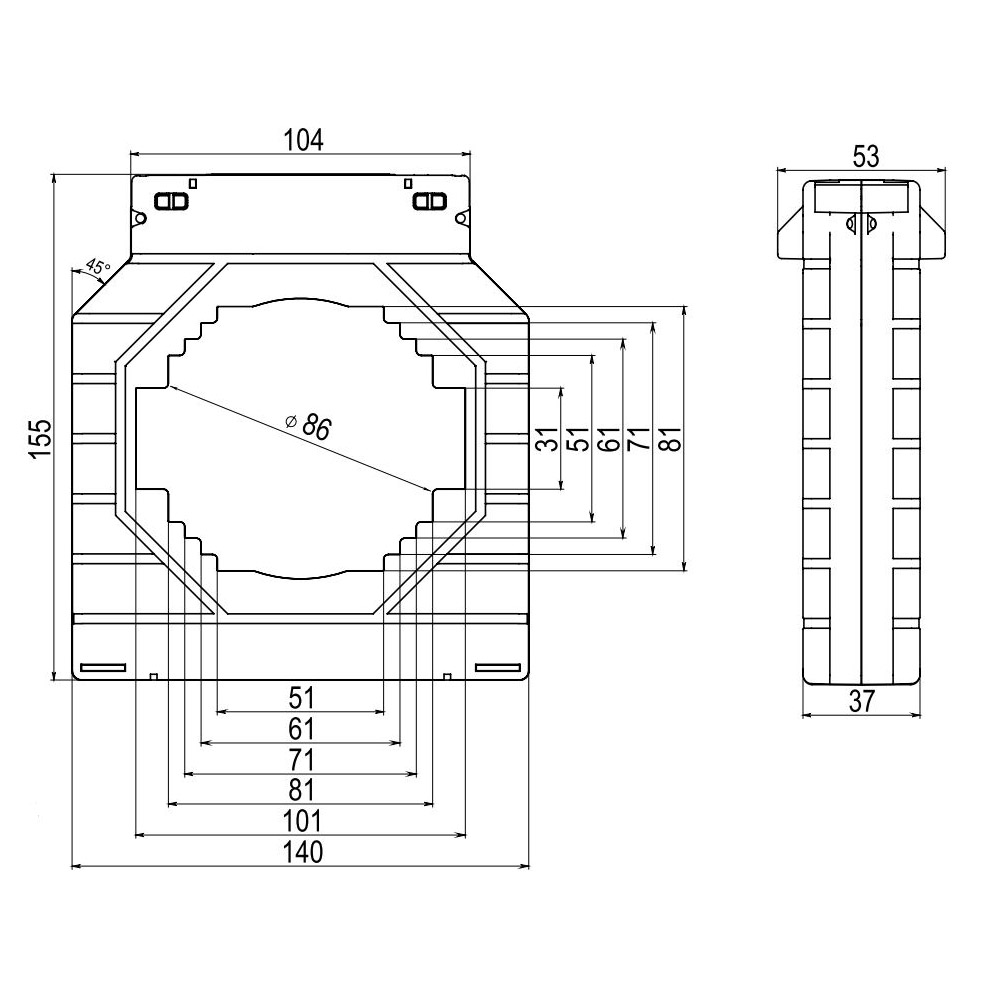

Width opening, mm 101
Height opening, mm 81
Opening diameter, mm 86
With copper rail No
Primary rated current, A 4000
Snap mounting No
Secondary connection Screw connection
Secondary rated current, A 5
With shock protection Yes
Accuracy class 0.5
Primary winding current 4000 A
Secondary winding current 0.20833333333333
Accuracy class 0.5
Hole width 100 mm
