Current transformer CT100 400/5А, accuracy class -0.2, power - 1.5ВА

Code: CT100-400-0.2-1.5

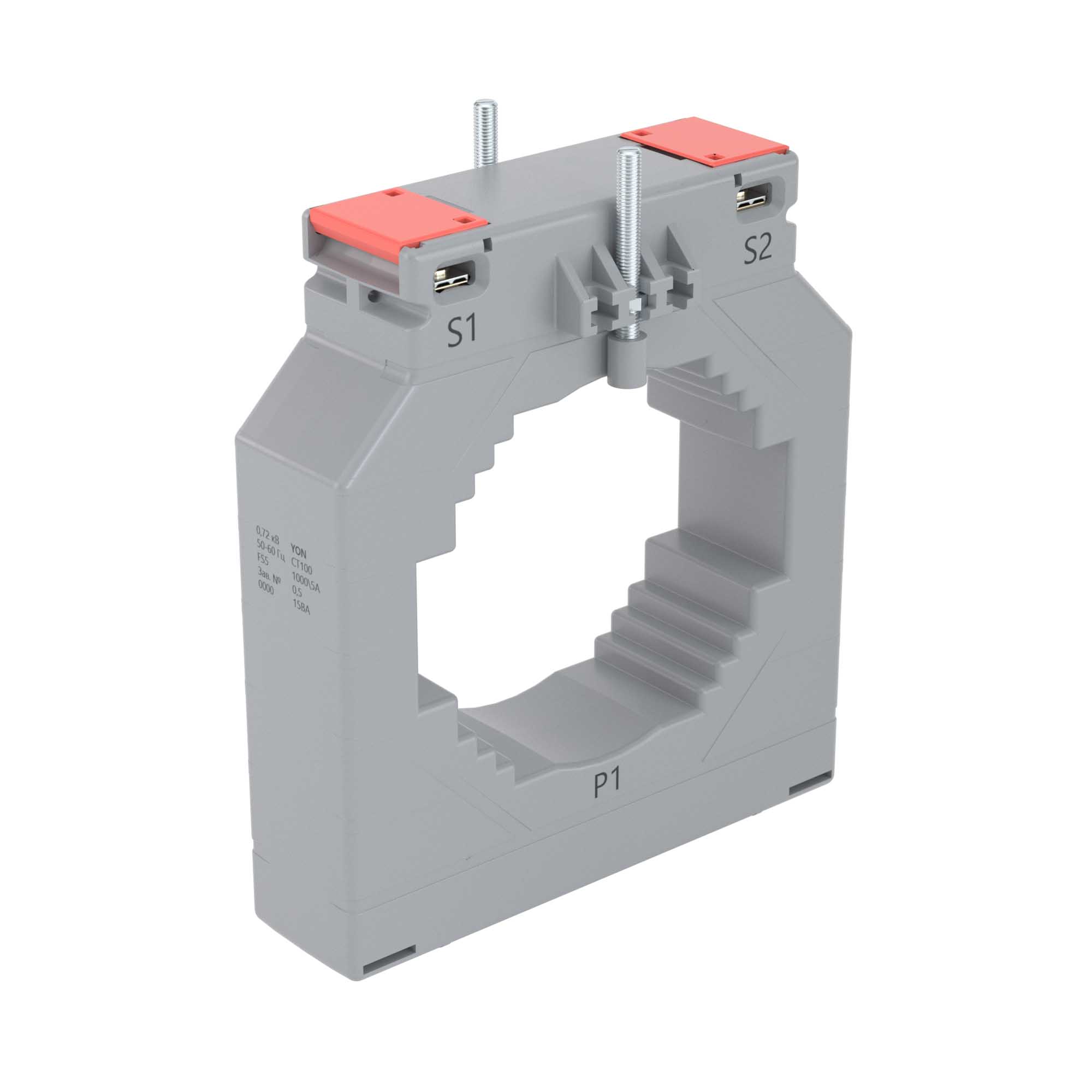

Current transformer CT100 400/5А, accuracy class -0.2, power - 1.5ВА
Current transformer CT100 400/5А, accuracy class -0.2, power - 1.5ВА

Current transformer CT100 400/5А, accuracy class -0.2, power - 1.5ВА

Code: CT100-400-0.2-1.5
Model Single-phase current converter
Accuracy class 0.2
Calibrated Yes
Width opening, mm 100
Height opening, mm 80
Opening diameter, mm 85
Number of primary inputs 1
With copper rail No
Primary rated current, A 400
Snap mounting No
Secondary connection Cable
Secondary rated apparent power, VA 1.5
Secondary rated current, A 5
Over current limiting factor FS 5
With shock protection Yes
Marking CT100-400-0.2-1.5
Series YON CT
Primary winding current 400 A
Secondary winding current 0.20833333333333
Accuracy class 0.2
Hole width 100 mm
