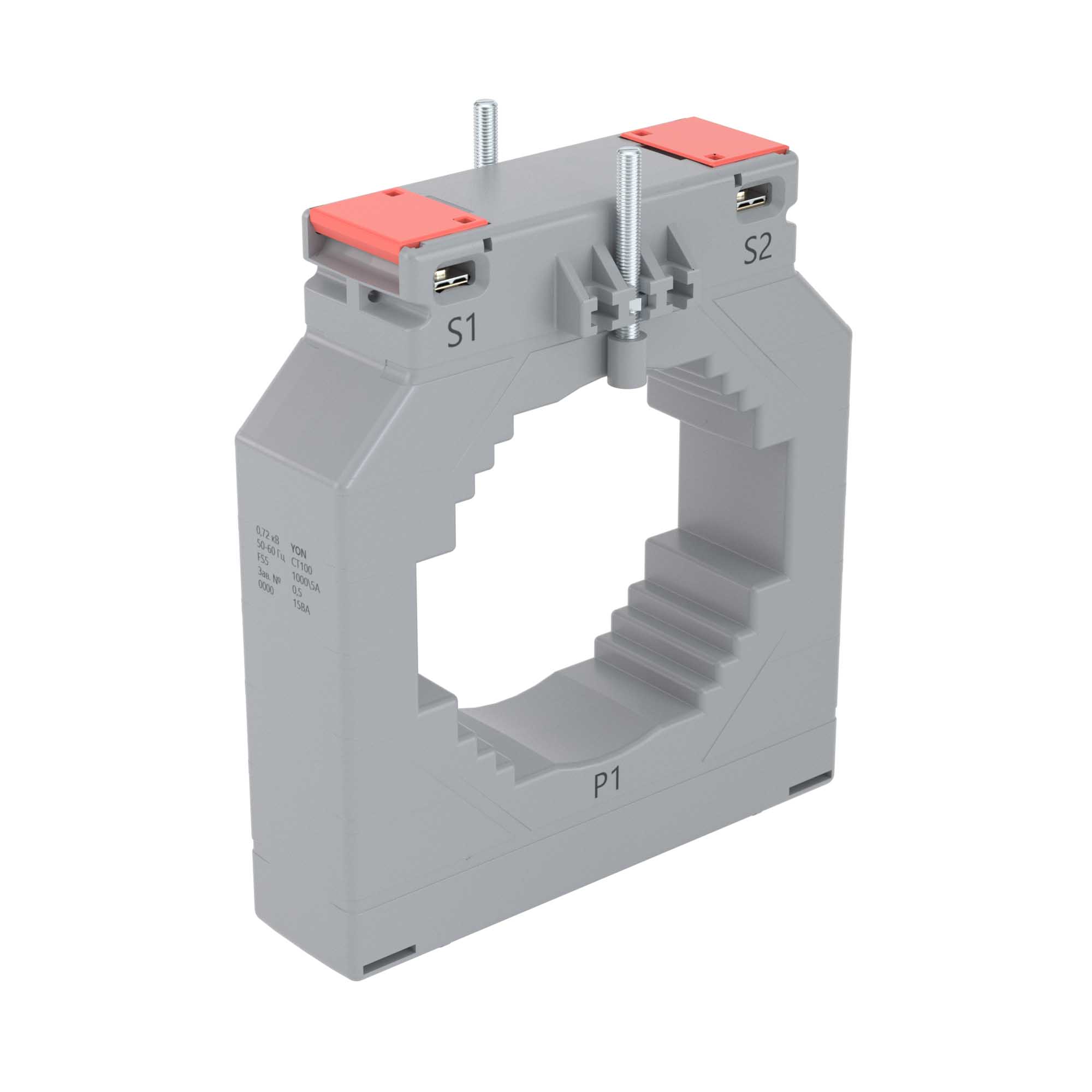

current transformer CT100 3000/5A, accuracy class - 0.3000, power - 20VA

Code: CT100-3000-0.5S-20
current transformer CT100 3000/5A, accuracy class - 0.3000, power - 20VA
current transformer CT100 3000/5A, accuracy class - 0.3000, power - 20VA

current transformer CT100 3000/5A, accuracy class - 0.3000, power - 20VA

Code: CT100-3000-0.5S-20
Model Single-phase current converter
Accuracy class 0.5
Calibrated Yes

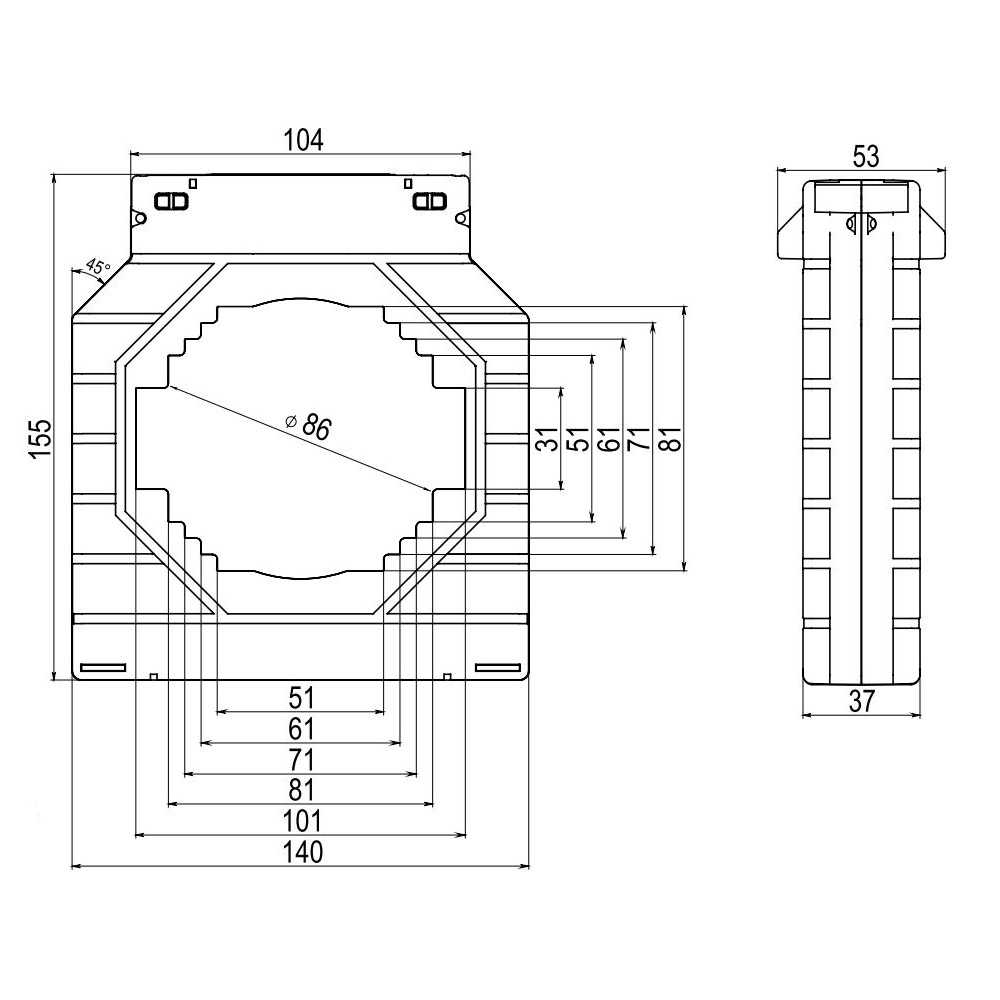

Width opening, mm 100
Height opening, mm 80
Opening diameter, mm 85
Number of primary inputs 1
With copper rail No
Primary rated current, A 3000
Snap mounting No
Secondary connection Cable
Secondary rated apparent power, VA 20
Secondary rated current, A 5
Over current limiting factor FS 5
With shock protection Yes
Marking CT100-3000-0.5S-20
Series YON CT
Primary winding current 3000 A
Secondary winding current 0.20833333333333
Accuracy class 0.5S
Hole width 100 mm
