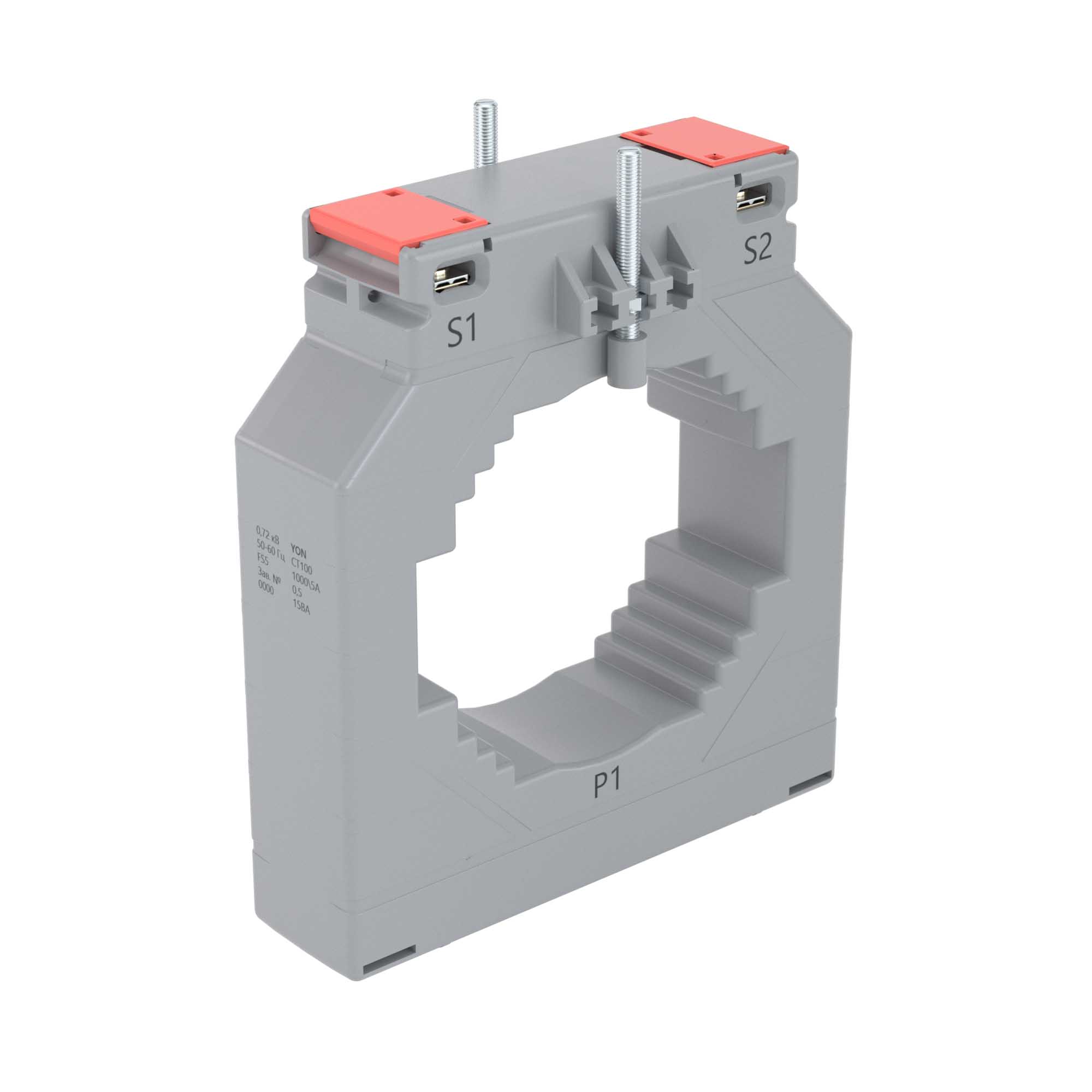

Current transformer CT100 1600/5А, accuracy class -0.5, power - 20ВА
Code: CT100-1600-0.5-20
Current transformer CT100 1600/5А, accuracy class -0.5, power - 20ВА
Code: CT100-1600-0.5-20
| Model | Single-phase current converter |
| Accuracy class | 0.5 |
| Calibrated | Yes |

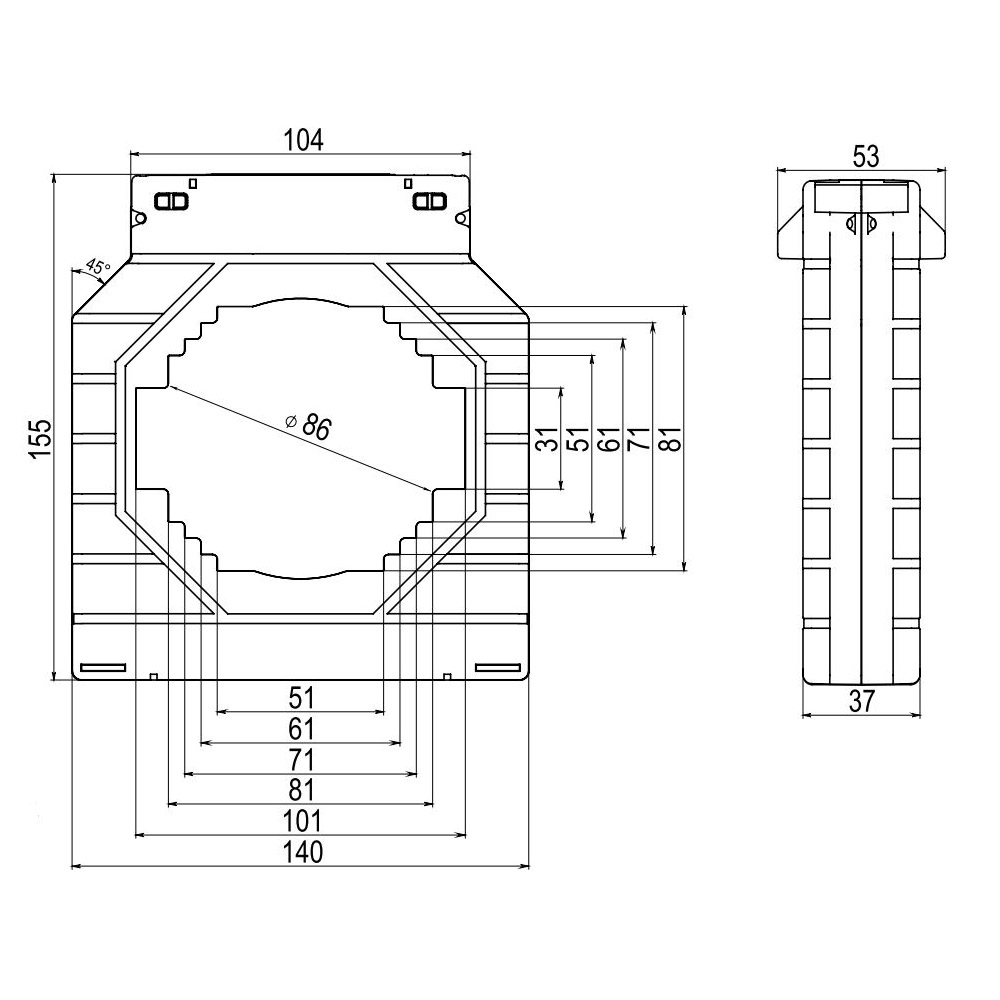

| Width opening, mm | 100 |
| Height opening, mm | 80 |
| Opening diameter, mm | 85 |
| Number of primary inputs | 1 |
| With copper rail | No |
| Primary rated current, A | 1600 |
| Snap mounting | No |
| Secondary connection | Cable |
| Secondary rated apparent power, VA | 20 |
| Secondary rated current, A | 5 |
| Over current limiting factor | FS 5 |
| With shock protection | Yes |
| Primary winding current | 1600 A |
| Secondary winding current | 0.20833333333333 |
| Accuracy class | 0.5 |
| Hole width | 100 mm |
