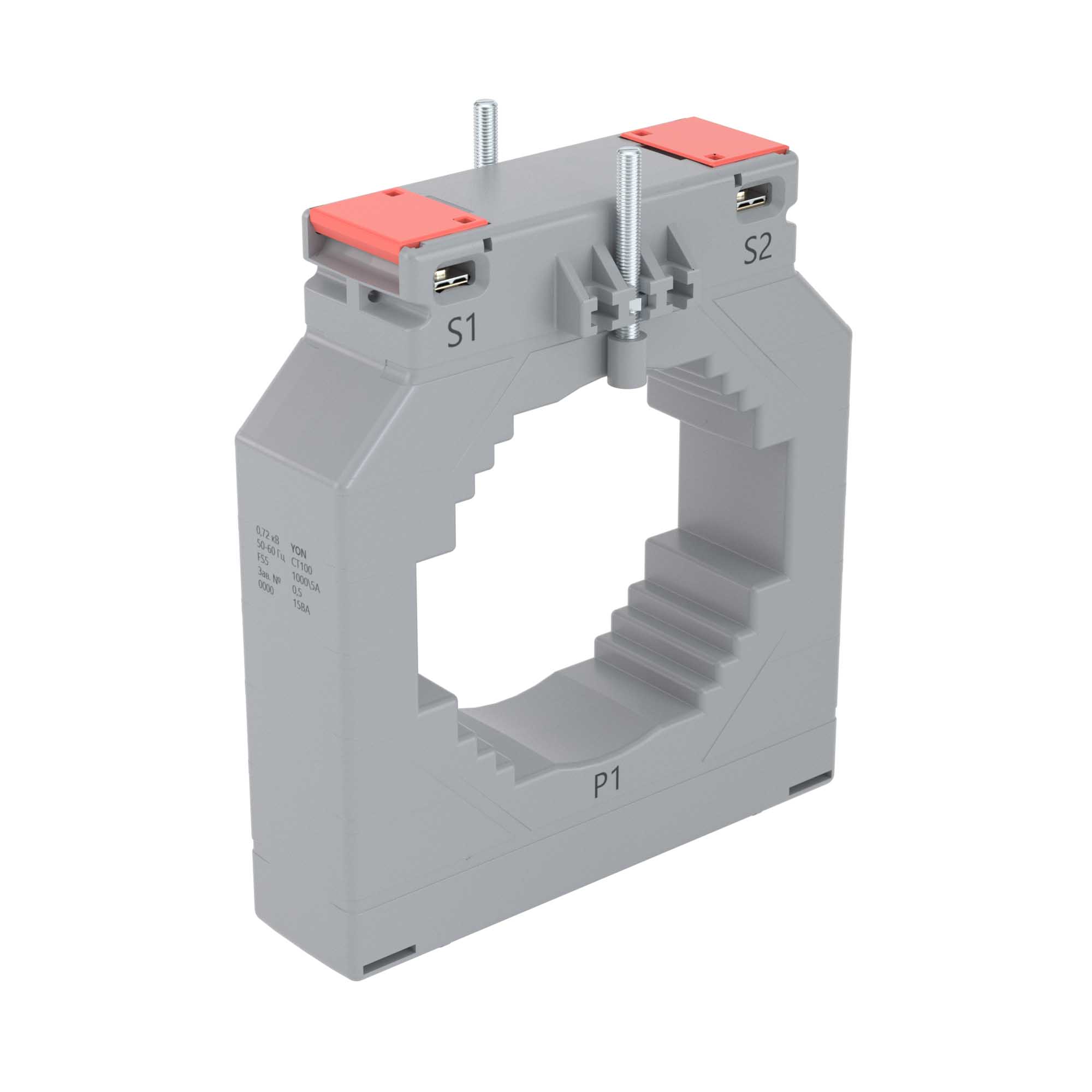

Current transformer CT100 1600/5А, accuracy class -0.2, power - 15ВА

Code: CT100-1600-0.2-15
Current transformer CT100 1600/5А, accuracy class -0.2, power - 15ВА
Current transformer CT100 1600/5А, accuracy class -0.2, power - 15ВА
Code: CT100-1600-0.2-15
  • To ask a question
  • Characteristics
  • Accessories
  • The accompanying goods
  • Promo
  • Viewed items
Model Single-phase current converter
Accuracy class 0.2

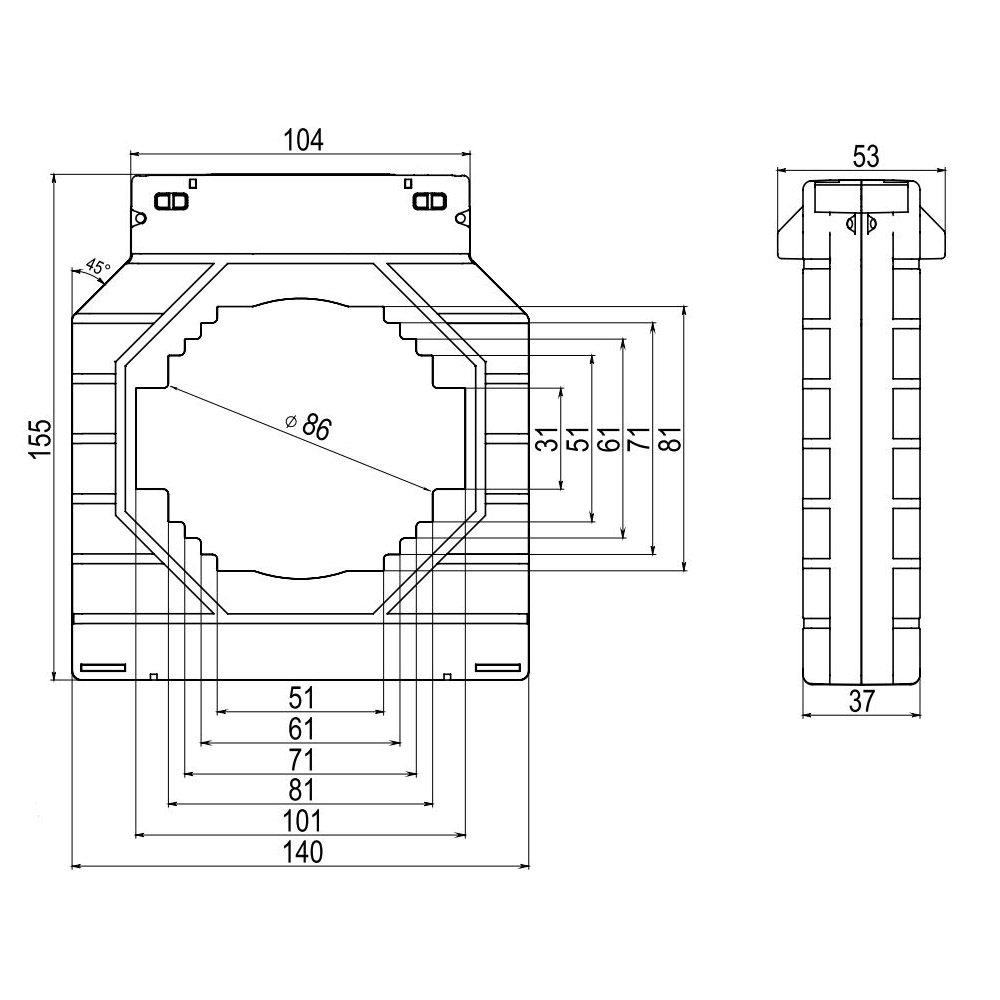

Width opening, mm 100
Height opening, mm 80
Opening diameter, mm 85
Number of primary inputs 1
With copper rail No
Primary rated current, A 1600
Snap mounting No
Secondary connection Cable
Secondary rated current, A 5
Over current limiting factor FS 5
With shock protection Yes
Primary winding current 1600 A
Secondary winding current 0.20833333333333
Accuracy class 0.2
Hole width 100 mm
