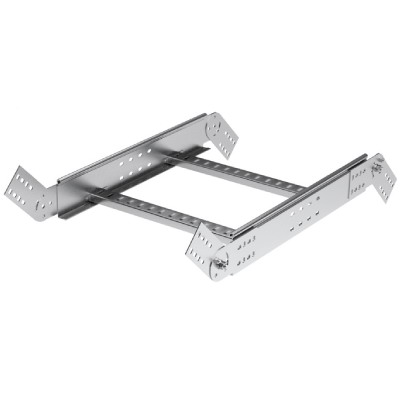

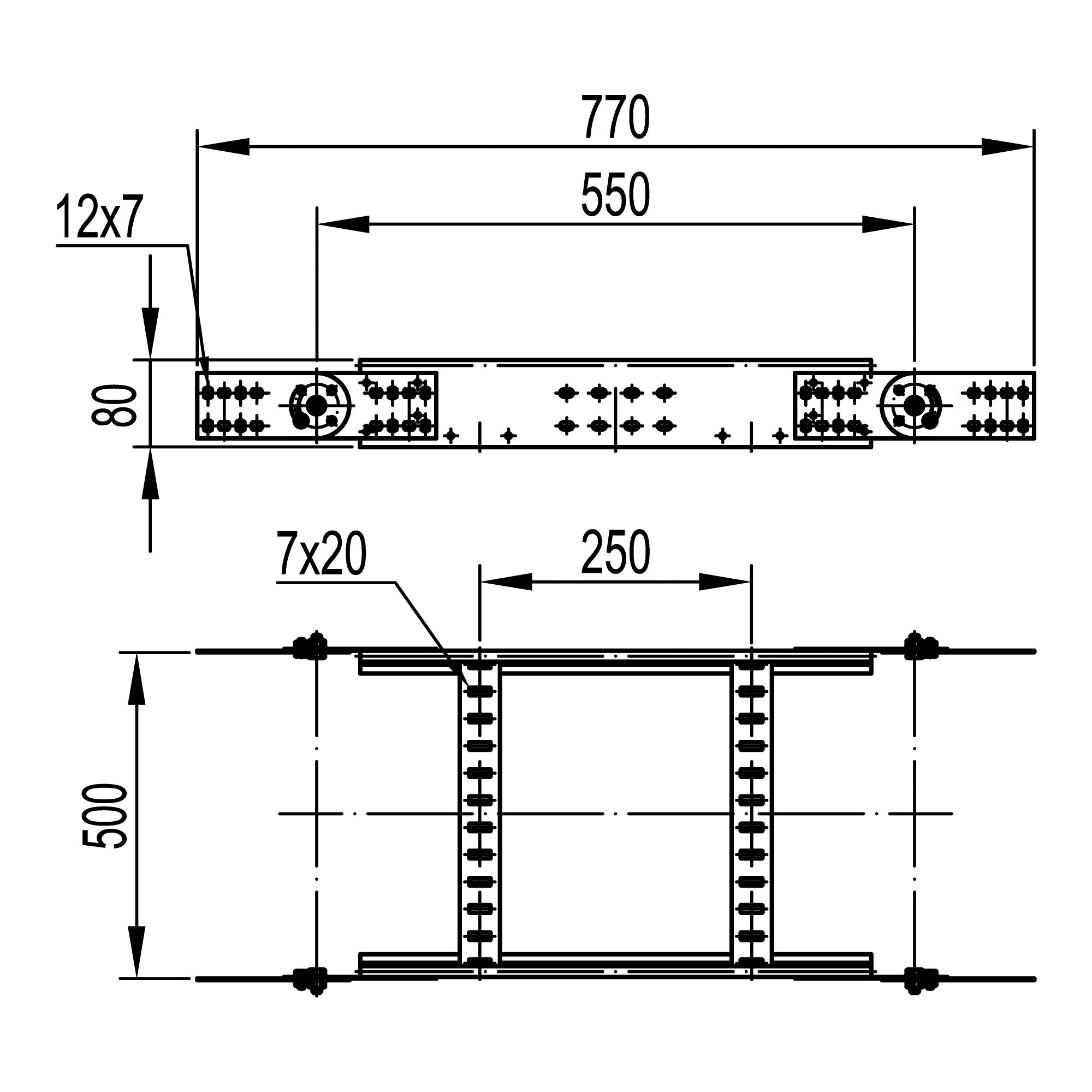

Vertical bend 80х500 ZL included with fasteners (joint plates screws, nuts)
Code: LE8005KZL
Vertical bend 80х500 ZL included with fasteners (joint plates screws, nuts)
Code: LE8005KZL
| Type of side joist | Profile (open) |
| Type of rung | Perforated profile |
| Deflection (angle) | Adjustable |
| Hinging | Yes |
| Cable ladder height, mm | 80 |
| Cable ladder width, mm | 500 |
| Model | Included connector |
| Wide span model | No |
| Suitable for circuit integrity | No |
| Material | Steel |
| Stainless steel, pickled | No |
| Material quality | Steel |
| Surface protection | RV001112 - Цинк-ламельное покрытие |
| Colour | Light grey |
| Side wall perforation | Yes |
| Bend model | Segmental bend |
