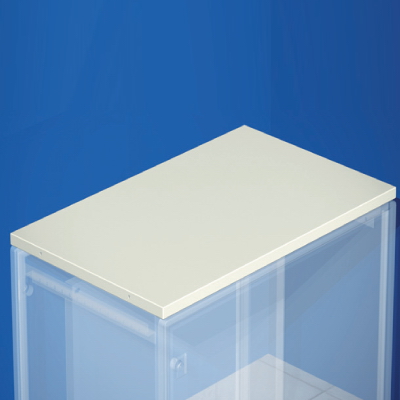

Cover for bases of CPV and consoles MPV, 1000 mm

Code: R5CV1000
Cover for bases of CPV and consoles MPV, 1000 mm
Cover for bases of CPV and consoles MPV, 1000 mm
Color gray
Width, mm 1000
Thickness, mm 1.5
Colour Grey
Width, mm 1000
Depth, mm 496
RAL-number 7035
With de-aeration No
Material Steel
Suitable for outdoor set-up No
Type of surface With powder coating
With cable feed-through No
Type of product Cover
Drawings
Seria Name DWG STEP DWG (dynamic blocks)
RAMblock - metal enclosures
Cover for the bases and consoles CPV MPV, 1000 mm
RAR
40.11 kB
RAR
1.59 MB
RAMblock - metal enclosures
A remote control console (dynamic blocks)
RAR
6.92 MB
Certificates
Name Document
RAM block - Exemption letter for enclosures RAM block_1
PDF
3.69 MB
RAM block - Exemption letter for accessories RAM block_1
PDF
742.54 kB
Test report on hinged welded cabinets ST_UHL1_1
PDF
196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"
PDF
5.99 MB
