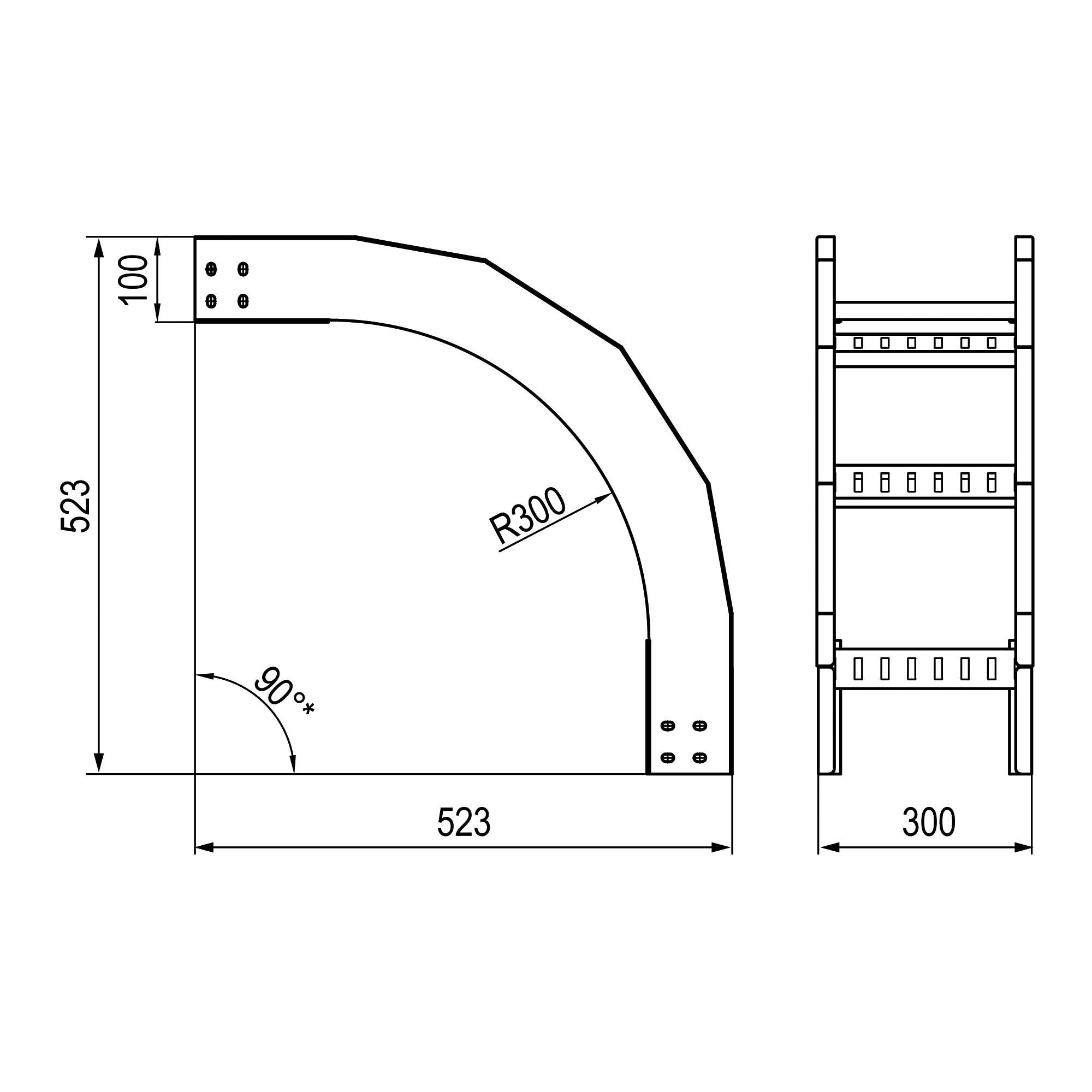

External vertical angle 90° 100x300, R300, included with fasteners (joint plates GTO, screws, nuts), thick. 1,5 mm, hot galvanizing method
Code: LIO1330KHDZ
External vertical angle 90° 100x300, R300, included with fasteners (joint plates GTO, screws, nuts), thick. 1,5 mm, hot galvanizing method
Code: LIO1330KHDZ
| Type of side joist | Profile (open) |
| Type of rung | Perforated profile |
| Deflection (angle) | 90° |
| Cable ladder height, mm | 100 |
| Cable ladder width, mm | 300 |
| Model | Included connector |
| Material | Steel |
| Material quality | Steel |
| Surface protection | Hot-dip galvanized |
| Colour | Light grey |
| Change of direction | Vertically descending |
| Product type | System accessories |
| Type of accessories | 90º vertical external bend |
| Width | 300 mm |
| Height | 100 mm |
| Material | Hot-dip galvanized |
