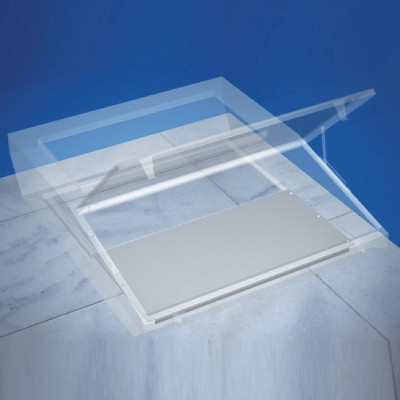

Mounting plate for the management consoles CN / VN, 800 mm

Code: R5PPM800

Surface protection	Zinc coated
Material	Steel

Color	gray
Raw material	Metal

Height, mm	800
Thickness, mm	2

Seria	Name	DWG	STEP	DWG (dynamic blocks)
RAMblock - metal enclosures	Installation fee for consoles Stack control SP/VN 800 mm	RAR 24.05 kB	RAR 1.51 MB
RAMblock - metal enclosures	A remote control console (dynamic blocks)			RAR 6.92 MB

Name	Document
RAM block - Exemption letter for accessories RAM block_1	PDF 742.54 kB
Test report on hinged welded cabinets ST_UHL1_1	PDF 196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"	PDF 5.99 MB
