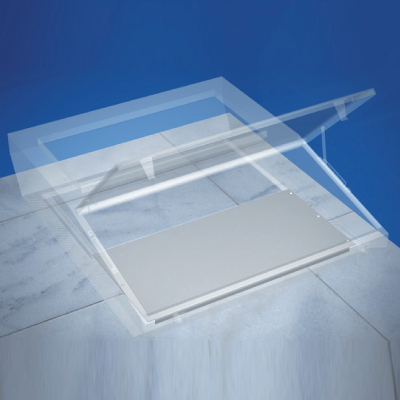

Mounting plate for the management consoles CN / VN, 1200 mm

Code: R5PPM1200
Mounting plate for the management consoles CN / VN, 1200 mm
Mounting plate for the management consoles CN / VN, 1200 mm
Width, mm 113
Height, mm 1200
Perforated No
Surface protection Zinc coated
Material Steel
Color gray
Raw material Metal
Height, mm 1200
Thickness, mm 2
Drawings
Seria Name DWG STEP DWG (dynamic blocks)
RAMblock - metal enclosures
Installation fee for consoles Stack management of the SP/INT 1200 mm
RAR
24.54 kB
RAR
1.56 MB
RAMblock - metal enclosures
A remote control console (dynamic blocks)
RAR
6.92 MB
Certificates
Name Document
RAM block - Exemption letter for accessories RAM block_1
PDF
742.54 kB
Test report on hinged welded cabinets ST_UHL1_1
PDF
196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"
PDF
5.99 MB
