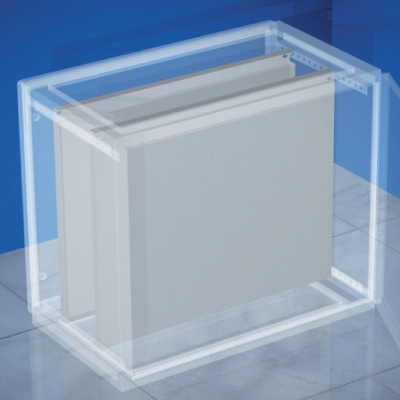

Mounting plate, extra, for bases racks CN / VN, H = 1200 mm

Code: R5PC1200

Color	gray
Material	Steel

Height, mm	1200
Thickness, mm	2

Surface protection	Zinc coated
Material	Steel

Seria	Name	DWG	STEP	DWG (dynamic blocks)
RAMblock - metal enclosures	Installation fee, additional base stock JV/VN B=1200mm	RAR 23.28 kB	RAR 17.59 kB
RAMblock - metal enclosures	A remote control console (dynamic blocks)			RAR 6.92 MB

Name	Document
RAM block - Exemption letter for accessories RAM block_1	PDF 742.54 kB
Test report on hinged welded cabinets ST_UHL1_1	PDF 196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"	PDF 5.99 MB
