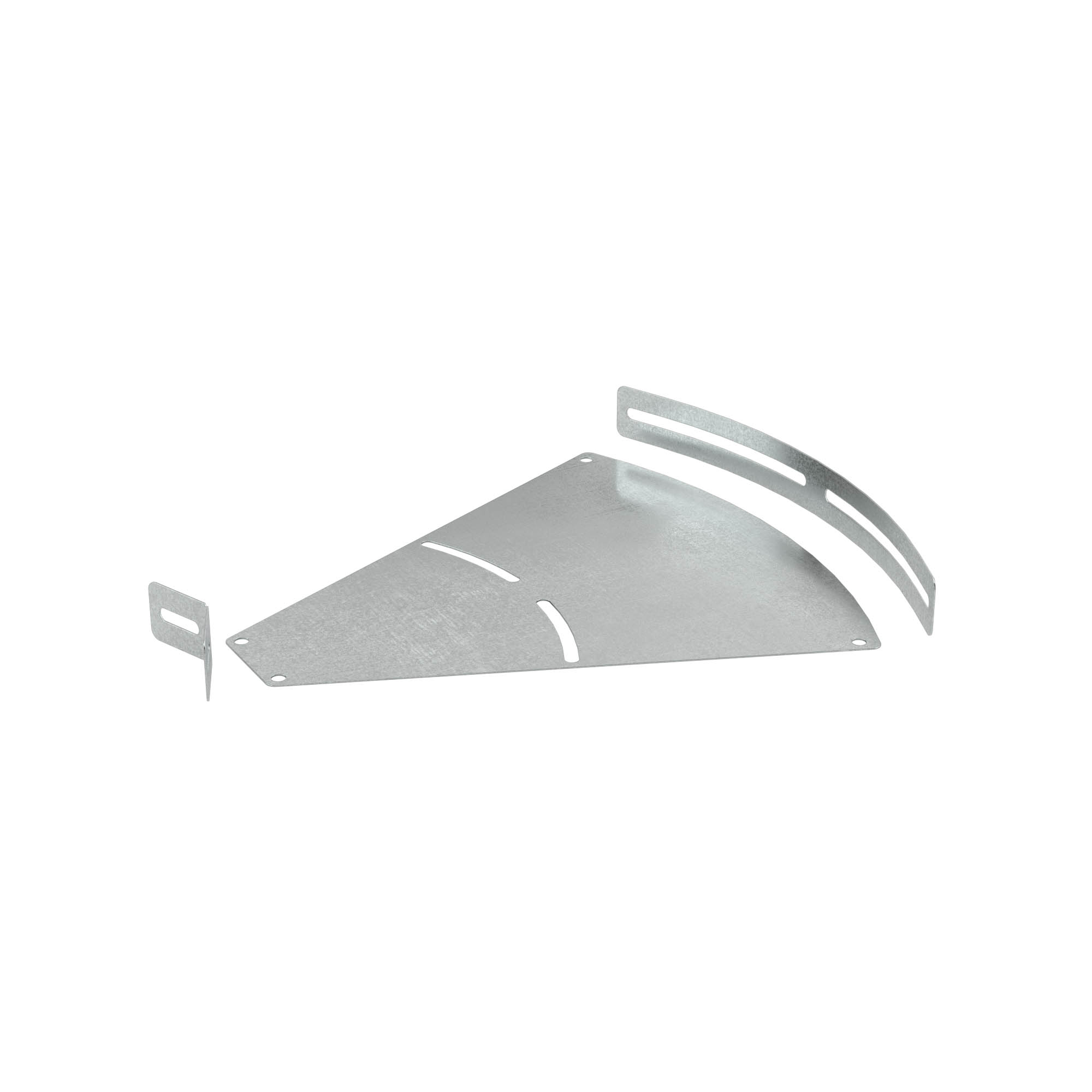

Variable Angle Elbow 0-45° 300x50, thickness 2 mm, included with fasteners, zinc lamellar coating

Code: SVH530KHDZL
Variable Angle Elbow 0-45° 300x50, thickness 2 mm, included with fasteners, zinc lamellar coating
Variable Angle Elbow 0-45° 300x50, thickness 2 mm, included with fasteners, zinc lamellar coating
Code: SVH530KHDZL
  • To ask a question
  • Characteristics
  • Analogs
  • Promo
  • Viewed items
Model Included connector
Material thickness, mm 2
Deflection (angle) Adjustable
Material quality Steel
Material Steel
Cable tray width, mm 300
Cable tray height, mm 50
Surface protection Zinc lamellar coating
Suitable for circuit integrity Yes
Change of direction Horizontal
With cover No
Bend model Smooth bend
Product type System accessories
Type of accessories Horizontal variable angle angle CPO 0-45
Height 50 mm
Thickness 2.0 mm
Material Zinc-lamellated steel
Width 300 mm
