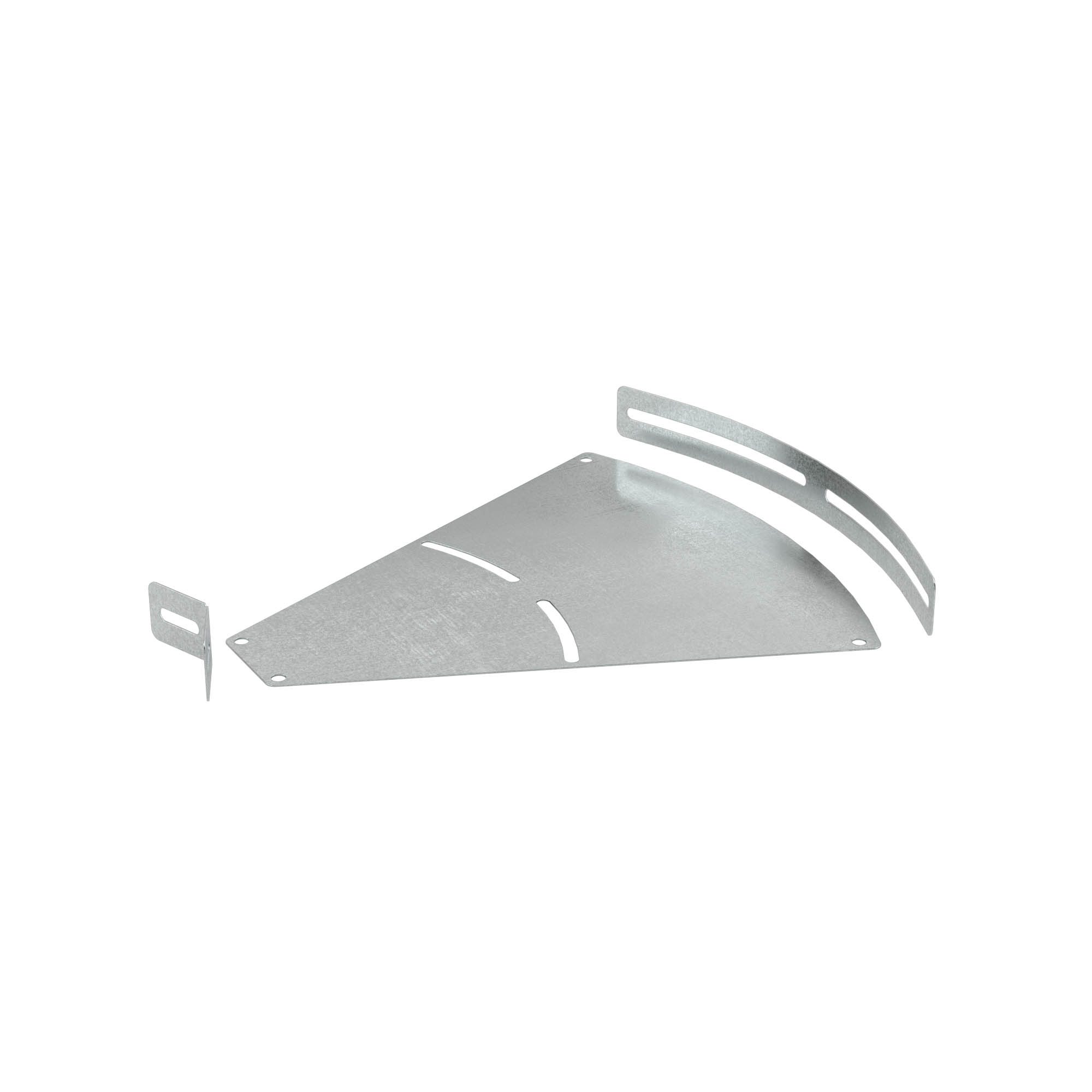

Variable Angle Elbow 0-45° 100x50, thickness 2 mm, included with fasteners, zinc lamellar coating

Code: SVH510KHDZL
Variable Angle Elbow 0-45° 100x50, thickness 2 mm, included with fasteners, zinc lamellar coating
Variable Angle Elbow 0-45° 100x50, thickness 2 mm, included with fasteners, zinc lamellar coating
Code: SVH510KHDZL
  • To ask a question
  • Characteristics
  • Accessories
  • Analogs
  • Promo
  • Viewed items
Model Included connector
Material thickness, mm 2
Deflection (angle) Adjustable
Material quality Steel
Material Steel
Cable tray width, mm 100
Cable tray height, mm 50
NATO-mounting holes Yes
Surface protection Zinc lamellar coating
Stainless steel, pickled Yes
Wide span model Yes
Suitable for circuit integrity Yes
Change of direction Horizontal
Product type System accessories
Type of accessories Horizontal adjustable angle 0-45 degrees
Width 100 mm
Height 50 mm
Material Hot-dip galvanized
