| Model | Included connector |
| Material thickness, mm | 1.2 |
| Deflection (angle) | 90° |
| Material quality | Steel |
| Material | Steel |
| Cable tray width, mm | 150 |
| Cable tray height, mm | 100 |
| Surface protection | Zinc lamellar coating |
| Suitable for circuit integrity | Yes |
| With cover | No |
| Bend model | Smooth bend |
| Product type | System accessories |

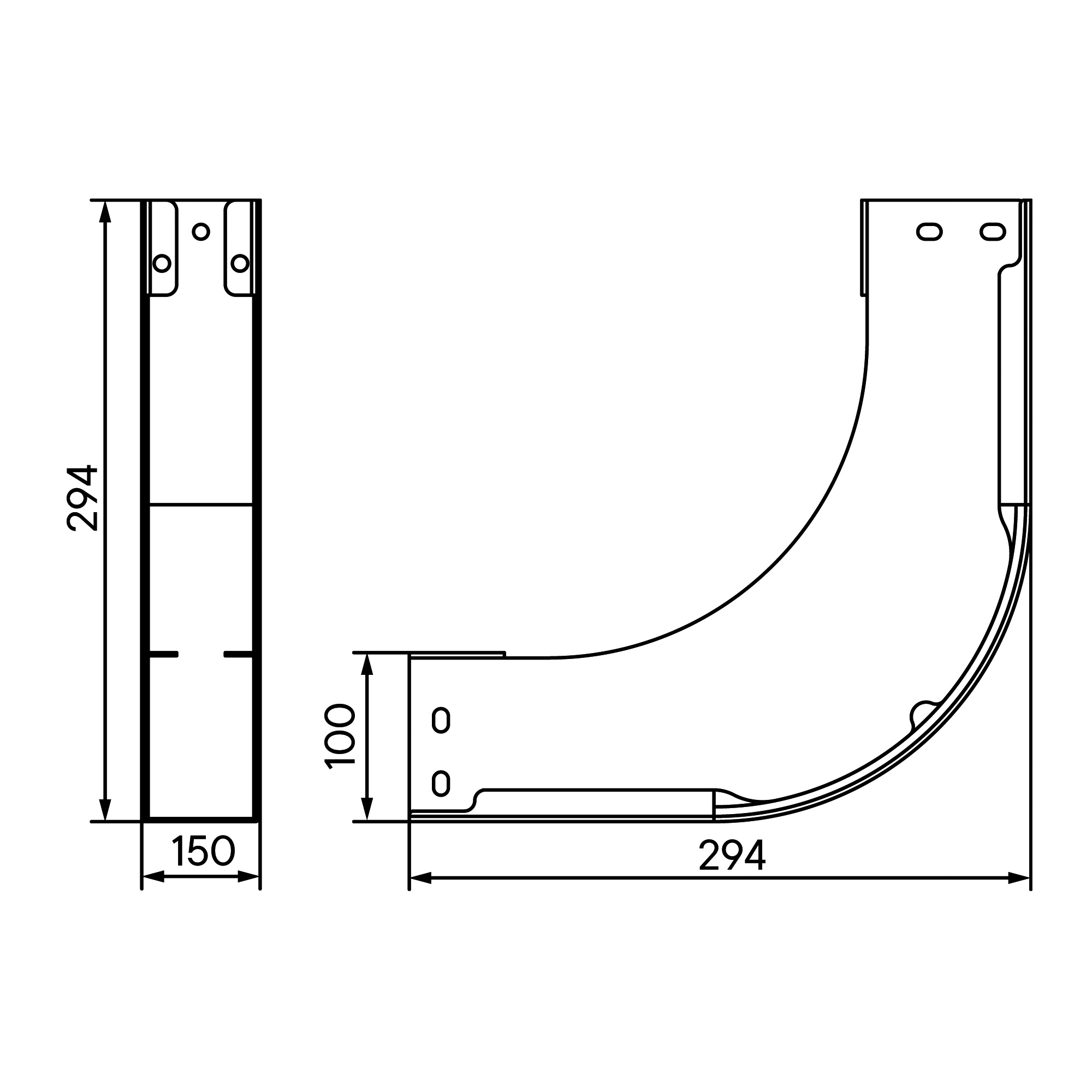

| Type of accessories | 90º vertical inner bend |
| Height | 100 mm |
| Thickness | 1.2 mm |
| Material | Zinc-lamellated steel |
| Width | 150 mm |
