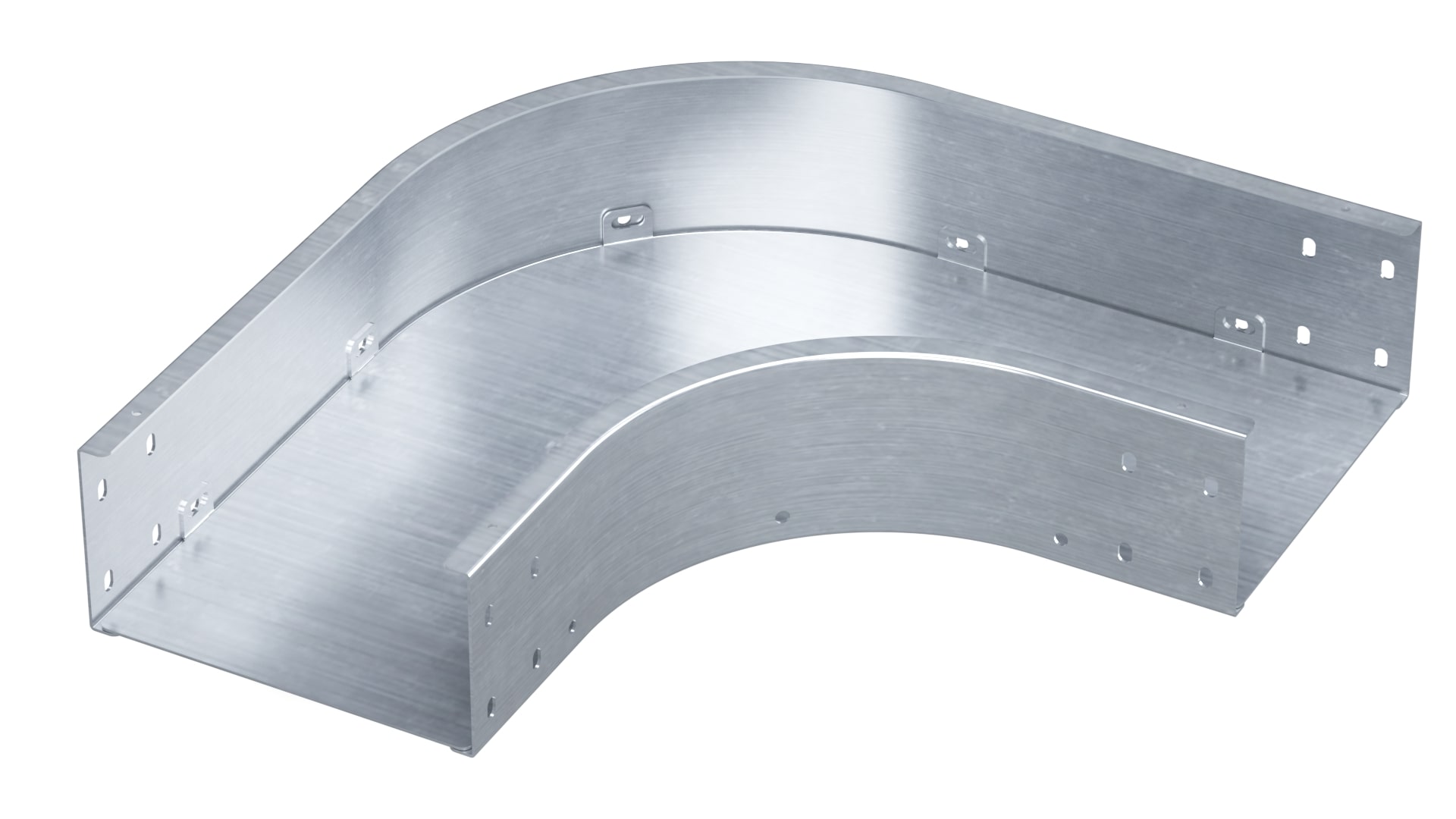

CPO 90 horizontal angle 50x100, 1,2 mm, ZL included with fasteners (joint plates GTO, screws, nuts)
Code:
SDN510KZL
Code:
SDN510KZL
| Colour | Light grey |
| Model | Included connector |
| Material thickness, mm | 1.2 |
| Deflection (angle) | 90° |
| Material quality | Steel |
| Material | Steel |
| Cable tray width, mm | 100 |
| Cable tray height, mm | 50 |
| NATO-mounting holes | Нет |
| Surface protection | Continuously galvanized zinc-aluminium |
| Stainless steel, pickled | Нет |
| Wide span model | Нет |
| Suitable for circuit integrity | Нет |
| Product type | System accessories |
| Type of accessories | 90º Horizontal bend |
| Width | 100 mm |
| Height | 50 mm |
| Material | Zinc-lamellated steel |
