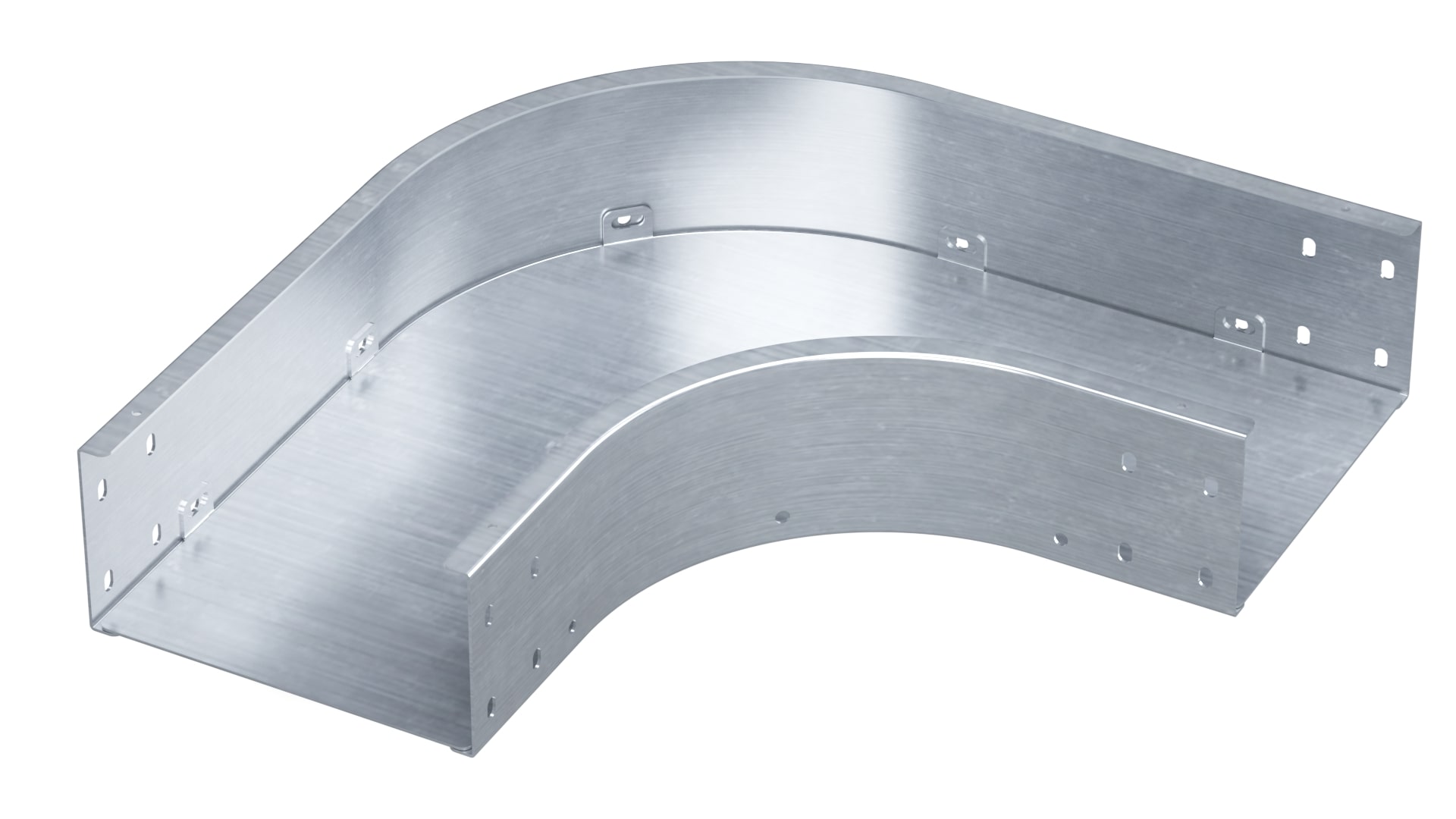

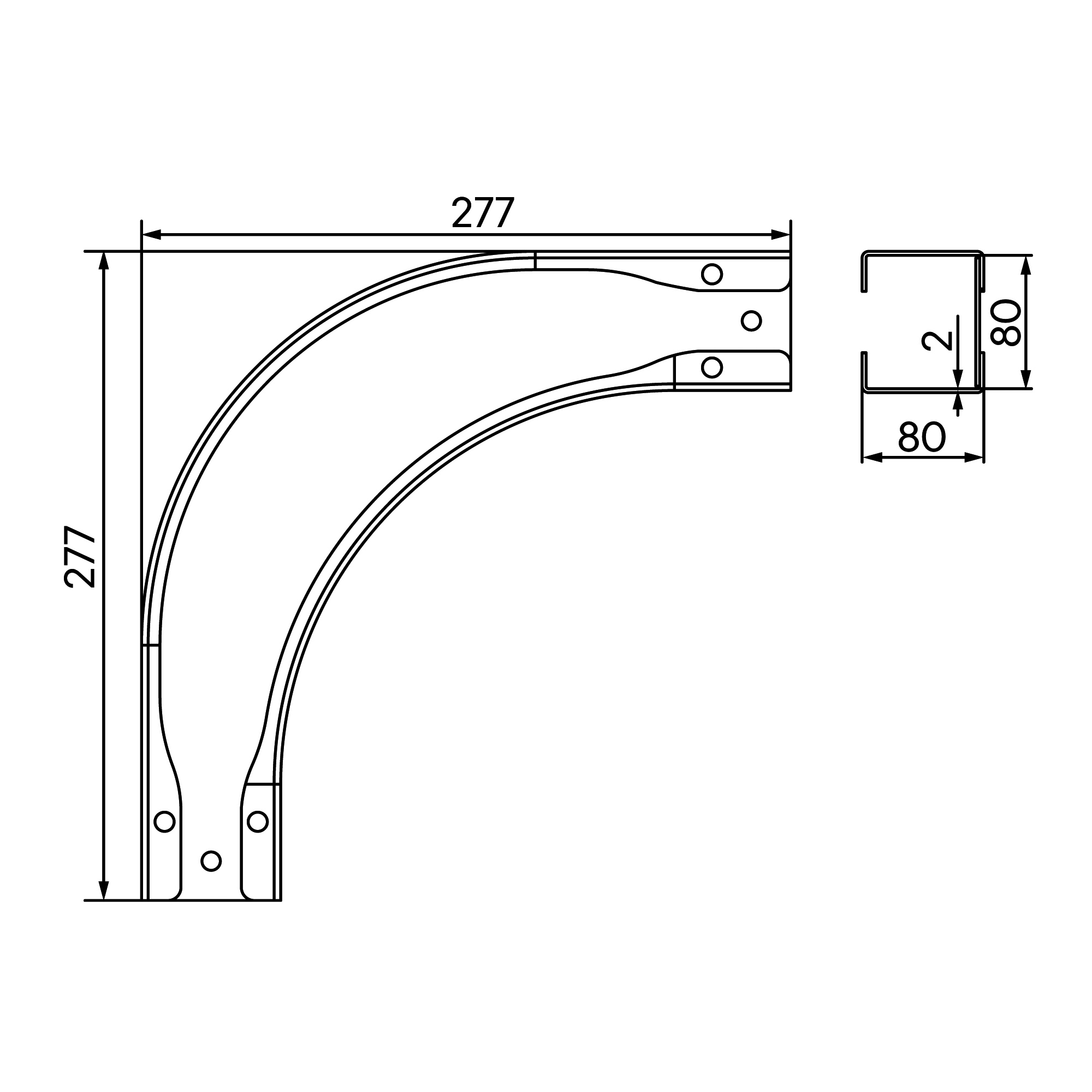

CPO 90 horizontal angle 80x80, 2,0 mm, ZL included with fasteners (joint plates GTO, screws, nuts)
Code:
SDH808KZL
Code:
SDH808KZL
| Model | Included connector |
| Material thickness, mm | 2 |
| Deflection (angle) | 90° |
| Material quality | Steel |
| Material | Steel |
| Cable tray width, mm | 80 |
| Cable tray height, mm | 80 |
| NATO-mounting holes | No |
| Surface protection | Continuously galvanized zinc-aluminium |
| Stainless steel, pickled | No |
| Wide span model | No |
| Suitable for circuit integrity | No |
| Product type | System accessories |
| Type of accessories | 90º Horizontal bend |
| Width | 80 mm |
| Height | 80 mm |
| Material | Zinc-lamellated steel |
