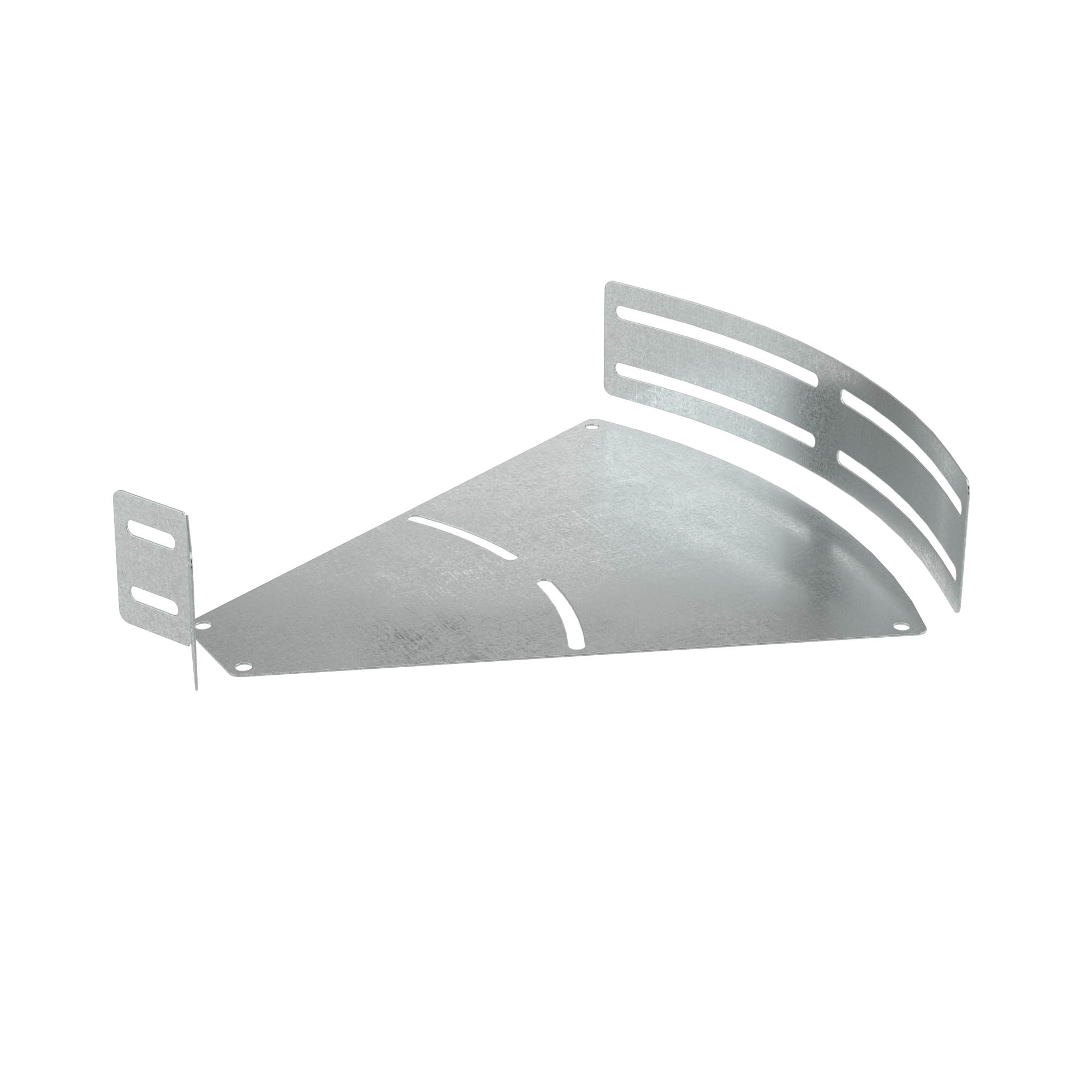

Variable Angle Elbow 0-45° 100x95 thick1,2 mm, included with fasteners, zinc lamellar coating
Code: SVN820KHDZL
Variable Angle Elbow 0-45° 100x95 thick1,2 mm, included with fasteners, zinc lamellar coating
Code: SVN820KHDZL
| Colour | Light grey |
| Model | Included connector |
| Material thickness, mm | 1.2 |
| Deflection (angle) | Adjustable |
| Material quality | Steel |
| Material | Steel |
| Cable tray width, mm | 200 |
| Cable tray height, mm | 80 |
| NATO-mounting holes | Yes |
| Surface protection | Zinc lamellar coating |
| Stainless steel, pickled | Yes |
| Wide span model | Yes |
| Suitable for circuit integrity | Yes |
| Change of direction | Horizontal |
| Product type | System accessories |
| Type of accessories | Horizontal variable angle angle CPO 0-45 |
| Height | 80 mm |
| Thickness | 1.2 mm |
| Material | Zinc-lamellated steel |
| Width | 200 mm |
